The Hager QuickConnect neutral terminal with 10 connections provides fast, tool-free wiring and reliable neutral distribution in switchboards. Rated 63 A with 400 V insulation, it suits residential and commercial panels. Blue PA (RAL 5002) ensures clear neutral identification. Accepts 1.5-25 mm² solid or flexible conductors. Compact (33×45×34 mm), it saves space while delivering secure, maintenance-free spring connections.
EAN
3250613849122
Packaging
1 Piece
Earth terminal QuickConnect 18 connections 63A 1P spring clamp KN10N
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for terminals 1 products available -
Cross-connector for terminal block 1 products available
Compatible products
-
Referenced by 34 products available
Referenced by
-
VF312PFSmall distributor, golf, flush, 3row, 36M, IP40, MS-terminal, PE, white door
-
VE110PNEnclosure, vector, flush mounted, IP65, 10M, UV-stable, with metric cable entry
-
VE112PNEnclosure, vector, surface mounted, IP65, 1x12M, UV stable, with metric cable entry
-
VE212PNEnclosure vector, surface mounted, IP65, 2x12M, UV-stable, with metric cable entry
-
VE312PNEnclosure, vector, surface mounted, IP65, 36M, UV stable, with metric cable entry
-
VE412PNEnclosure, vector, surface mounted, IP65, 48M, UV stable, with metric cable entry
-
VE118PNEnclosure, vector, surface mounted, IP65, 18M, UV stable, with metric cable entry
-
VE218PNEnclosure, vector, surface mounted, IP65, 36M, UV stable, with metric cable entry
-
VE318PNEnclosure, vector, surface mounted, IP65, 54M, UV-stable, with metric cable entry
-
VE106PNEnclocure, vector, flush mounted, IP65, 6M, UV stable, with metric cable entry
-
VS112PFSmall distributor, golf, surface, 1row, IP40, 12M, MS-terminal, PE, white door
-
VS212PFSmall distributor, golf, surface, 2row, IP40, 24M, MS-terminal, PE, white door
-
VF212PFSmall distributor, golf, flush, 2row, 24M, IP40, MS-terminal, PE, white door
-
GZ30ATerminal carrier, gamma, for Quick Connect
-
VF212PF
Small distributor, golf, flush, 2row, 24M, IP40, MS-terminal, PE, white door
-

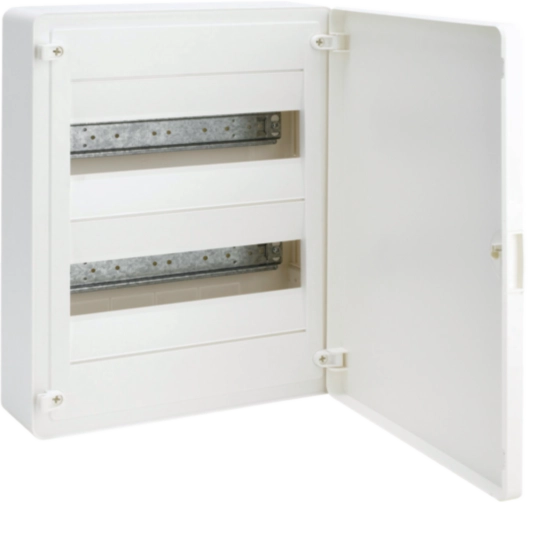

VS212PF
Small distributor, golf, surface, 2row, IP40, 24M, MS-terminal, PE, white door
-
VF312PF
Small distributor, golf, flush, 3row, 36M, IP40, MS-terminal, PE, white door
-
VE112SNEnclosure, vector, surface mounted, IP65, 1x12M, UV stable, without cable entry
-
VZ710Terminal base, golf, VB FD, accessory, for QC terminal
-
VZ707NTerminal base, golf, QC terminal, for VF/VS 12 M
Technical properties
Electric current
-
Rated current63 A
Architecture
-
Number of poles1
-
Type of pole1P
Dimensions
-
Height33 mm
-
Width45 mm
-
Depth34 mm
Voltage
-
Nominal voltage230 - 230 V
-
Rated insulation voltage Ui400 V
Materials
-
ColourBlue
-
MaterialPolyamide (PA)
-
RAL code5002
Connectivity
-
Type of connectionFeather/spring course connection
Connection
-
Cross-section of input and output with screws, for flexible conductors1.5 - 25.0 mm²
-
Cross-section of input and output with screws, for massive conductors1.5 - 25.0 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

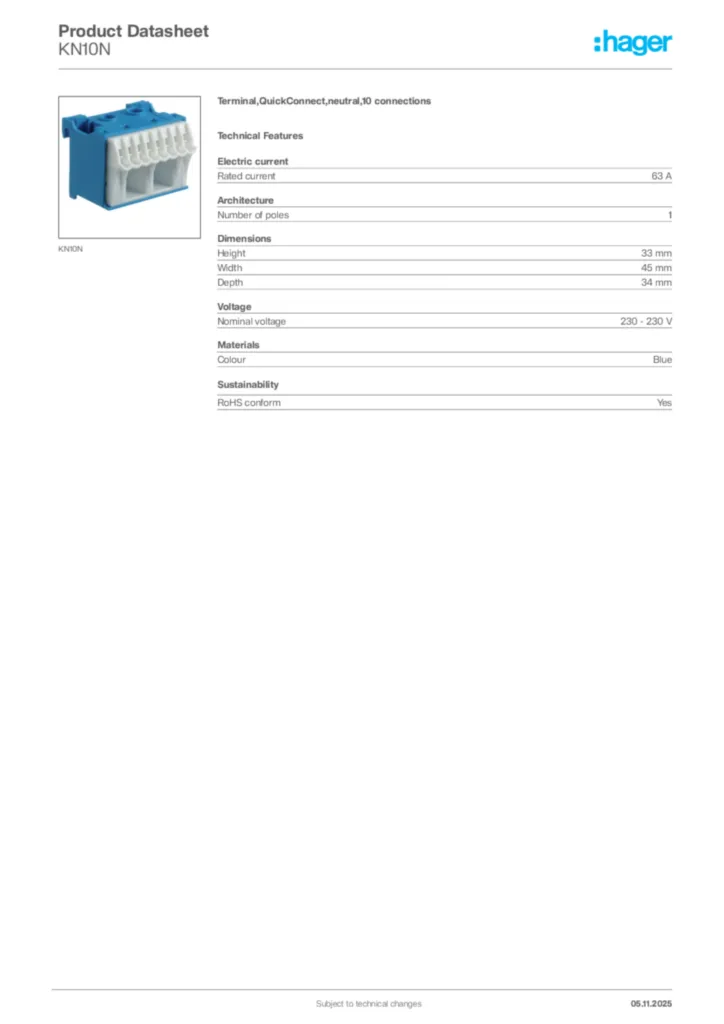

Hager Product data sheet KN10N
