The Hager Vector surface-mounted IP65 enclosure ensures reliable outdoor distribution up to 63A. UV-stable polycarbonate (RAL7035) with Class II insulation and 850°C glow-wire rating for durability. Offers 36 modules on 2 rows/2 rails behind a transparent single door. Supplied without pre-fitted cable entries, includes 15 conduit inlets. Rated 400V AC/1000V DC, ideal for residential, commercial and PV uses.
EAN
3250616450493
Packaging
1 Piece
Enclosure Vector Surface mounted IP65 1x18M UV-stable Transparent door VE218SN
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cable gland 8 products available -
Push-in terminal 20 products available -
Gland plate for enclosure 1 products available -
Cover strip 2 products available -
Cleaning product 1 products available -
Accessories/spare parts for terminals 5 products available
Complete your system
-
VZ016M
Cable gland, vector, IP65, M16, plastic
-
VZ020MCable gland, vector, IP65, M20, plastic
-
VZ025MCable gland, vecor, IP65, M25, plastic
-
VZ032MCable gland, vector, IP65, M32, plastic
-
VZ040MCable gland, vector, IP65, M40, plastic
-
VZ020DPressure balance screw joint, vector, IP66, M20
-
VZ025DPressure balance screw joint, vector, IP66, M25
-
VZ032DPressure balance screw joint, vector, IP66, M32
-
KN10ETerminal, QuickConnect, earth, 10 connections
-
KN06PTerminal, QucikConnect, phase, 6 connections
-
KN10PTerminal, QuickConnect, phase, 10 connections
-
KN14PTerminal, QuickConnect, phase, 14 connections
-
KN18PTerminal, QuickConnect, phase, 18 connections
-
KN22PTerminal, QuickConnect, phase, 22 connections
-
KN26PTerminal, QuickConnect, phase, 26 connections
-
KN99PTerminal, QC, phase, jumper, 1 Set=10piece
-
KN06ETerminal, QC, earth, 6 connections
-
KN06NTerminal, QuickConnect, neutral, 6 connections
-
KN99E
Terminal, QC, earth, jumper, 1 Set=10piece
-
KN10NTerminal, QuickConnect, neutral, 10 connections
-
KN14ETerminal, QuickConnect, earth, 14 connections
-
KN14NTerminal, QuickConnect, neutral, 14 connections
-
KN18ETerminal, QuickConnect, earth, 18 connections
-
KN18NTerminal, QuickConnect, neutral, 18 connections
-
KN22ETerminal, QuickConnect, earth, 22 connections
-
KN22NTerminal, QuickConnect, neutral, 22 connections
-
KN26ETerminal, QuickConnect, earth, 26 connections
-
KN26NTerminal, QuickConnect, neutral, 26 connections
Technical properties
Connection
-
Number of conduit inlets15
Voltage
-
Nominal voltage400 - 400 V
-
Rated operational voltage in DC1000 - 1000 V
Installation, mounting
-
Suitable for outdoor usageYes
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails2
-
Number of rows2
-
Number of section in width1
-
With lockNo
-
Has mounting plateNo
Capacity
-
Number of modules36
Functions
-
With conduit inletsYes
Dimensions
-
Height452 mm
-
Width418 mm
-
Depth151 mm
-
Number of width units18
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialPolycarbonate (PC)
-
RAL code7035
-
ColourLight grey
-
Ultraviolet-resistantYes
Safety
-
Protection classIsolation class II
-
Ingress Protection (IP) classIP65
-
Locking typeSnap on lock, Without lock
-
Glow wire test850 °C
-
Protection class with doorIP65
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

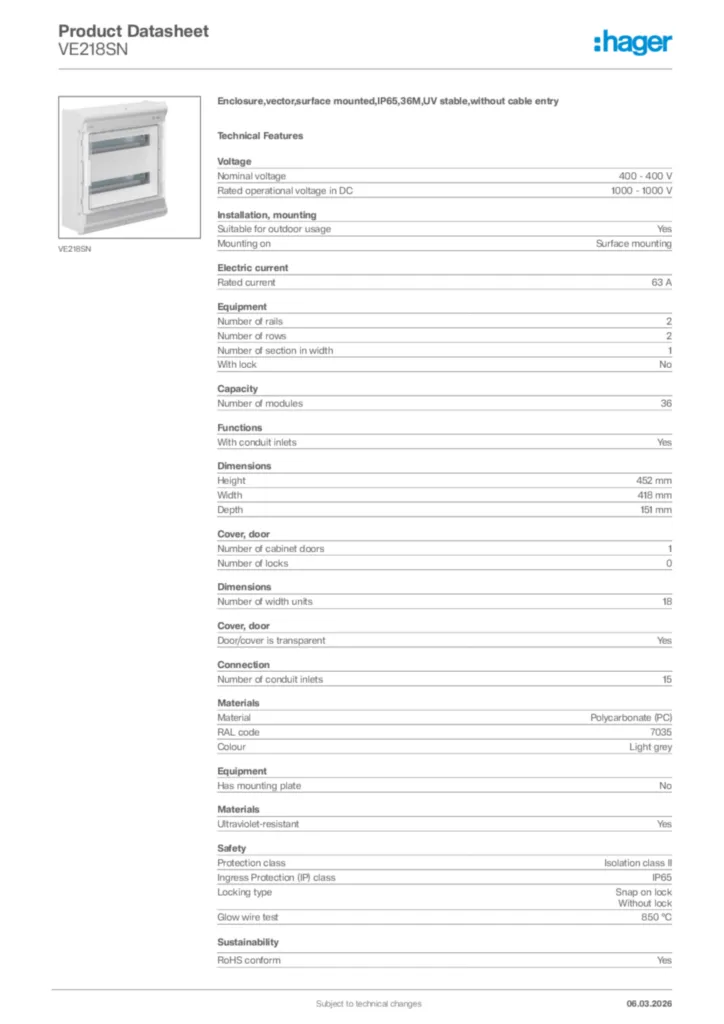

Product datasheet
Hager Product data sheet VE218SN
Enclosure,vector,surface mounted,IP65,36M,UV stable,without cable entry
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-14
PDF257,02 kB
Declaration
Declaration of conformity International 2022-12-19
PDF258,36 kB
More documentation
