    • KN26E
    The Hager QuickConnect earth terminal block with 26 connections delivers fast, tool-free grounding for distribution boards. Rated 63 A with Ui 400 V, it accepts 1.5-25 mm² solid or flexible conductors via spring terminals. Compact (33×105×34 mm) in durable polyamide and RAL 6032 for clear earth identification, it ensures reliable continuity and saves wiring time in residential and commercial panels.
    EAN
    3250613849061
    Packaging
    1 Piece
    • Accessories and connec­tions

    Neutral terminal bar QuickConnect 63A 26-way spring connection KN26E

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Neutral terminal bar QuickConnect 63A 26-way spring connection

    KN26E

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Push-in terminal 1 products available

    Compatible products

    • Referenced by 17 products available

    Complete your system

    • Push-in terminal
    • KN99E

      Terminal, QC, earth, jumper, 1 Set=10piece

      €0.00  / *

    Referenced by

    • VE312SN

      Enclosure, vector, surface mounted, IP65, 36M, UV stable, without cable entry

      €0.00  / *
    • VF112PF

      Small distributor, golf, flush, 1row, 12M, IP40, MS-terminal, PE, white door

      €0.00  / *
    • VF212PF

      Small distributor, golf, flush, 2row, 24M, IP40, MS-terminal, PE, white door

      €0.00  / *
    • VF312PF

      Small distributor, golf, flush, 3row, 36M, IP40, MS-terminal, PE, white door

      €0.00  / *
    • VE412PN

      Enclosure, vector, surface mounted, IP65, 48M, UV stable, with metric cable entry

      €0.00  / *
    • VE312PN

      Enclosure, vector, surface mounted, IP65, 36M, UV stable, with metric cable entry

      €0.00  / *
    • VE212PN

      Enclosure vector, surface mounted, IP65, 2x12M, UV-stable, with metric cable entry

      €0.00  / *
    • VE218SN

      Enclosure, vector, surface mounted, IP65, 36M, UV stable, without cable entry

      €0.00  / *
    • VE118SN

      Enclosure, vector, surface mounted, IP65, 1x18M, UV-stable, without cable entry

      €0.00  / *
    • VZ711

      Temrinal base, volta, for distributor size 12M, golf, vector, accessory

      €0.00  / *
    • VE212SN

      Enclosure, vector, surface mount, IP65, 2x12M, UV stable, without cable entry

      €0.00  / *
    • VE112SN

      Enclosure, vector, surface mounted, IP65, 1x12M, UV stable, without cable entry

      €0.00  / *
    • VE110SN

      Enclsoure, vector, flush mounted, IP65, 10M, UV-stable, without cable entry

      €0.00  / *
    • GZ40A

      Terminal carrier, gamma, for SSK

      €0.00  / *
    • VZ705N

      Terminal base, golf, QC terminal, for VF/VS 4 M

      €0.00  / *
    • VZ707N

      Terminal base, golf, QC terminal, for VF/VS 12 M

      €0.00  / *
    • VZ710

      Terminal base, golf, VB FD, accessory, for QC terminal

      €0.00  / *

    Technical properties

    Elec­tric current
    • Rated current IN
      63 A
    Archi­tec­ture
    • Number of poles
      1
    • Type of pole
      1P
    Dimen­sions
    • Height
      33 mm
    • Width
      105 mm
    • Depth
      34 mm
    Voltage
    • Nominal voltage
      230 - 230 V
    • Rated insu­la­tion voltage Ui
      400 V
    Mater­ials
    • Material
      Poly­amide (PA)
    • RAL code
      6032
    Connectivity
    • Type of connec­tion
      Feather­/s­pring course connec­tion
    Connec­tion
    • Cross-sec­tion of top and bottom terminal with screws, for flex­ible conductors
      1.5 - 25.0 mm²
    • Cross-sec­tion of top and bottom terminal with screws, for rigid conductors
      1.5 - 25.0 mm²

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP - Branch terminal,universZ,5p,2x25/2x16mm² (English)
    PDF
    364,84 kB
    REACH declaration KN26E
    PDF
    RoHS report KN26E
    PDF

    Downloads

    • Image KN26E  | Hager Africa

      Product Image KN26E

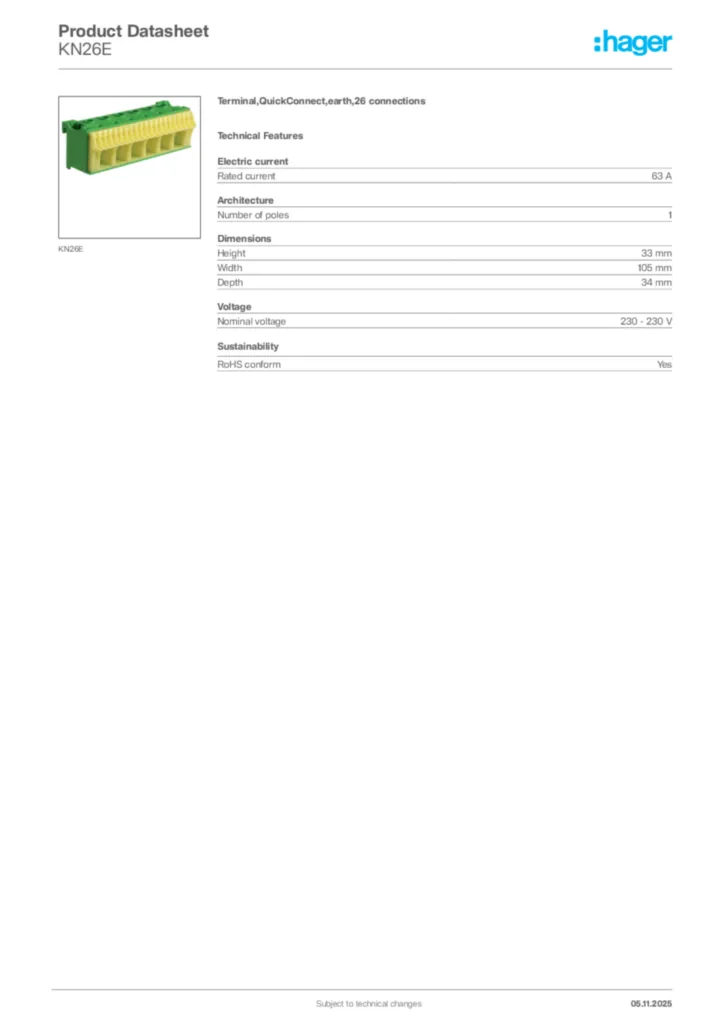

    • Product datasheet

      Image Hager Product data sheet KN26E  | Hager Africa

      Hager Product data sheet KN26E

      Terminal,QuickConnect,earth,26 connections

      PDF
    • Declaration of conformity

      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2022-11-16

      PDF
      200,90 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2023-02-06

      PDF
      217,42 kB
      Image Declaration  | Hager Africa

      Declaration

      Declaration of conformity International 2021-04-26

      PDF
      100,30 kB
      Image Declaration of conformity en-GB 2026-07-22  | Hager Africa

      Declaration of conformity en-GB 2026-07-22

      PDF
      1,07 MB
