The Hager QuickConnect neutral terminal with 6 connections streamlines neutral distribution in panels. Rated 63 A at 230 V with 400 V insulation, it ensures reliable, vibration‑resistant spring connection for fast, tool‑free wiring. Compact (33×30×34 mm) and durable polyamide (RAL 5002) construction saves space while delivering secure, low‑maintenance terminations for residential and commercial installations.
EAN
3250613849115
Packaging
1 Piece
Earth terminal block QuickConnect 10 connections 63A spring 1P KN06N
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for terminals 1 products available -
Cross-connector for terminal block 1 products available
Compatible products
-
Referenced by 34 products available
Referenced by
-
VF312PFSmall distributor, golf, flush, 3row, 36M, IP40, MS-terminal, PE, white door
-
VE110PNEnclosure, vector, flush mounted, IP65, 10M, UV-stable, with metric cable entry
-
VE112PNEnclosure, vector, surface mounted, IP65, 1x12M, UV stable, with metric cable entry
-
VE212PNEnclosure vector, surface mounted, IP65, 2x12M, UV-stable, with metric cable entry
-
VE312PNEnclosure, vector, surface mounted, IP65, 36M, UV stable, with metric cable entry
-
VE412PNEnclosure, vector, surface mounted, IP65, 48M, UV stable, with metric cable entry
-
VE118PNEnclosure, vector, surface mounted, IP65, 18M, UV stable, with metric cable entry
-
VE218PNEnclosure, vector, surface mounted, IP65, 36M, UV stable, with metric cable entry
-
VE318PNEnclosure, vector, surface mounted, IP65, 54M, UV-stable, with metric cable entry
-
VE106PNEnclocure, vector, flush mounted, IP65, 6M, UV stable, with metric cable entry
-
VS112PFSmall distributor, golf, surface, 1row, IP40, 12M, MS-terminal, PE, white door
-
VS212PFSmall distributor, golf, surface, 2row, IP40, 24M, MS-terminal, PE, white door
-
VF212PFSmall distributor, golf, flush, 2row, 24M, IP40, MS-terminal, PE, white door
-
GZ30ATerminal carrier, gamma, for Quick Connect
-
VF212PF
Small distributor, golf, flush, 2row, 24M, IP40, MS-terminal, PE, white door
-
VS212PF
Small distributor, golf, surface, 2row, IP40, 24M, MS-terminal, PE, white door
-
VF312PF
Small distributor, golf, flush, 3row, 36M, IP40, MS-terminal, PE, white door
-
VE112SNEnclosure, vector, surface mounted, IP65, 1x12M, UV stable, without cable entry
-
VZ710Terminal base, golf, VB FD, accessory, for QC terminal
-
VZ707NTerminal base, golf, QC terminal, for VF/VS 12 M
Technical properties
Electric current
-
Rated current63 A
Dimensions
-
Height33 mm
-
Width30 mm
-
Depth34 mm
Voltage
-
Nominal voltage230 - 230 V
-
Rated insulation voltage Ui400 V
Materials
-
ColourBlue
-
MaterialPolyamide (PA)
-
RAL code5002
Connectivity
-
Type of connectionFeather/spring course connection
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

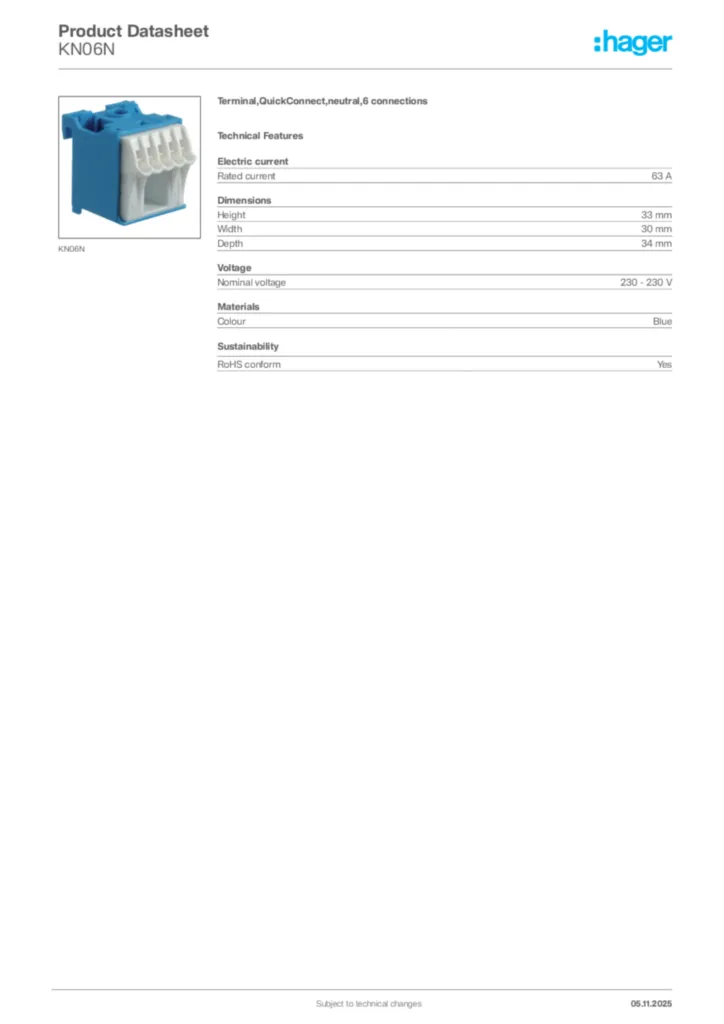

Product datasheet

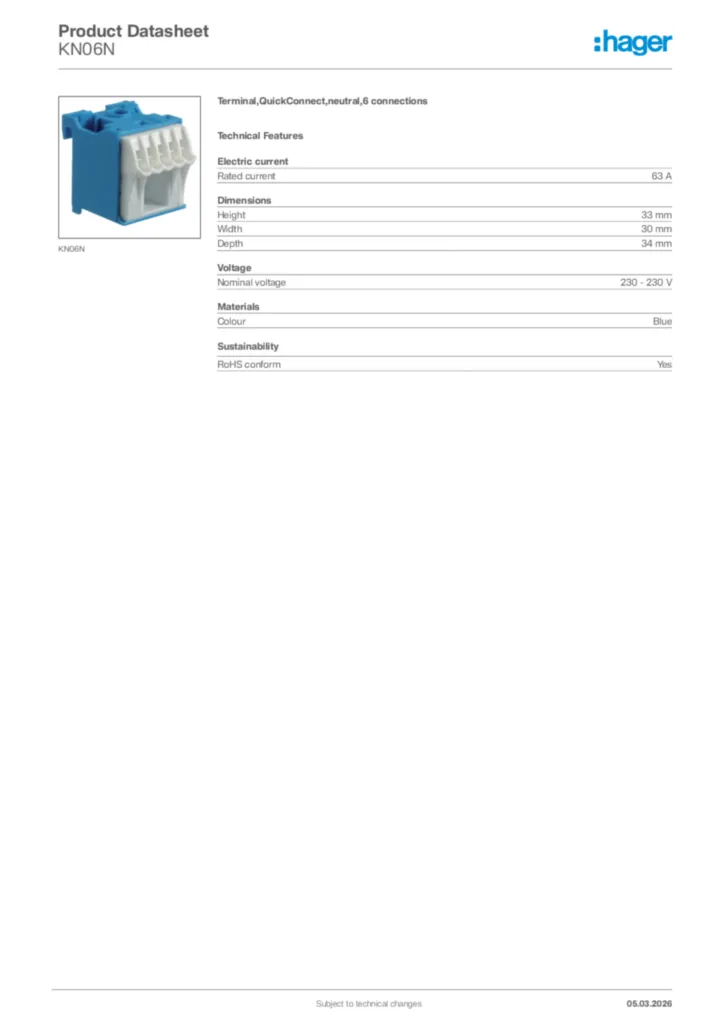

Hager Product data sheet KN06N
Terminal,QuickConnect,neutral,6 connections
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-05-12
PDF332,34 kB
Declaration
Declaration of conformity International 2022-11-16
PDF200,90 kB
Declaration
Declaration of conformity International 2021-04-26
PDF100,30 kB
Declaration
Declaration of conformity International 2023-02-06
PDF217,42 kB
More documentation
