    • Home
    • Catalog
    • Cable routing and room connec­tion systems
    • Cable trunking systems
    • Cable trunking systems - LF
    • LFF6009009016
    EAN
    4012740013307
    Packaging
    16 Meters
    • Cable trunking systems - LF
    • Cable trunking system - LFF
    • See more

    Trunking LFF 60x90mm with coupling and 2 cable clips traffic white LFF6009009016

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Trunking LFF 60x90mm with coupling and 2 cable clips traffic white

    LFF6009009016

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (12)
    • Cable clip/re­tainer for install­a­tion duct 1 products available
    • Parti­tion for install­a­tion duct 1 products available
    • Joint cover for install­a­tion duct 2 products available
    • End piece for install­a­tion duct 1 products available
    • Face plate for wall duct 2 products available
    • Surface mounting plate/sup­port install­a­tion duct 1 products available

    Complete your system

    • Cable clip/re­tainer for install­a­tion duct
    • Parti­tion for install­a­tion duct
    • Joint cover for install­a­tion duct
    • End piece for install­a­tion duct
    • Face plate for wall duct
    • Surface mounting plate/sup­port install­a­tion duct
    • Internal corner for install­a­tion duct
    • External corner for install­a­tion duct
    • Flat angle for install­a­tion duct
    • T-piece for install­a­tion duct
    • M7248

      Cable retainer, LF/LFP B=90mm
      0.00 €  / *
    • M2026

      partition LF H60
      0.00 €  / *
    • LFF60J9016

      Joint cover for base LF/LFF height 30/40/60mm traffic white
      0.00 €  / *
    • LFF09079016

      Joint cover lid for tehalit.LF/LFF width=90mm traffic white
      0.00 €  / *
    • LFF6009069016

      endcap halogen free for trunking LF/LFF/LFH (40, 60)x90mm traffic white
      0.00 €  / *
    • LFF71H0909016

      1 gang 45x45 mm support LFF40/60090 traffic white
      0.00 €  / *
    • LFF72H0909016

      2 gangs 45 x 45 mm support for LFF 40/60090 traffic white
      0.00 €  / *
    • LFF71U0909016

      60 mm support for LFF40/60090 traffic white
      0.00 €  / *
    • LFF6009049016

      internal corner halogen free for trunking LF/LFF/LFH 60x90mm traffic white
      0.00 €  / *
    • LFF6009039016

      external corner halogen free for trunking LF/LFF/LFH 60x90mm traffic white
      0.00 €  / *
    • LFF6009059016

      flat angle overlapping halogen free for LF/LFF/LFH 60x90mm traffic white
      0.00 €  / *
    • LF6009089016

      T-piece halogen free for trunking LF/LFH 60x90mm traffic white
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      60 mm
    • Width
      90 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      4550 - 4550 mm²
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      23
    Mater­ials
    • Material
      Polyvinyl­chloride (PVC)
    • Treat­ment
      Untreated
    • RAL code
      9016
    • Colour
      Traffic white
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Connectivity
    • Trunking coup­ling
      Pre-equipped with couplers
    Equip­ment
    • Number of parti­tions
      0
    • Number of compart­ments
      1 - 1
    • Number of plug­gable parti­tions
      1
    • Cable retaining clip included
      Yes
    • With protective film
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    REACH declaration LFF6009009016
    PDF
    RoHS report LFF6009009016
    PDF

    Downloads

    • Image LFF6009009016 | Hager Africa

      Product Image LFF6009009016

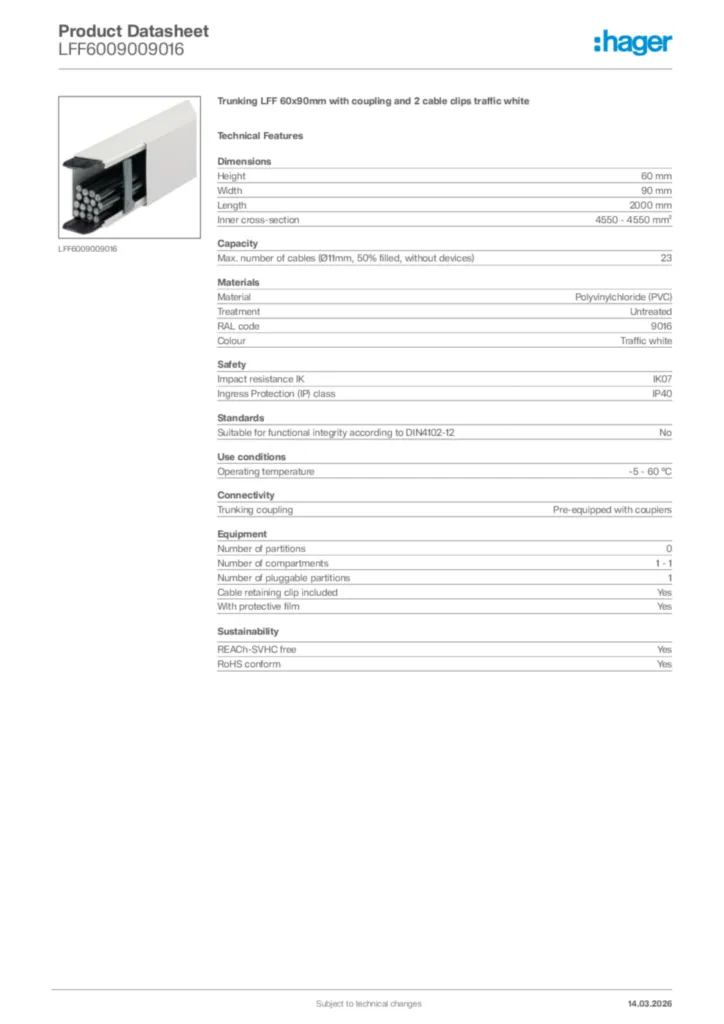

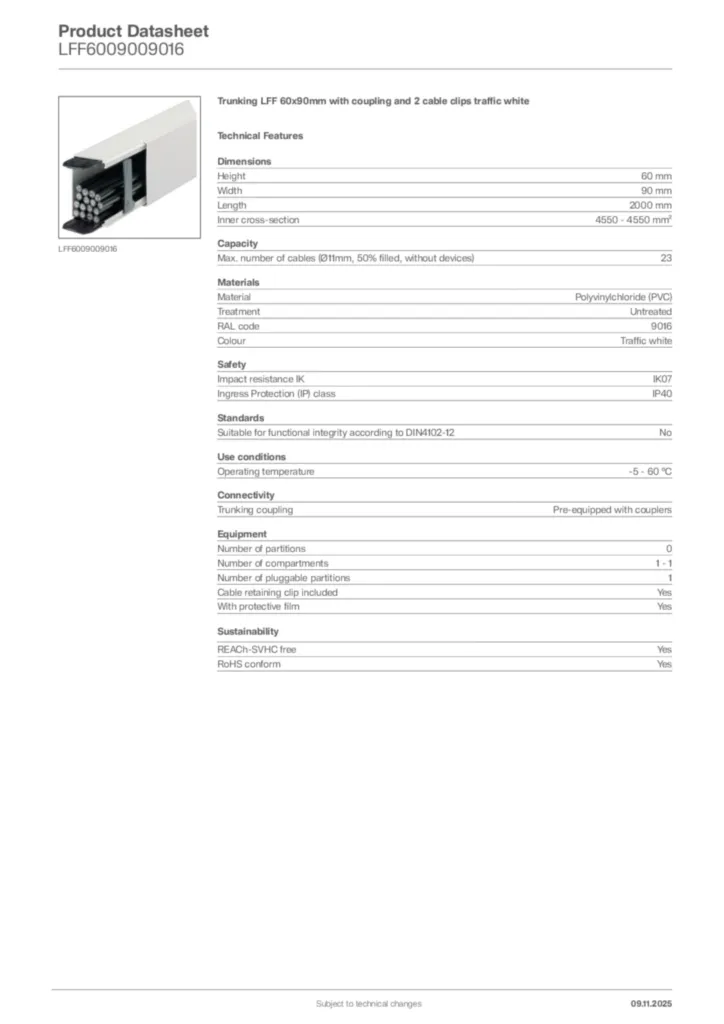

    • Product datasheet

      Image Hager Product data sheet LFF6009009016 | Hager Africa

      Hager Product data sheet LFF6009009016

      Trunking LFF 60x90mm with coupling and 2 cable clips traffic white

      PDF

    • Product licence

      Image Product_Licence_NF004_1074_LFF | Hager Africa

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • Declaration of conformity

      Image EU-Declaration LFF T045A FR_EN 26072019 | Hager Africa

      EU-Declaration LFF T045A FR_EN 26072019

      Declaration of conformity International 2020-06-25

      PDF
      48,04 kB
    More documentation
