    • LFF6009047030
    The Hager internal corner, halogen‑free, for LF/LFF 60x90 trunking in stone grey (RAL7030), ensures clean, safe corner transitions. Click mounting and overlapping design speed installation and conceal cuts. Adjustable 83-97° angle adapts to wall tolerances. Durable ABS with IK07 impact resistance, 60x90 mm profile (a=135 mm), operates -5 to 60°C—ideal for residential and commercial cable routing.
    EAN
    4012740022804
    VPE
    1 piece
    • Cable trunking systems - LF
    • Cable trunking system - LFF
    • See more

    Internal Corner VDI 20x80 Oak Adjustable 83-135° Overlapping ABS tehalit.SL LFF6009047030

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Internal Corner VDI 20x80 Oak Adjustable 83-135° Overlapping ABS tehalit.SL

    LFF6009047030

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Accessories
    • Type of accessory
      Moulded
    Settings
    • Angle range
      83 - 97
    Dimen­sions
    • Height
      60 mm
    • Width
      90 mm
    • Meas­ure­ment a
      135 mm
    Mater­ials
    • Material
      Acryloni­trile-Butadiene-Styrene (ABS)
    • Treat­ment
      Untreated
    • Colour
      Stone grey
    • RAL code
      7030
    Safety
    • Impact resist­ance IK
      IK07
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Equip­ment
    • With protective film
      No
    Config­ur­a­tion
    • Over­lap­ping
      Yes
    Connectivity
    • Mounting type
      Click mounting
    • Related Series
      LFF 60x90

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    REACH declaration LFF6009047030
    PDF
    RoHS report LFF6009047030
    PDF

    Downloads

    • Image LFF6009047030 | Hager UK

      Product Image LFF6009047030

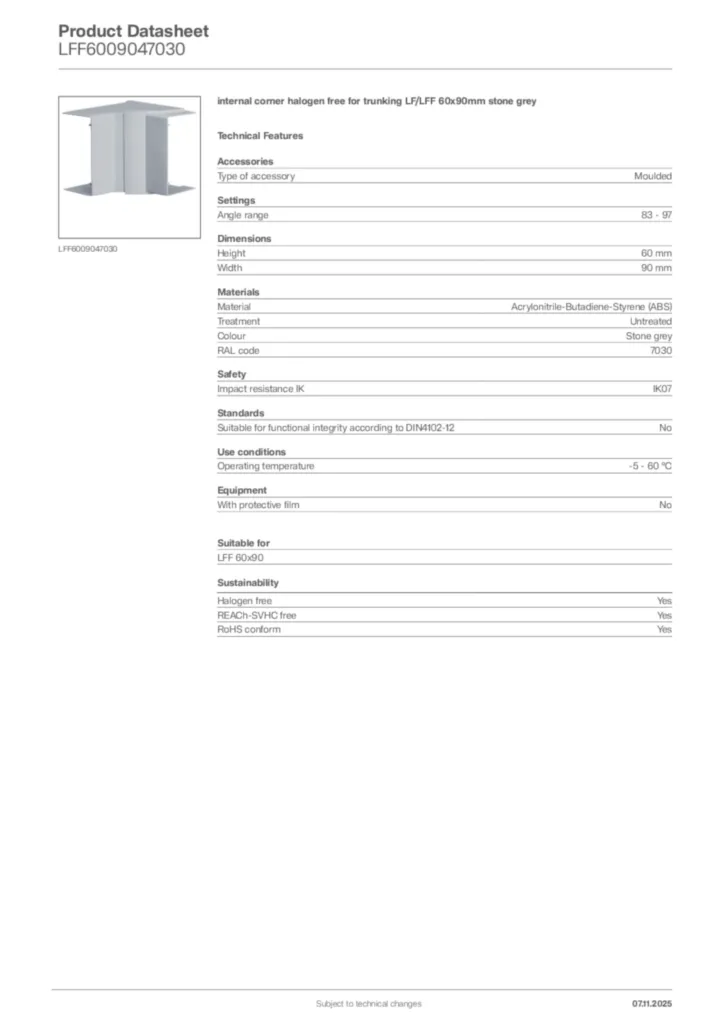

    • GeneratedProductDatasheet

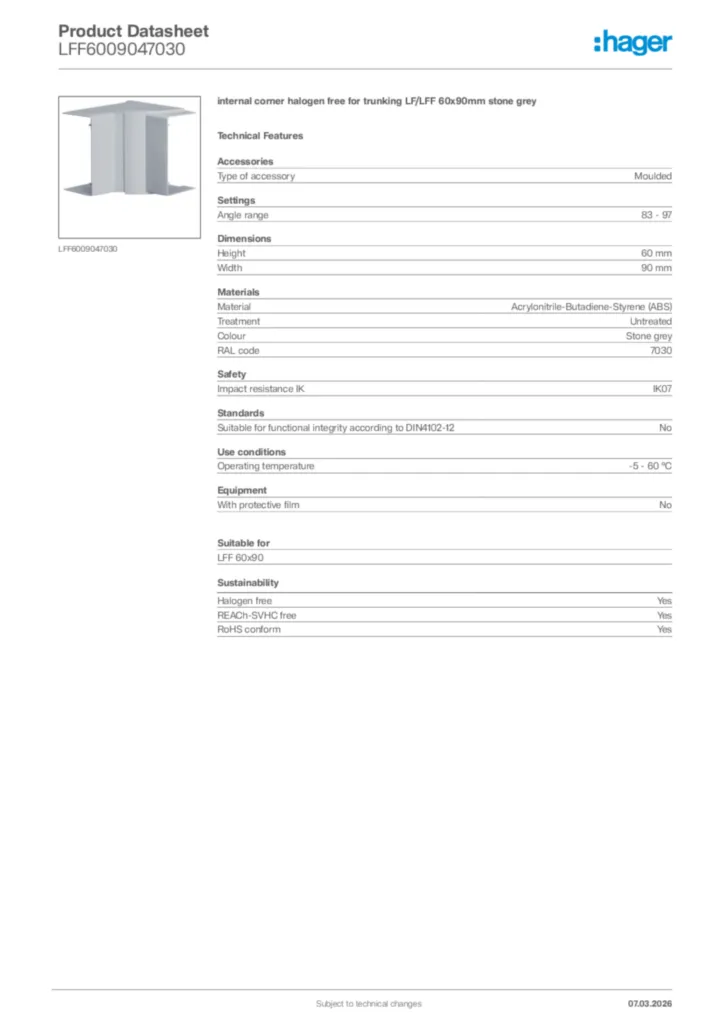

      Image Hager Product data sheet LFF6009047030 | Hager UK

      Hager Product data sheet LFF6009047030

      internal corner halogen free for trunking LF/LFF 60x90mm stone grey

      PDF

    • ProductLicence

      Image Product_Licence_NF004_1074_LFF | Hager UK

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • ProductECDeclaration

      Image Declaration of conformity en-GB 2026-08-07 | Hager UK

      Declaration of conformity en-GB 2026-08-07

      PDF
      334,89 kB
      Image Declaration of conformity en-GB 2026-09-30 | Hager UK

      Declaration of conformity en-GB 2026-09-30

      PDF
      438,98 kB
