The Hager flat overlapping angle for LF 40x57 mm trunking delivers clean corner transitions and cable protection. Halogen-free moulded ABS in stone grey (RAL7030), IK07 impact rated. Adjustable 83-97° to absorb wall deviations and speed installation. Overlapping lip hides cut edges for a neat finish. Operating −5 to 60°C. Ideal for residential and commercial trunking runs.

EAN

4012740022521

Packaging

1 Piece

Flat angle halogen-free 90° for trunking 60x150mm, ABS IK07, RAL 7030 stone grey LFF4006057030

Technical properties
Environmental value
Documentations
More products

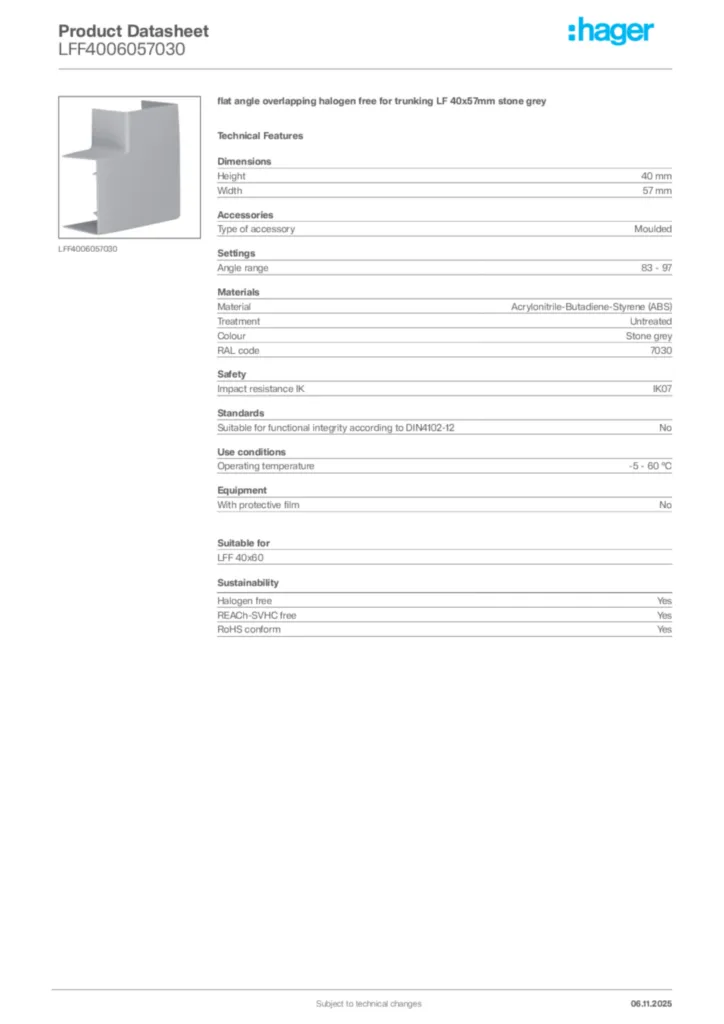

Download the data sheet

Technical properties

Height

40 mm
Width

57 mm
Measurement a

95 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Symmetrical

Yes

Related Series

LFF 40x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
