The Hager LFF 40x40 flat angle, halogen-free accessory in stone grey (RAL 7030) provides a neat 90° change of direction for LF 40x40 trunking. Moulded ABS, 40x40 mm with 68 mm leg length, it installs quickly for a flush, non-overlapping finish. IK07 impact resistance and -5 to 60 °C rating ensure durability. Ideal for safe, low-smoke cable routing in residential and commercial environments.

EAN

4012740021432

Packaging

1 Piece

Flat angle for trunking 30x30mm halogen-free ABS IK07 stone grey RAL7030 LF4004057030

Technical properties
Environmental value
Documentations
More products

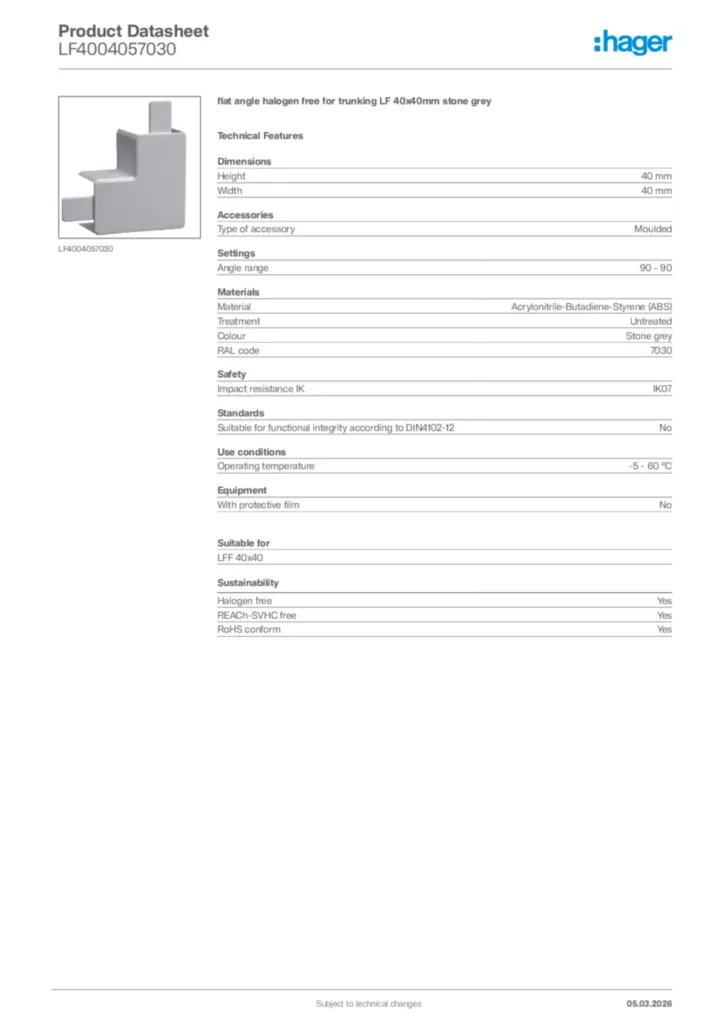

Download the data sheet

Technical properties

Height

40 mm
Width

40 mm
Measurement a

68 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting on

Through lid

Symmetrical

Yes

Related Series

LFF 40x40

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
