The Hager 2-gang 45x45 support for LFF 40/60/090 trunking in traffic white (RAL9016) enables mounting two 45x45 modules directly on dado trunking for quick, tidy installation. Its overlapping design hides cut edges for a clean finish. Made of durable ABS with IK07 impact resistance, it offers robust, reliable support for residential or commercial wiring while matching trunking aesthetics.

EAN

4012740013604

Packaging

1 Piece

NewVegaD Kit 300x500 for MCCB H3+ 250A (In160A) add-on, 1 rail RAL9010 LFF72H0909016

Technical properties
Environmental value
Documentations
More products

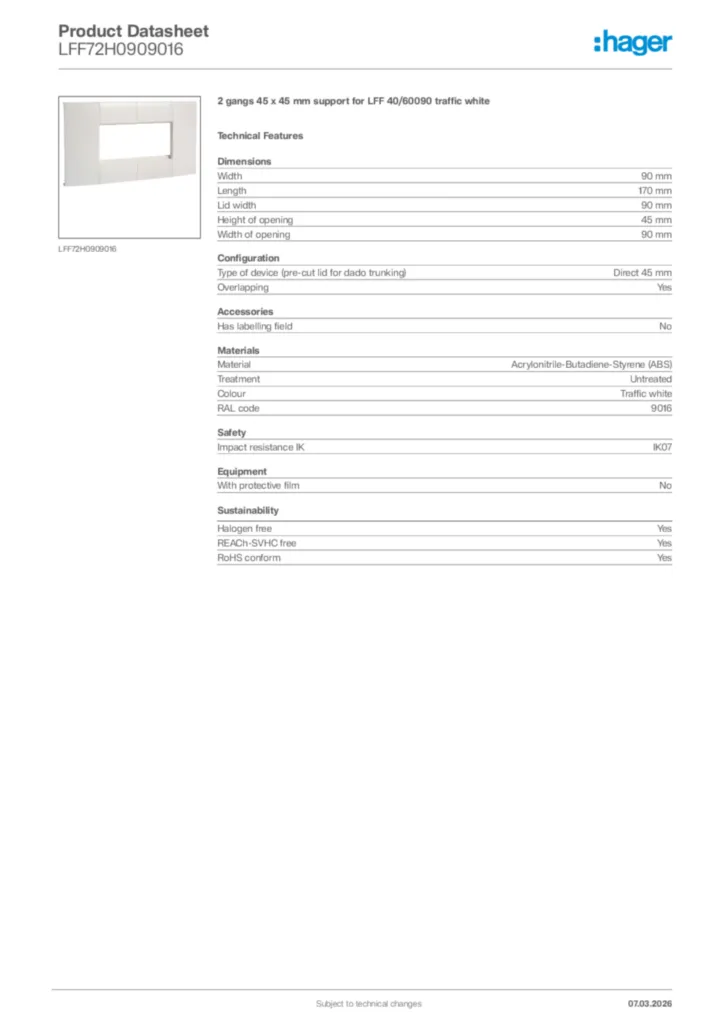

Download the data sheet

Technical properties

Width

90 mm
Length

170 mm
Lid width

90 mm
Height of opening

45 mm
Width of opening

90 mm

Type of device (pre-cut lid for dado trunking)

Direct 45 mm
Overlapping

Yes

Has labelling field

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

With protective film

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
