The Hager internal corner, halogen‑free, for LF/LFF/LFH 60x90 trunking in traffic white (RAL 9016), provides a neat, safe transition at internal angles. Moulded PC‑ABS with IK07 impact resistance, adjustable 83-97° for uneven walls, overlapping design hides cuts. Click mounting speeds installation. Size 60×90 mm (A=135 mm). Operating −5 to 90°C. For residential and commercial cable routing.

EAN

4012740013338

Packaging

1 Piece

Internal corner halogen-free for trunking LF/LFF 60x57mm Click mounting IK07 LFF6009049016

Technical properties
Environmental value
Documentations
More products

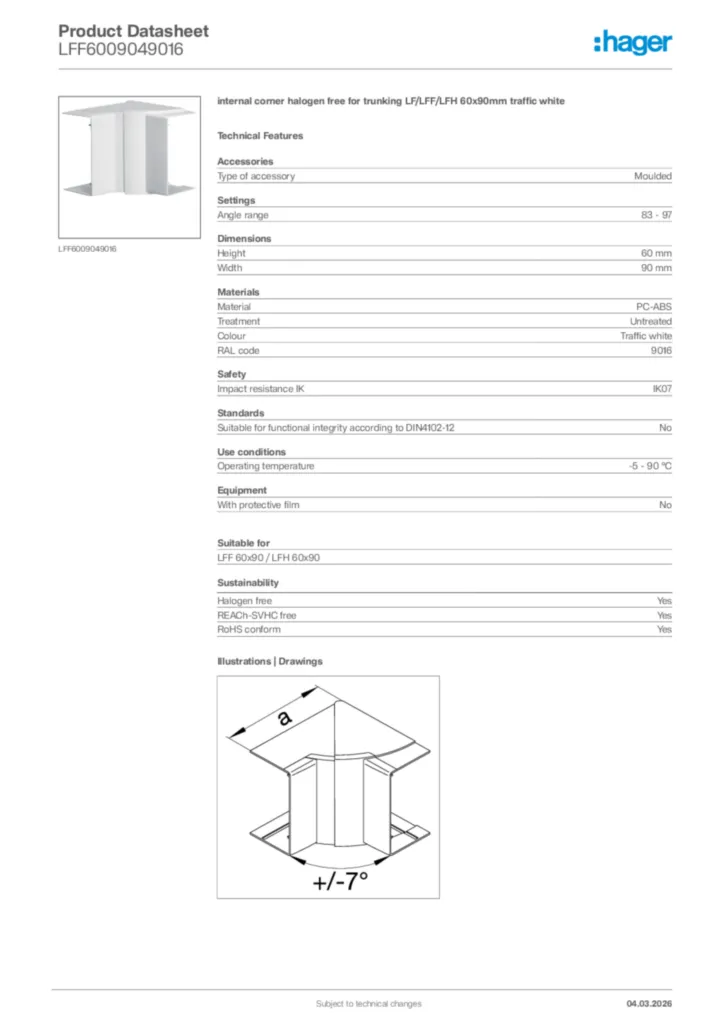

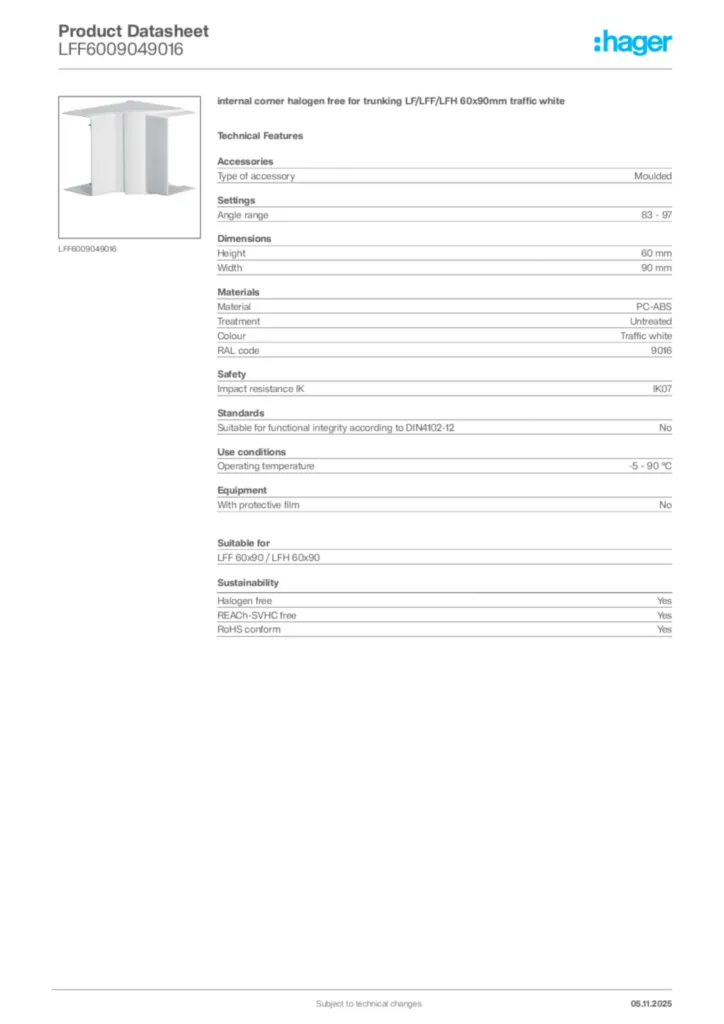

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

83 - 97

Height

60 mm
Width

90 mm
Measurement a

135 mm

Material

PC-ABS
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 60x90, LFH 60x90

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
