The Hager external corner, halogen‑free, for LF/LFF/LFH 60x90 trunking enables tidy 83-97° corner transitions. Its moulded, overlapping design ensures neat cable guidance and continuity. Click mounting speeds installation. Made of robust PC‑ABS (IK07) in traffic white RAL9016, it operates from -5 to 90°C. Ideal for residential and commercial cable management where low-smoke, halogen‑free safety is required.

EAN

4012740013321

Packaging

1 Piece

Cable trunking LFF 60x90 pre-coupled 2m IP40 IK07 Traffic White +2 clips LFF6009039016

Technical properties
Environmental value
Documentations
More products

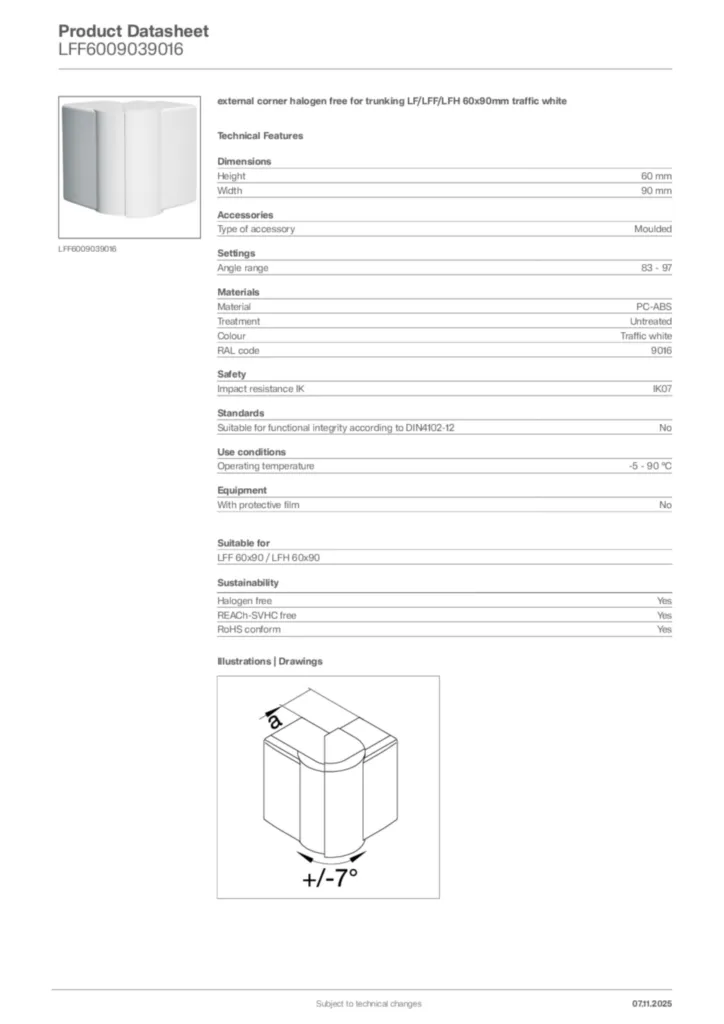

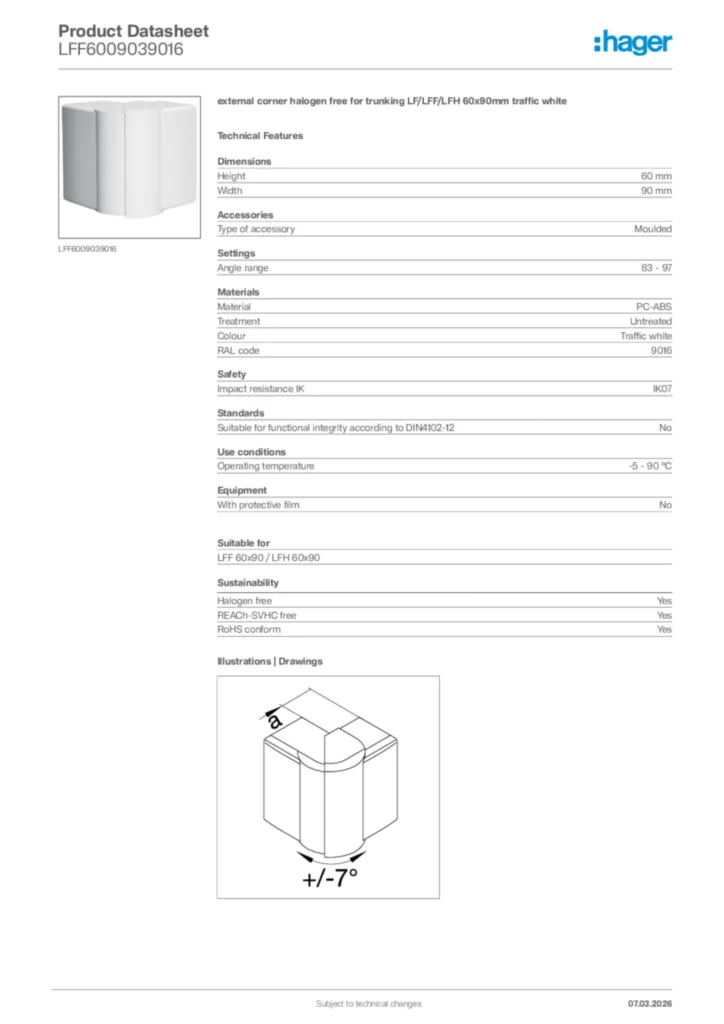

Download the data sheet

Technical properties

Height

60 mm
Width

90 mm
Measurement a

48 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

PC-ABS
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

Yes

Mounting type

Click mounting

Related Series

LFF 60x90, LFH 60x90

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
