    The Hager halogen-free endcap for LF/LFF/LFH trunking (40/60x90) provides a clean, safe termination for cable routes, preventing dust ingress and protecting conductors. Made of durable PC-ABS in traffic white RAL9016, it offers IK07 impact resistance and -5 to 90°C service. Overlapping design ensures neat coverage. Quick snap-on or secure screw mounting. Compatible with LFF 40x90, LFF 60x90 and LFH 60x90.
    EAN
    4012740013352
    Packaging
    1 Piece
    • Cable trunking systems - LF
    • Cable trunking system - LFF
    • See more

    Flat angle overlapping halogen-free for LF/LFF trunking 40x90mm RAL 9016 IK07 LFF6009069016

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Flat angle overlapping halogen-free for LF/LFF trunking 40x90mm RAL 9016 IK07

    LFF6009069016

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Dimen­sions
    • Height
      60 mm
    • Width
      90 mm
    Mater­ials
    • Material
      PC-ABS
    • Treat­ment
      Untreated
    • Colour
      Traffic white
    • RAL code
      9016
    Safety
    • Impact resist­ance IK
      IK07
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 90 °C
    Equip­ment
    • With protective film
      No
    Config­ur­a­tion
    • Over­lap­ping
      Yes
    • With anti­bac­terial treat­ment
      No
    Connectivity
    • Mounting type
      Screw connec­tion, Snap-on mounting
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    • Related Series
      LFF 40x90, LFF 60x90, LFH 60x90

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    REACH declaration LFF6009069016
    PDF
    RoHS report LFF6009069016
    PDF

    Downloads

    • Image LFF6009069016 | Hager Africa

      Product Image LFF6009069016

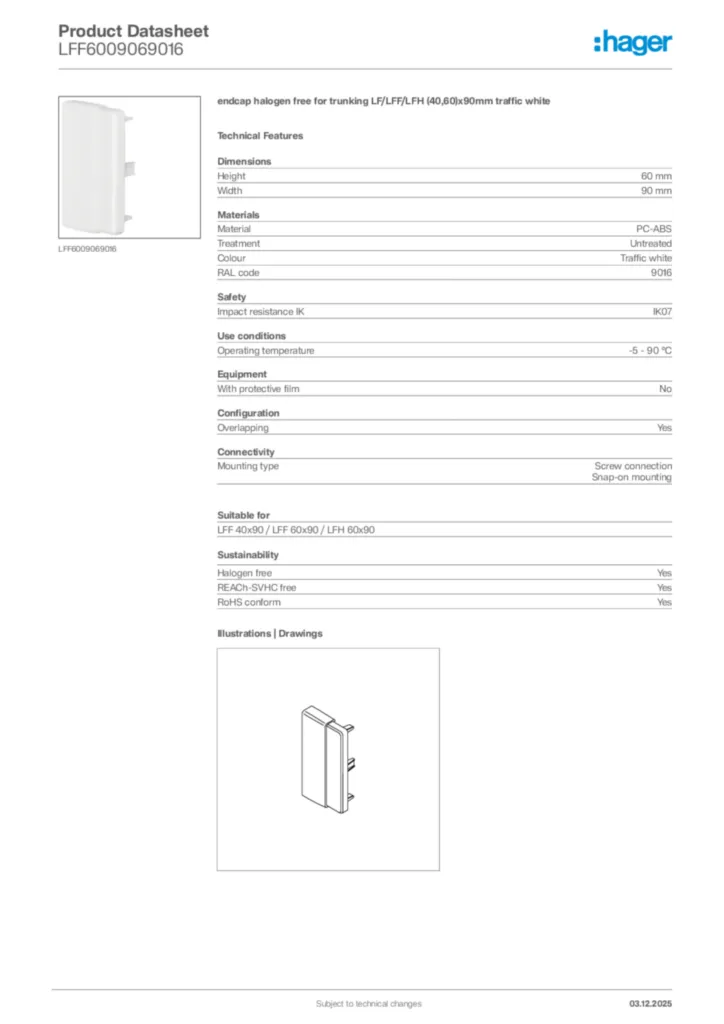

    • Product datasheet

      Image Hager Product data sheet LFF6009069016 | Hager Africa

      Hager Product data sheet LFF6009069016

      endcap halogen free for trunking LF/LFF/LFH (40,60)x90mm traffic white

      PDF

    • Product licence

      Image Product_Licence_NF004_1074_LFF | Hager Africa

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • Declaration of conformity

      Image EU-Declaration LFF T045A FR_EN 26072019 | Hager Africa

      EU-Declaration LFF T045A FR_EN 26072019

      Declaration of conformity International 2020-06-25

      PDF
      48,04 kB
      Image EU-Declaration LFH T027A DE_EN 25072019 | Hager Africa

      EU-Declaration LFH T027A DE_EN 25072019

      Declaration of conformity International 2019-08-23

      PDF
      41,84 kB
      Image T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE | Hager Africa

      T062B_EU-Declaration-of-conformity_DE-EN_LF-LFE

      Declaration of conformity International 2023-02-07

      PDF
      52,28 kB
