Trunking with coupling tehalit.LFF 30x30mm traffic white LFF3003009016

EAN
4012740013048
Packaging
56 Meters

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Trunking with coupling tehalit.LFF 30x30mm traffic white

LFF3003009016

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • External corner for install­a­tion duct 1 products available
  • Internal corner for install­a­tion duct 1 products available
  • Flat angle for install­a­tion duct 1 products available
  • End piece for install­a­tion duct 1 products available
  • Joint cover for install­a­tion duct 1 products available
  • T-piece for install­a­tion duct 1 products available

Complete your system

  • External corner for install­a­tion duct
  • Internal corner for install­a­tion duct
  • Flat angle for install­a­tion duct
  • End piece for install­a­tion duct
  • Joint cover for install­a­tion duct
  • T-piece for install­a­tion duct
  • LF3003039016

    external corner halogen free for trunking LF 30x30mm traffic white
    0.00 €  / *
  • LF3003049016

    internal corner halogen free for trunking LF 30x30mm traffic white
    0.00 €  / *
  • LF3003059016

    flat angle halogen free for trunking LF 30x30mm traffic white
    0.00 €  / *
  • LF3003069016

    endcap halogen free for trunking LF 30x30mm traffic white
    0.00 €  / *
  • LFF60J9016

    Joint cover for base LF/LFF height 30/40/60mm traffic white
    0.00 €  / *
  • LF3003089016

    T-piece halogen free for trunking LF 30x30mm traffic white
    0.00 €  / *

Technical properties

Dimen­sions
  • Height
    30 mm
  • Width
    30 mm
  • Length
    2000 mm
  • Inner cross-sec­tion
    620 - 620 mm²
Capa­city
  • Max. number of cables (Ø11mm, 50% filled, without devices)
    3
Mater­ials
  • Material
    Polyvinyl­chloride (PVC)
  • Treat­ment
    Untreated
  • RAL code
    9016
  • Colour
    Traffic white
Safety
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP40
Use condi­tions
  • Oper­ating temper­ature
    -5 - 60 °C
Connectivity
  • Trunking coup­ling
    Pre-equipped with couplers
Equip­ment
  • Number of parti­tions
    0
  • Number of plug­gable parti­tions
    0
  • Cable retaining clip included
    No
  • With protective film
    No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

PEP - Distribution trunking - series LFF (english)
PDF
383,26 kB
Hager REACH declaration LFF3003009016
PDF
Hager RoHS report LFF3003009016
PDF

Downloads

  • Image LFF3003009016 | Hager Africa

    Product Image LFF3003009016

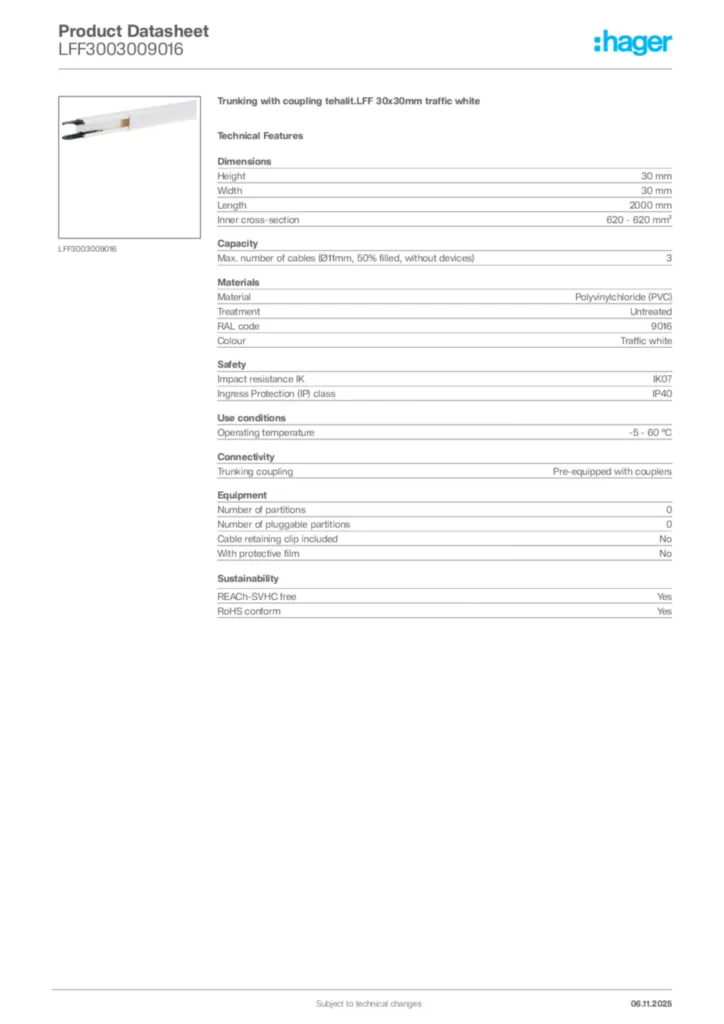

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Product licence

    Image Product_Licence_NF004_1074_LFF | Hager Africa

    Product_Licence_NF004_1074_LFF

    Product licence International 2021-02-12

    PDF
    1,52 MB

  • Declaration of conformity

    Image EU-Declaration LFF T045A FR_EN 26072019 | Hager Africa

    EU-Declaration LFF T045A FR_EN 26072019

    Declaration of conformity International 2020-06-25

    PDF
    48,04 kB
