    • LFF3004509016
    The Hager tehalit.LFF trunking with coupling 30x45mm in traffic white (RAL 9016) provides neat surface cable routing for residential and light commercial installs. Supplied in 2 m lengths, PVC, IP40, IK07. Inner cross-section 970 mm², holds up to 5 × Ø11 mm cables (50% fill). Pre-equipped couplers speed installation. Operating range -5 to 60°C. Compact profile saves space.
    EAN
    4012740013055
    VPE
    32 meters
    • Cable trunking systems - LF
    • Cable trunking system - LFF
    • See more

    Endcap halogen-free for trunking LFF 30x30mm IK07 traffic white RAL9016 LFF3004509016

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Endcap halogen-free for trunking LFF 30x30mm IK07 traffic white RAL9016

    LFF3004509016

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

    • Joint cover for install­a­tion duct 1 product.page.accessories.products-available
    • External corner for install­a­tion duct 1 product.page.accessories.products-available
    • End piece for install­a­tion duct 1 product.page.accessories.products-available
    • Internal corner for install­a­tion duct 1 product.page.accessories.products-available
    • T-piece for install­a­tion duct 1 product.page.accessories.products-available
    • Flat angle for install­a­tion duct 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Joint cover for install­a­tion duct
    • External corner for install­a­tion duct
    • End piece for install­a­tion duct
    • Internal corner for install­a­tion duct
    • T-piece for install­a­tion duct
    • Flat angle for install­a­tion duct
    • LFF60J9016

      Joint cover for base LF/LFF height 30/40/60mm traffic white
      €0.00  / *
    • LF3004539016

      external corner halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004569016

      endcap halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004549016

      internal corner halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004589016

      T-piece halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *
    • LF3004559016

      flat angle halogen free for trunking LF/LFH 30x45mm traffic white
      €0.00  / *

    Technical characteristics

    Dimen­sions
    • Height
      30 mm
    • Width
      45 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      970 - 970 mm²
    Cover, door
    • Type of lid
      Loose
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      5
    Mater­ials
    • Material
      Polyvinyl­chloride (PVC)
    • Treat­ment
      Untreated
    • RAL code
      9016
    • Colour
      Traffic white
    • Trans­parent
      No
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Connectivity
    • Trunking coup­ling
      Pre-equipped with couplers
    Equip­ment
    • Number of parti­tions
      0
    • Number of plug­gable parti­tions
      0
    • Cable retaining clip included
      No
    • Number of cable retainers per meter
      0
    • With protective film
      No
    Config­ur­a­tion
    • With anti­bac­terial treat­ment
      No
    Scope of delivery
    • Delivery on roll
      No

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    REACH declaration LFF3004509016
    PDF
    RoHS report LFF3004509016
    PDF

    Downloads

    • Image LFF3004509016 | Hager UK

      Product Image LFF3004509016

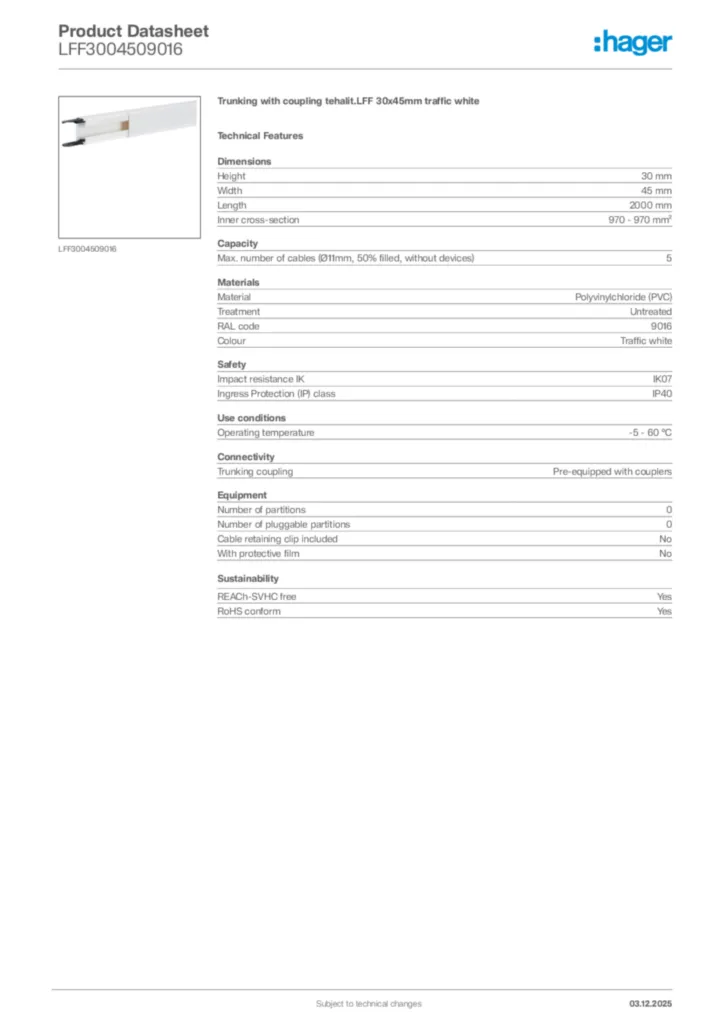

    • GeneratedProductDatasheet

      Image Hager Product data sheet LFF3004509016 | Hager UK

      Hager Product data sheet LFF3004509016

      Trunking with coupling tehalit.LFF 30x45mm traffic white

      PDF

    • ProductLicence

      Image Product_Licence_NF004_1074_LFF | Hager UK

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • ProductECDeclaration

      Image Declaration of conformity en-GB 2026-08-07 | Hager UK

      Declaration of conformity en-GB 2026-08-07

      PDF
      334,89 kB
