    The Hager Liféa trunking 30x57 with coupling and 2 cable retainers, stone grey (RAL 7030), provides neat, protected cable routing for residential and commercial spaces. PVC, IK07, IP40. 30x57 mm, 2 m length, 1250 mm² inner section, holds up to 6 Ø11 mm cables (50% fill). Pre-equipped couplers speed installation; retainers secure wiring. Operating range -5 to 60°C.
    EAN
    4012740852487
    VPE
    32 meters
    • Cable trunking systems - LF
    • Cable trunking system - LFF
    • See more

    Liféa trunking 40x40 PVC 2m Stone Grey IP40 IK07 pre-equipped couplers LFF3006007030

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Liféa trunking 40x40 PVC 2m Stone Grey IP40 IK07 pre-equipped couplers

    LFF3006007030

    • Accessories
    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    product.page.accessories.title

    product.page.accessories.associated-products

    • Cable clip/re­tainer for install­a­tion duct 1 product.page.accessories.products-available
    • Internal corner for install­a­tion duct 1 product.page.accessories.products-available
    • End piece for install­a­tion duct 1 product.page.accessories.products-available
    • External corner for install­a­tion duct 1 product.page.accessories.products-available
    • Flat angle for install­a­tion duct 1 product.page.accessories.products-available
    • T-piece for install­a­tion duct 1 product.page.accessories.products-available

    product.page.accessories.title-modal

    • Cable clip/re­tainer for install­a­tion duct
    • Internal corner for install­a­tion duct
    • End piece for install­a­tion duct
    • External corner for install­a­tion duct
    • Flat angle for install­a­tion duct
    • T-piece for install­a­tion duct
    • M7239

      Cable retainer, LF/LFP B=60mm
      €0.00  / *
    • LFF3006047030

      internal corner halogen free for trunking LF/LFF 30x57mm stone grey
      €0.00  / *
    • LFF6006067030

      endcap halogen free for trunking LF/LFF (30, 40, 60)x60mm stone grey
      €0.00  / *
    • LFF3006037030

      external corner halogen free for trunking LF/LFF 30x57mm stone grey
      €0.00  / *
    • LFF3006057030

      flat angle overlapping halogen free for trunking LF/LFF 30x57mm stone grey
      €0.00  / *
    • LF3006087030

      T-piece halogen free for trunking LF 30x57mm stone grey
      €0.00  / *

    Technical characteristics

    Dimen­sions
    • Height
      30 mm
    • Width
      57 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      1250 - 1250 mm²
    Cover, door
    • Type of lid
      Loose
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      6
    Mater­ials
    • Material
      Polyvinyl­chloride (PVC)
    • Treat­ment
      Untreated
    • RAL code
      7030
    • Colour
      Stone grey
    • Trans­parent
      No
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Connectivity
    • Trunking coup­ling
      Pre-equipped with couplers
    Equip­ment
    • Number of parti­tions
      0
    • Number of plug­gable parti­tions
      0
    • Cable retaining clip included
      Yes
    • Number of cable retainers per meter
      2
    • With protective film
      No
    Config­ur­a­tion
    • With anti­bac­terial treat­ment
      No
    Scope of delivery
    • Delivery on roll
      No

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    REACH declaration LFF3006007030
    PDF
    RoHS report LFF3006007030
    PDF

    Downloads

    • Image LFF3006007030 | Hager UK

      Product Image LFF3006007030

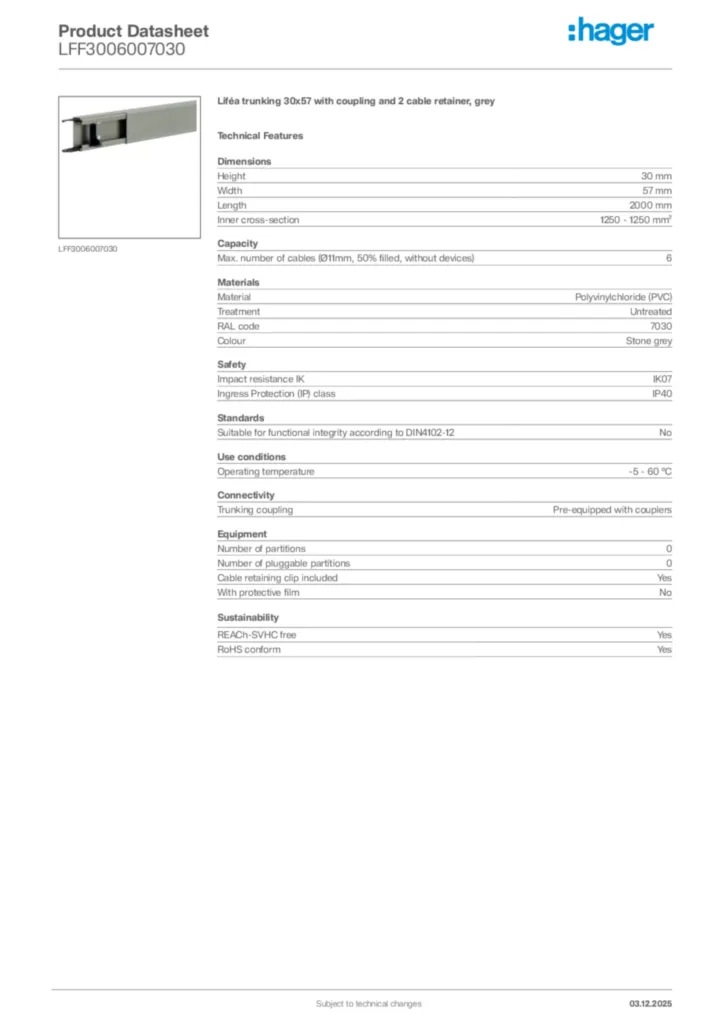

    • GeneratedProductDatasheet

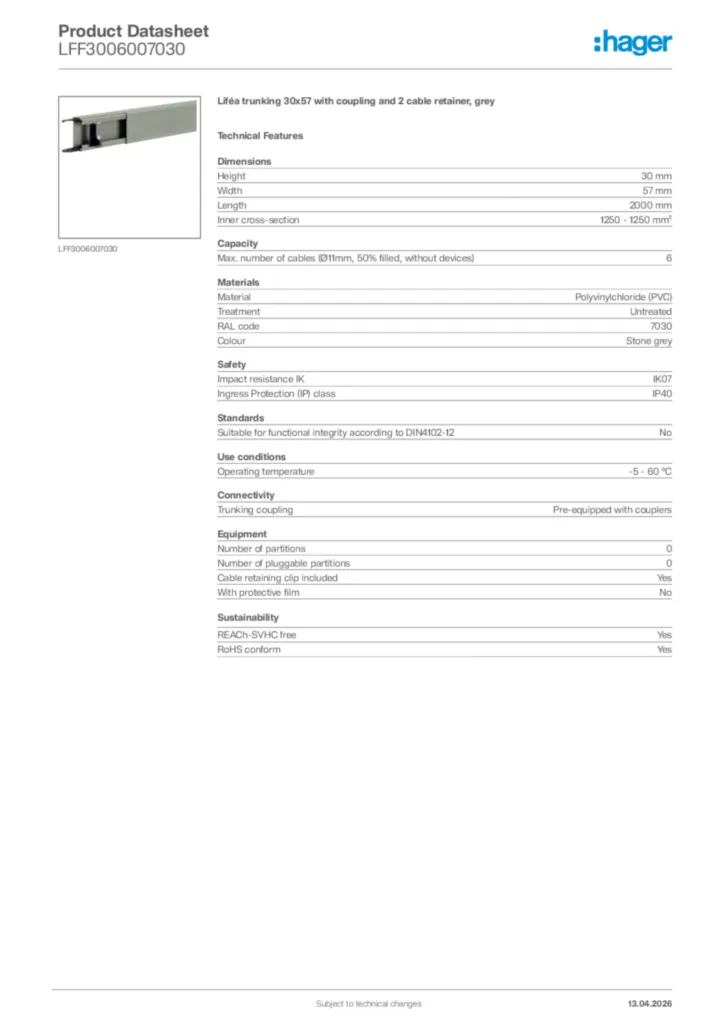

      Image Hager Product data sheet LFF3006007030 | Hager UK

      Hager Product data sheet LFF3006007030

      Liféa trunking 30x57 with coupling and 2 cable retainer, grey

      PDF

    • ProductLicence

      Image Product_Licence_NF004_1074_LFF | Hager UK

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB
