Hager flat angle overlapping halogen-free fitting for LF/LFF 30x57 mm trunking enables clean 90° transitions with tolerance 83-97°. Moulded ABS in stone grey (RAL7030) offers IK07 impact resistance and halogen-free, low-smoke safety. Overlap design hides cuts and gaps for a neat finish. Measurement a 95 mm; operating -5 to 60 °C. Ideal for residential and commercial trunking runs.

EAN

4012740022415

Packaging

1 Piece

Flat angle overlapping halogen-free 83-97° for LF/LFF 60x90 RAL7030 IK07 LFF3006057030

Technical properties
Environmental value
Documentations
More products

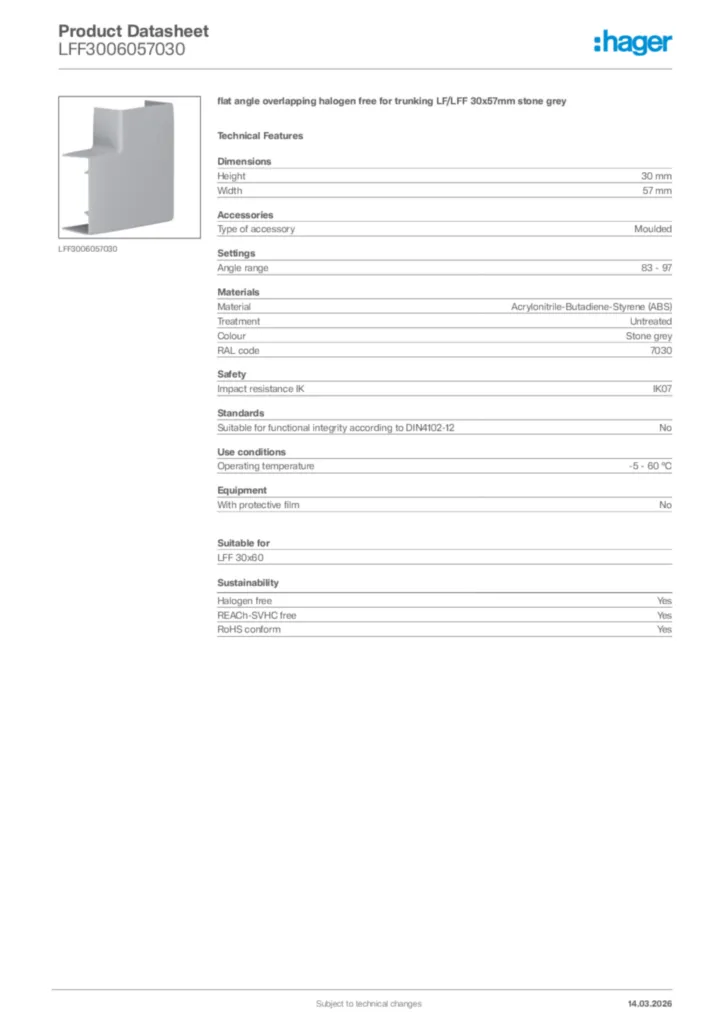

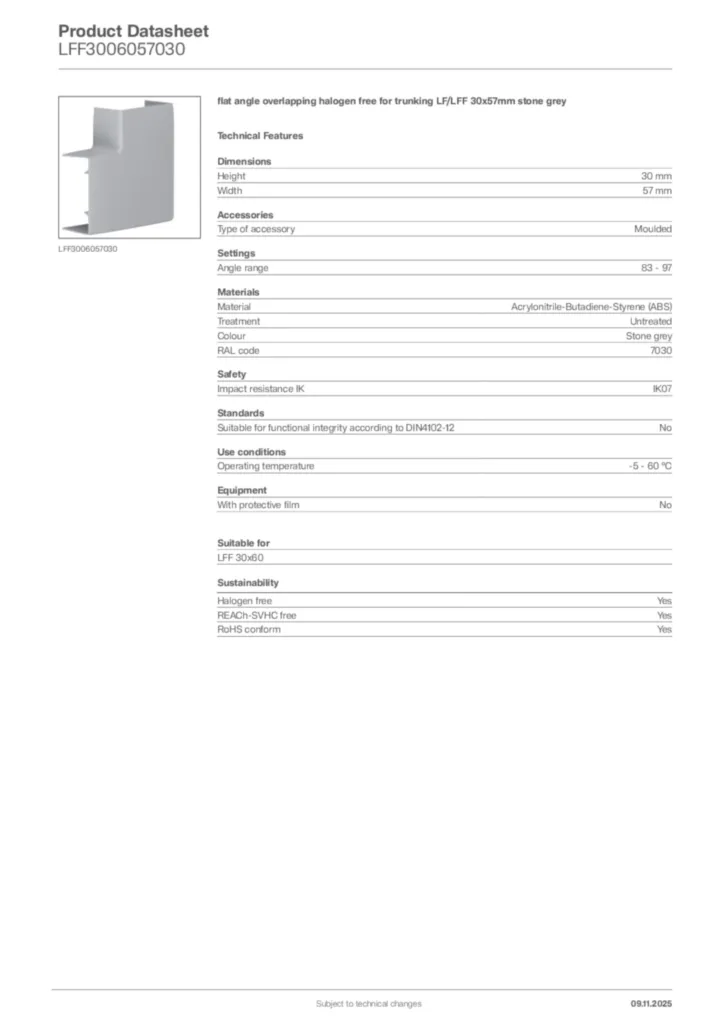

Download the data sheet

Technical properties

Height

30 mm
Width

57 mm
Measurement a

95 mm

Type of accessory

Moulded

Angle range

83 - 97

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Symmetrical

Yes

Related Series

LFF 30x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
