The Hager halogen-free end cap for LF/LFF trunking (30, 40, 60)x60 provides a neat, safe termination of cable ducts. ABS construction in stone grey (RAL7030) delivers IK07 impact resistance and reliable service from -5 to 60°C. Overlapping design ensures a clean, dust-protected finish. Fast screw or snap-on mounting. Dimensions: H60 x W57 mm. Compatible with LFF 30x60, 40x60, 60x60.

EAN

4012740022743

Packaging

1 Piece

End cap Halogen-free 60x150mm trunking LF/LFF/LFH/FB Traffic white RAL9016 IK07 LFF6006067030

Technical properties
Environmental value
Documentations
More products

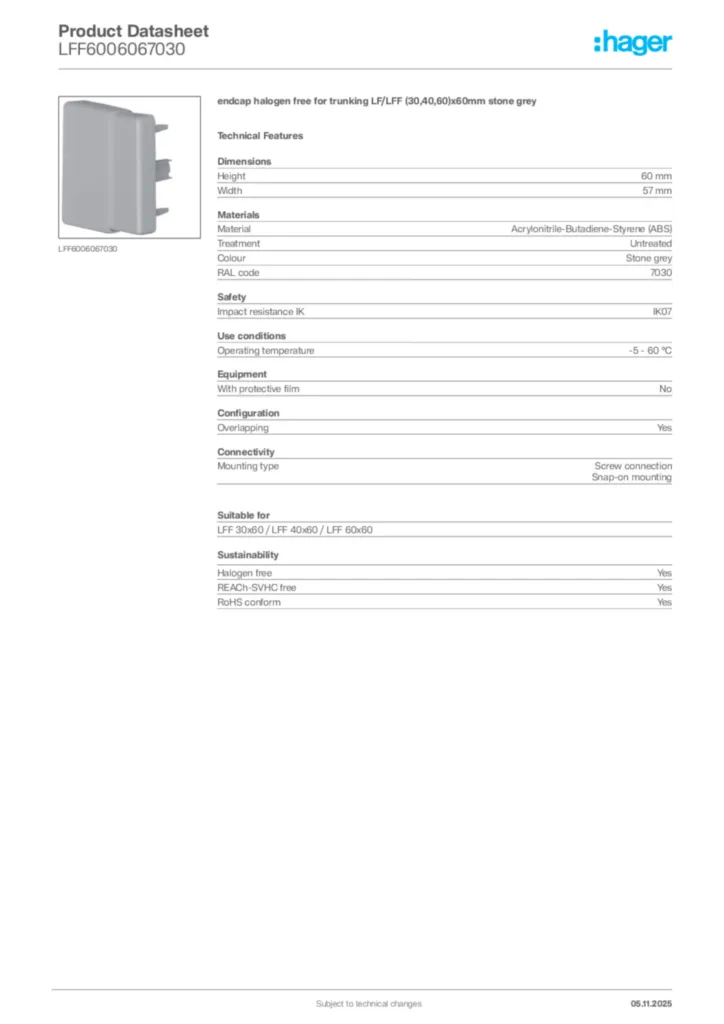

Download the data sheet

Technical properties

Height

60 mm
Width

57 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

Yes
With antibacterial treatment

No

Mounting type

Screw connection, Snap-on mounting

Suitable for functional integrity according to DIN4102-12

No

Related Series

LFF 30x60, LFF 40x60, LFF 60x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
