The Hager halogen-free T-piece for LF 30x57 mm trunking enables neat 90° cable branching with low-smoke, low-toxicity performance. Moulded ABS (IK07) in stone grey RAL7030 delivers robust, clean installations. Dimensions 30x57 mm, branch length 170 mm. Operating -5 to 60°C. Ideal for residential and commercial routing; compatible with LFF 30x60 series.

EAN

4012740021340

Packaging

1 Piece

Cable trunking systems - LF

T-piece Halogen-Free LF Trunking 40x110mm Stone Grey IK07 LF3006087030

Technical properties
Environmental value
Documentations
More products

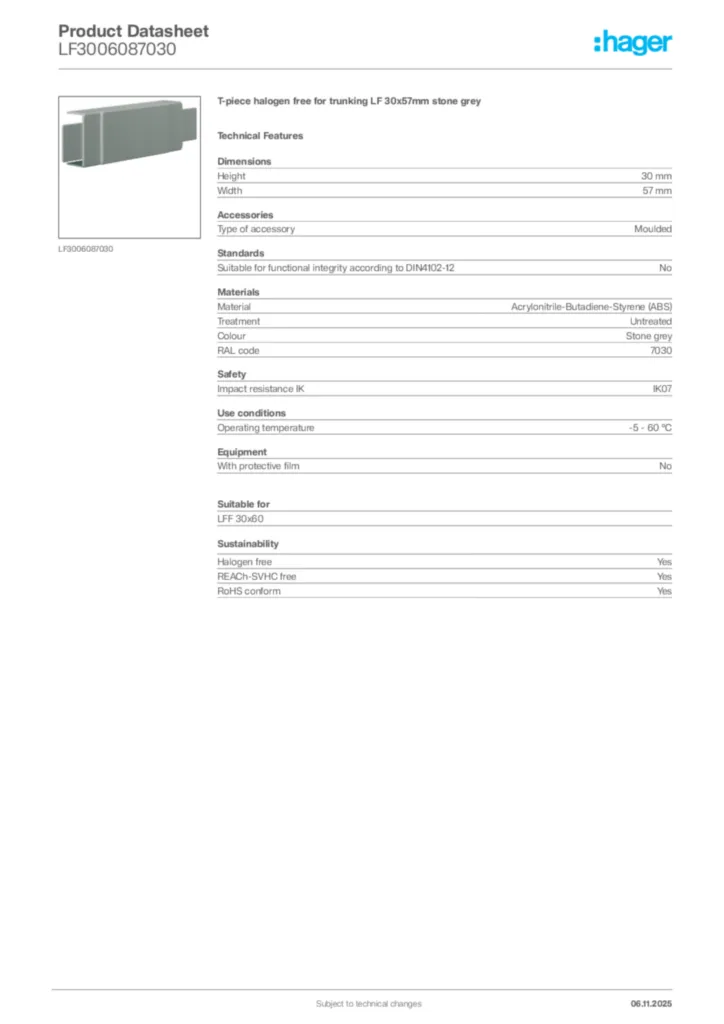

Download the data sheet

Technical properties

Height

30 mm
Width

57 mm
Measurement a

170 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

LFF 30x60

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
