The Hager T-piece overlapping for LFS 60x150 trunking enables neat 3-way branching in steel/plaster installations. Galvanised steel (zinc finish) offers durable, corrosion-resistant performance; IK08 impact and IP30 protection suit indoor runs. Dimensions 60x150 mm, leg 350 mm. Overlapping, moulded design speeds installation. Operating −5 to 60°C. Not rated for DIN 4102-12 functional integrity.
EAN
4012740023238
Packaging
6
End cap LFS trunking 60x150 galvanized steel IK08 IP30 screw/snap-on LFS601508VERZ
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height60 mm
-
Width150 mm
-
Measurement a350 mm
Accessories
-
Type of accessoryMoulded
Standards
-
Suitable for functional integrity according to DIN4102-12No
Materials
-
MaterialSteel
-
TreatmentGalvanised
-
ColourZinc
Safety
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP30
Use conditions
-
Operating temperature-5 - 60 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
-
With antibacterial treatmentNo
-
Related SeriesLFS 60x150
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

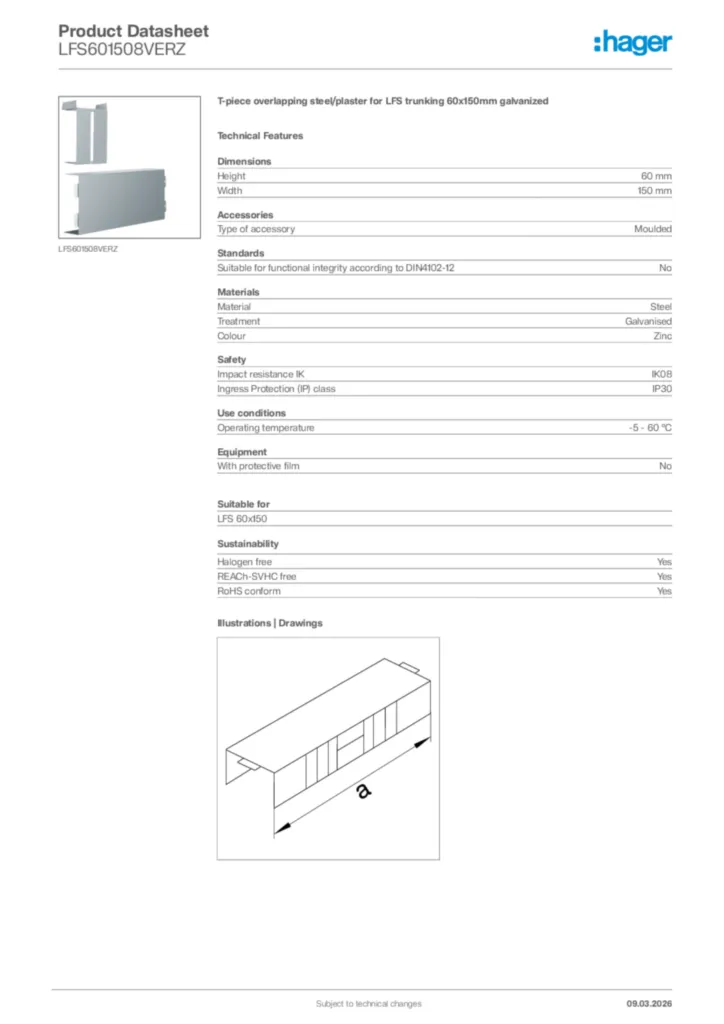

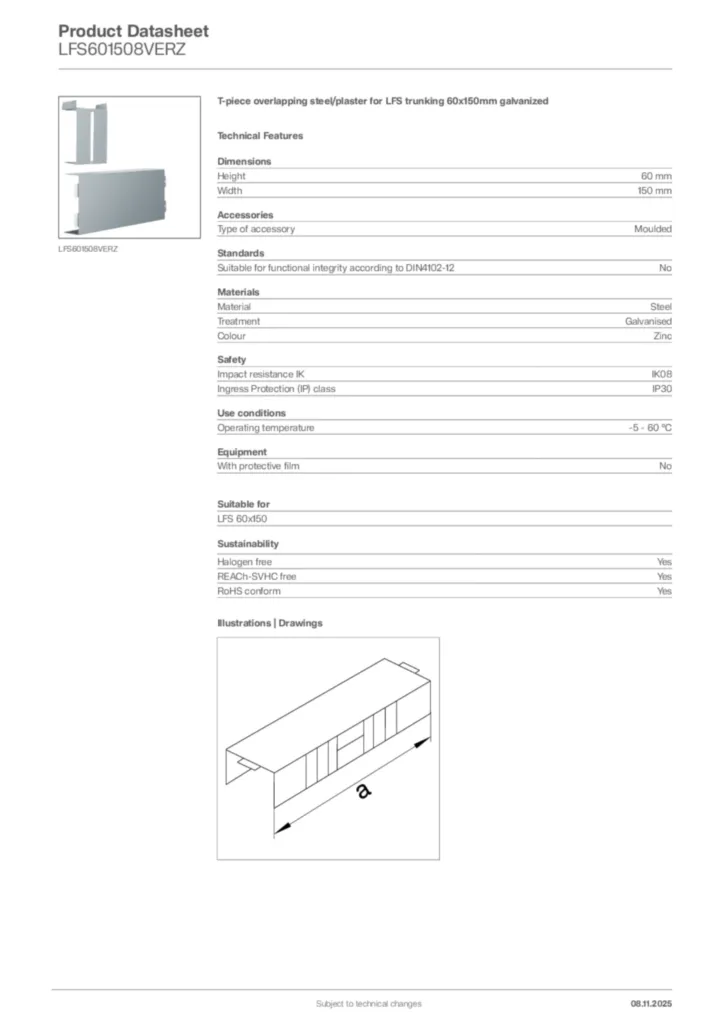

Product datasheet
Hager Product data sheet LFS601508VERZ
T-piece overlapping steel/plaster for LFS trunking 60x150mm galvanized
PDF -
Declaration of conformity
Declaration of conformity en-GB, de-DE 2021-09-30
PDF633,95 kB
