The Hager LFS 60x200 flat 90° angle fitting in galvanised steel enables neat directional changes on steel or plaster walls for LFS trunking runs. Moulded design ensures precise alignment, IK08 impact resistance and IP30 offer robust indoor protection. Dimensions 60x200 mm (a=50 mm). Operating range -5 to 60°C. Zinc finish complements the LFS system. Not suitable for functional integrity per DIN 4102-12.

EAN

4012740023269

Packaging

Cable trunking systems - LF

External corner overlapping 90° steel galvanized for LFS 60x200 IP30 IK08 LFS602005VERZ

Technical properties
Environmental value

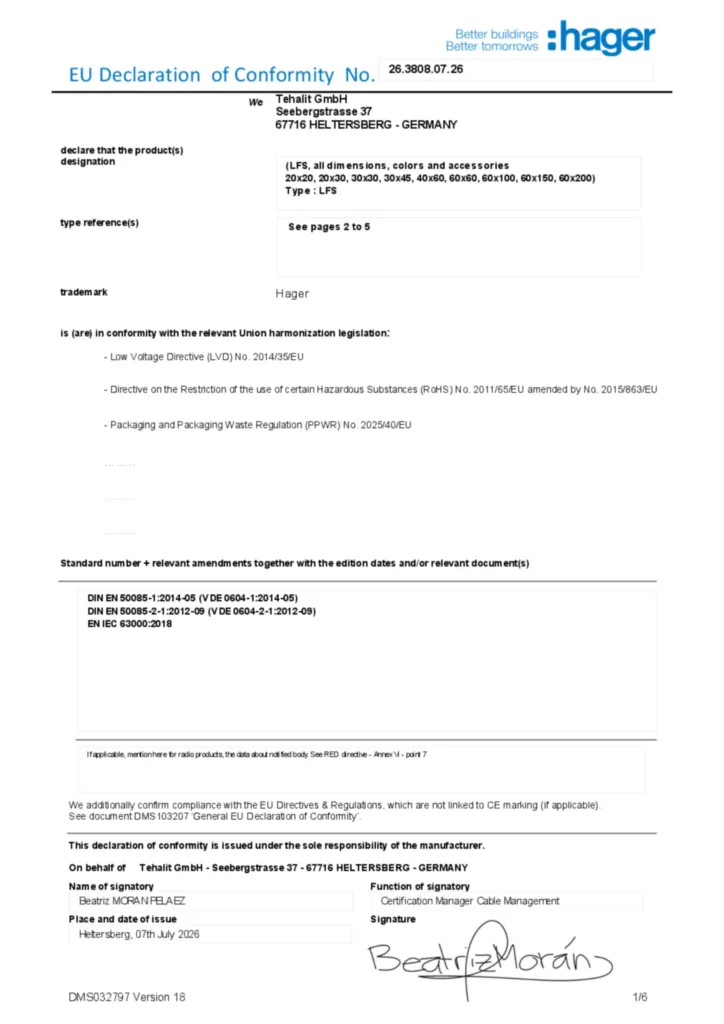

Documentations
More products

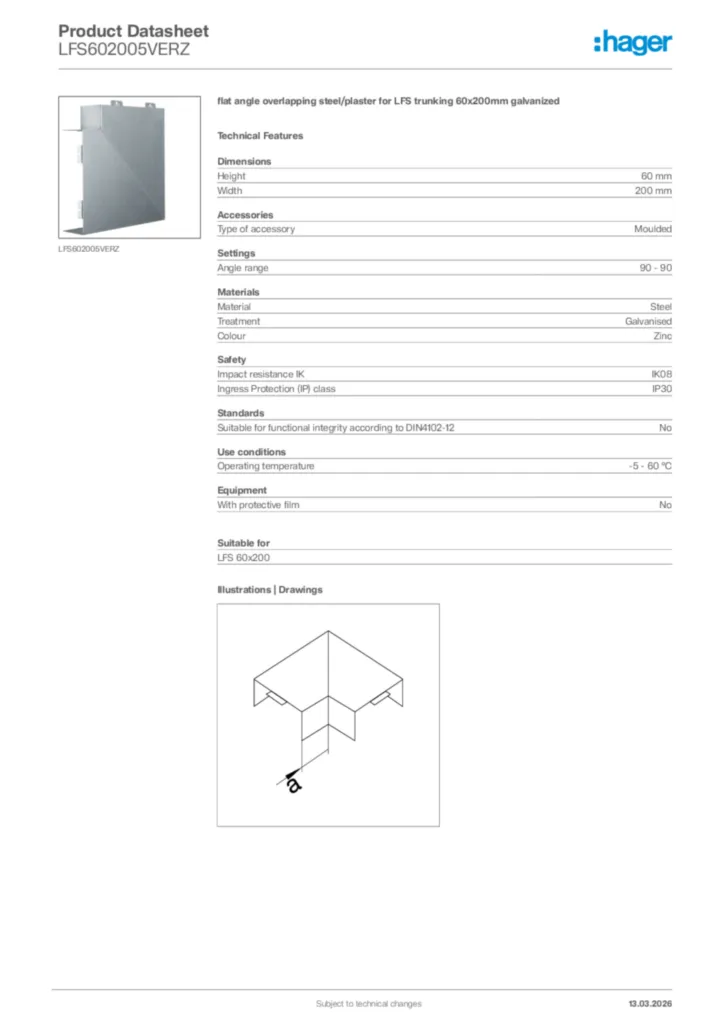

Download the data sheet

Technical properties

Height

60 mm
Width

200 mm
Measurement a

50 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Steel
Treatment

Galvanised
Colour

Zinc

Impact resistance IK

IK08
Ingress Protection (IP) class

IP30

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting on

Through lid

Symmetrical

Yes

Related Series

LFS 60x200

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
