The Hager halogen-free T-piece for LF/LFH 30x45 trunking enables clean 3-way branching in cable routes. Made of ABS in traffic white RAL9016, it fits 30x45 mm systems with a 130 mm leg length. IK07 impact resistance and -5 to 90°C operation ensure robust performance. The molded design delivers a precise fit and quick installation, ideal for low-emission residential and commercial wiring.
EAN
4012740011938
VPE
1 piece
T-piece Halogen-free for trunking LF 40x57mm IK07 Stone grey RAL7030 LF3004589016
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Dimensions
-
Height30 mm
-
Width45 mm
-
Measurement a130 mm
Accessories
-
Type of accessoryMoulded
Standards
-
Suitable for functional integrity according to DIN4102-12No
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Use conditions
-
Operating temperature-5 - 90 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingNo
-
With antibacterial treatmentNo
-
Related SeriesLFF 30x45, LFH 30x45
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

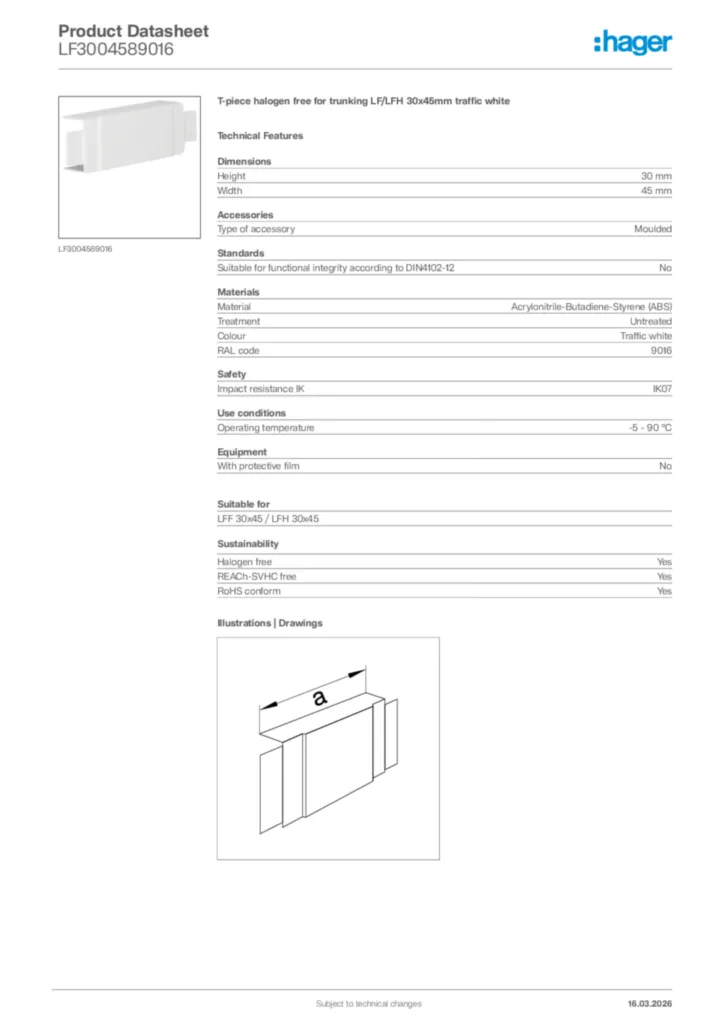

Hager Product data sheet LF3004589016
