The Hager flat angle, halogen‑free accessory for LF/LFH 30x45 mm trunking enables neat 90° flat directional changes while maintaining clean cable routing. Moulded ABS in traffic white (RAL9016) with IK07 impact resistance and a -5 to 90°C range. Dimensions: 30 x 45 mm, a = 60 mm. Ideal for safer, low‑emission residential and commercial installations, ensuring a consistent finish and quick installation.
EAN
4012740011914
Packaging
1 Piece
Couple brackets Quadro.system busbar support Steel 27x65x115 mm LF3004559016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height30 mm
-
Width45 mm
-
Measurement a60 mm
Accessories
-
Type of accessoryMoulded
Settings
-
Angle range90 - 90
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS)
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 90 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingNo
-
With antibacterial treatmentNo
Installation, mounting
-
Mounting onThrough lid
Architecture
-
SymmetricalYes
-
Related SeriesLFF 30x45, LFH 30x45
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

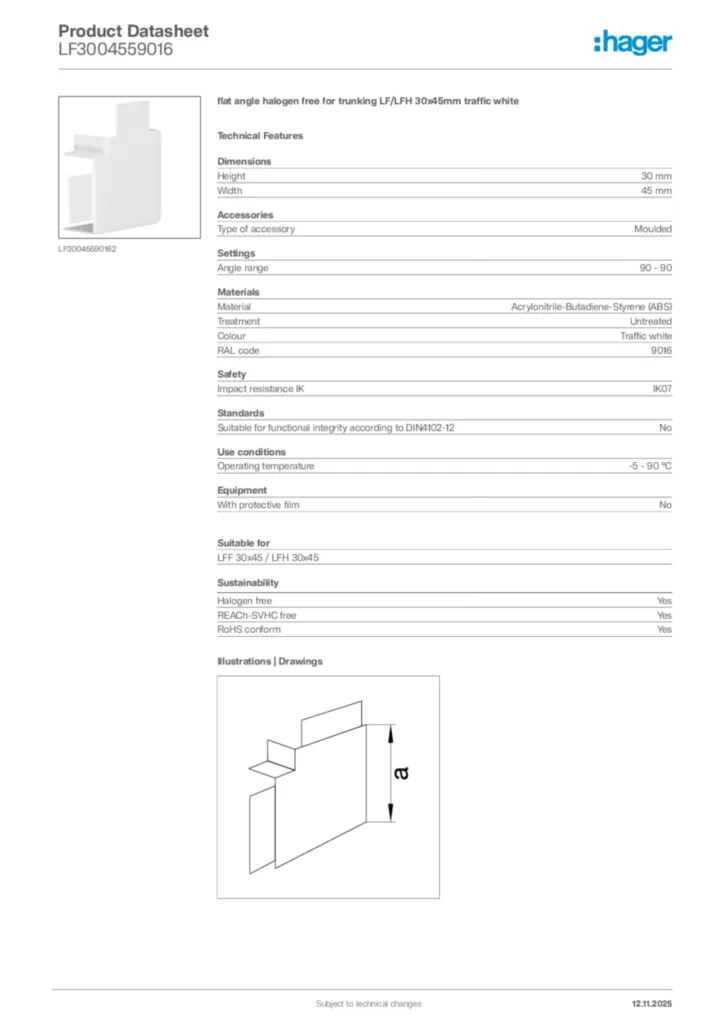

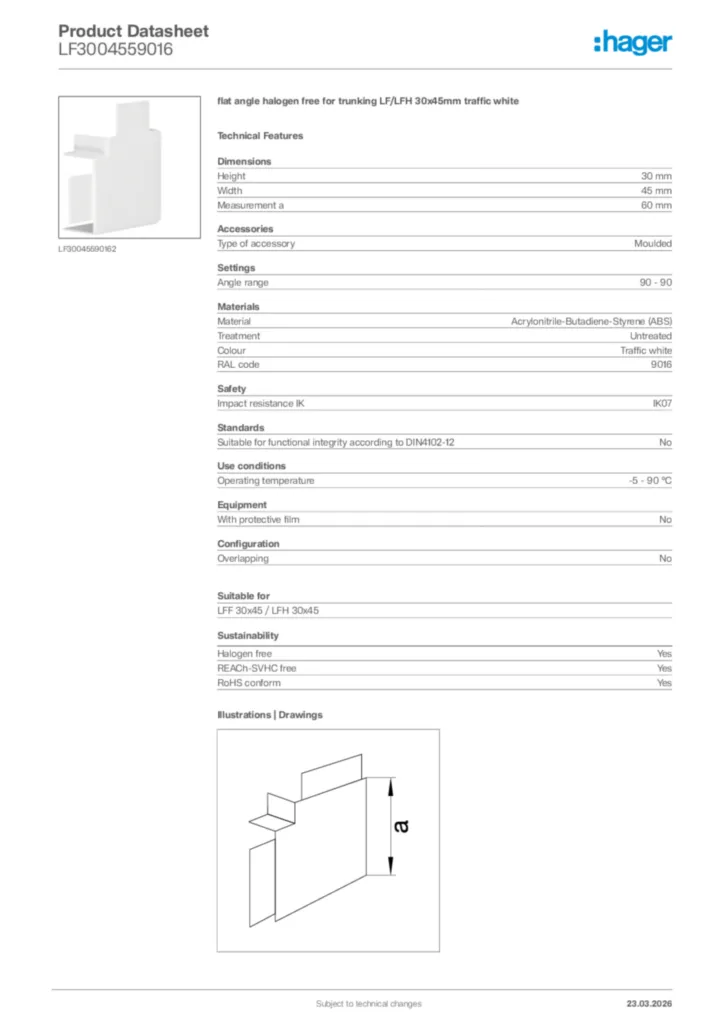

Product datasheet
