The Hager T-piece, halogen-free, for LF/LFF 30x30 mm trunking in traffic white (RAL 9016), enables neat 90° branching of cable runs. Moulded ABS part, 30 x 30 mm with 130 mm dimension “a”, IK07 impact resistance, operating -5 to 60°C. Ideal for residential and commercial cable management, it offers low-smoke safety and a seamless match with the LFF 30x30 series for a clean, space-efficient finish.

EAN

4012740011877

Packaging

1 Piece

Cable trunking systems - LF

T-piece for trunking 30x45mm Halogen-free IK07 LF/LFH Traffic white LF3003089016

Technical properties
Environmental value
Documentations
More products

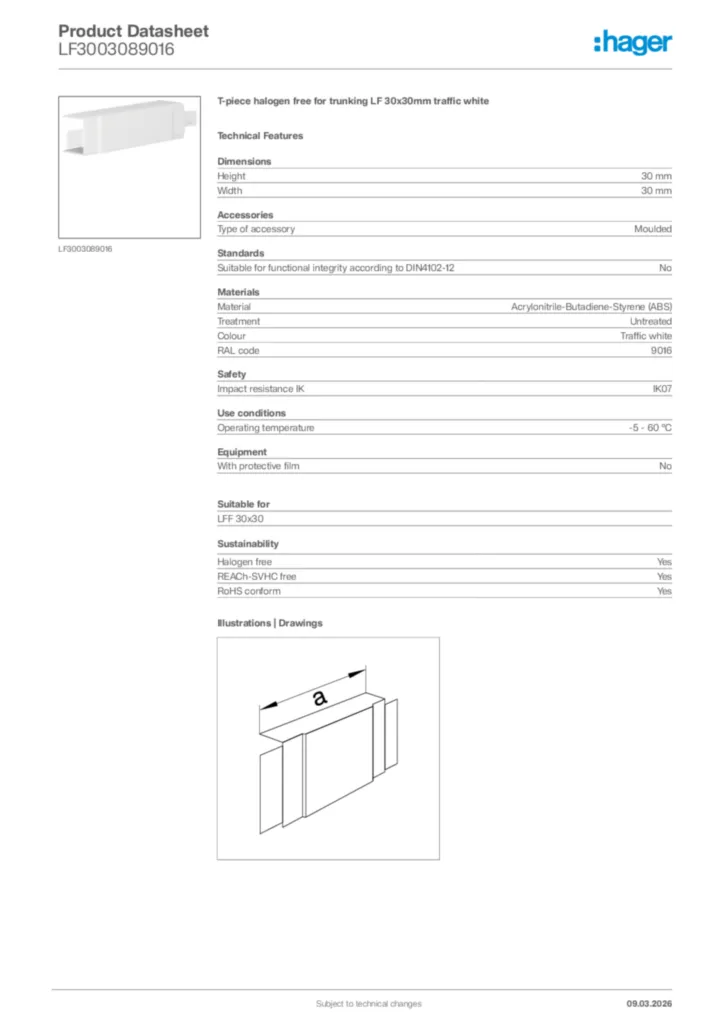

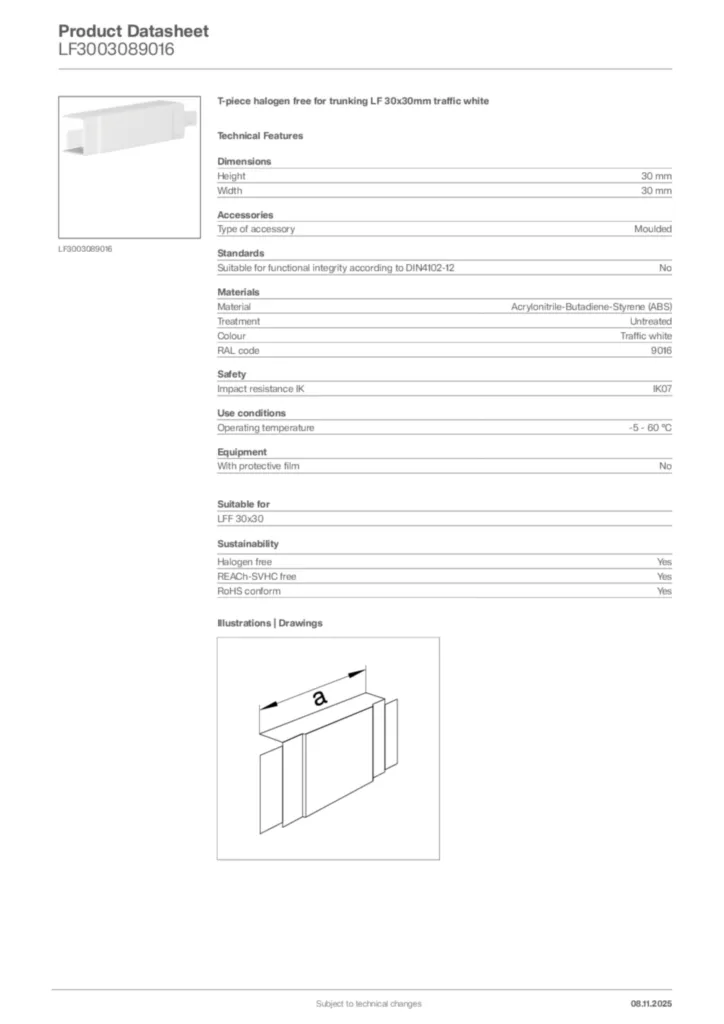

Download the data sheet

Technical properties

Height

30 mm
Width

30 mm
Measurement a

130 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

LFF 30x30

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
