MCB 3P 6kA C-20A 3M MSN320

EAN
3250614324031
Packaging
4

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

MCB 3P 6kA C-20A 3M

MSN320

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (22)
    • Cable terminal connec­tion 5 products available
    • Modular phase busbar 2 products available
    • AOB electronic TPN type A 2 products available
    • Rail terminal bar 1 products available

    Compatible products

    • Suitable with 10 products available

    Complete your system

    • Cable terminal connec­tion
    • Modular phase busbar
    • AOB electronic TPN type A
    • Rail terminal bar
    • Protective cap/strip for phase busbar
    • Auxil­i­aries contact block
    • Shunt release
    • Under voltage coil
    • Mech­anic accessories for low-­voltage compon­ents
    • Terminal cover
    • Phase separ­a­tion func­tions
    • Locking inter­locking func­tions
    • AOB elec­tronic TPN type A
    • KF83D

      Connection terminal 1P prong 1x35mm²
      EUR 0.00  / *
    • KF83A

      Connection terminal 1P prong 1x35mm²
      EUR 0.00  / *
    • KF82A

      Cable terminal 1P prong 2 cables 16mm²
      EUR 0.00  / *
    • KF81A

      Cable terminal 1P prong 1 cable 25mm²
      EUR 0.00  / *
    • KF84A

      Cable terminal 1P fork 1 cable 25mm²
      EUR 0.00  / *
    • KDN380G

      Insulated busbar 3P 80A fork 16mm² 18M
      EUR 0.00  / *
    • KDN380A

      Insulated busbar 3P 80A fork 16mm² 12M
      EUR 0.00  / *
    • BE163T

      Earth leakage add-on-block 3P 63A 100mA A Class 1mod
      EUR 0.00  / *
    • BF163T

      Earth leakage add-on-block 3P 63A 300mA A Class 1mod
      EUR 0.00  / *
    • KRN163

      Neutral connecting block 63A
      EUR 0.00  / *
    • KZ059

      Protective cover
      EUR 0.00  / *
    • KZN023

      Endcap for busbars 2P and 3P
      EUR 0.00  / *
    • MZ202

      Alarm contact 1C+1O 6A 240V AC
      EUR 0.00  / *
    • MZ201

      Auxiliary contact 1C+1O 6A 240V AC
      EUR 0.00  / *
    • MZ204

      Shunt trip 24-48V AC 12-48V DC
      EUR 0.00  / *
    • MZ203

      Shunt trip 230-415V AC 110-130V DC
      EUR 0.00  / *
    • MZ206

      Under voltage release 230V AC
      EUR 0.00  / *
    • LZ060

      Heat dissipation insert
      EUR 0.00  / *
    • MZN120

      Terminal shield / screw shield for MCB
      EUR 0.00  / *
    • MZN121

      1 set of 3 inter-pole barriers for MCB
      EUR 0.00  / *
    • MZN175

      Padlockable locking kit for MCB, RCCB and RCBO
      EUR 0.00  / *
    • BD163T

      Earth leakage add-on-block 3P 63A 30mA A Class 1mod
      EUR 0.00  / *

    Suitable with

    • JVC2400S16TW

      160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC3600S16TW

      160A TPN board, INVICTA, 36P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC4800S16TW

      250A TPN board, INVICTA, 48P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC2400S25TW

      160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC3600S25TW

      250A TPN board, INVICTA, 36P Chassis, ISO-STD-GR
      EUR 0.00  / *
    • JVC4800S25TW

      250A TPN board, INVICTA, 48P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC6000S16TW

      160A TPN board, INVICTA, 60P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC7200S16TW

      160A TPN board, INVICTA, 72P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC6000S25TW

      250A TPN board, INVICTA, 60P Chassis , ISO-STD-GR
      EUR 0.00  / *
    • JVC7200S25TW

      250A TPN board, INVICTA, 72P Chassis , ISO-STD-GR
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      20 A
    • Rated current -15°C
      24,4 A
    • Rated current -10°C
      24 A
    • Rated current -5°C
      23,5 A
    • Rated current at 0°C
      23,1 A
    • Rated current 5°C
      22,6 A
    • Rated current 10°C
      22,1 A
    • Rated current 15°C
      21,6 A
    • Rated current at 20°C
      21,1 A
    • Rated current 25°C
      20,5 A
    • Rated current 30°C
      20 A
    • Rated current 35°C
      19,4 A
    • Rated current at 40°C
      18,7 A
    • Rated current at 45°C
      18 A
    • Rated current at 50°C
      17,3 A
    • Rated current 55°C
      16,6 A
    • Rated current 60°C
      15,8 A
    • Rated current 65°C
      15 A
    • Rated current 70°C
      14,1 A
    Archi­tec­ture
    • Type of pole
      3P
    • Curve
      C
    Capa­city
    • Number of modules
      3
    Install­a­tion, mounting
    • Nominal tight­ening torque top terminal
      2,80 - 2,80 Nm
    • Nominal tight­ening torque down terminal
      2,80 - 2,80 Nm
    • Nominal tight­ening torque
      2,80 - 2,80 Nm
    • Type of bottom connec­tion for modular devices
      bicon­nect
    • Type of top connec­tion for modular devices
      Screw terminal
    • 360° mounting posi­tion possible
      Yes
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      6 kA
    Voltage
    • Rated oper­a­tional voltage Ue
      415 - 415 V
    • Type voltage supply
      AC
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Connec­tion
    • Cross-sec­tion of input and output with screws, for massive conductors
      1 - 35 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1 - 25 mm²
    • Cross-sec­tion of input with screws, for flex­ible conductors
      1 - 25 mm²
    • Cross-sec­tion of input with screws, for massive conductors
      1 - 35 mm²
    • Cross-sec­tion flex­ible conductor
      1 - 25 mm²
    • Cross-sec­tion rigid conductor
      1 - 35 mm²
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Class of energy limit­a­tion I²t
      3
    • Air humidity protec­tion
      For all climates
    • Oper­ating temper­ature
      -25 - 70 °C
    Power
    • Total power loss under IN
      8,9 W
    Connectivity
    • Type of connec­tion
      Screw terminal
    • Top connec­tion align­ment for modular devices
      Aligned terminal
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      83 mm
    • Width
      52,50 mm
    • Depth
      70 mm

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration MSN320
    PDF
    Hager RoHS report MSN320
    PDF

    Downloads

    • Product image

      Image MSN320 | Hager Australia

      Product Image MSN320

    • Product datasheet

      Image Hager Product data sheet MSN320 | Hager Australia

      Hager Product data sheet MSN320

      MCB 3P 6kA C-20A 3M

      PDF

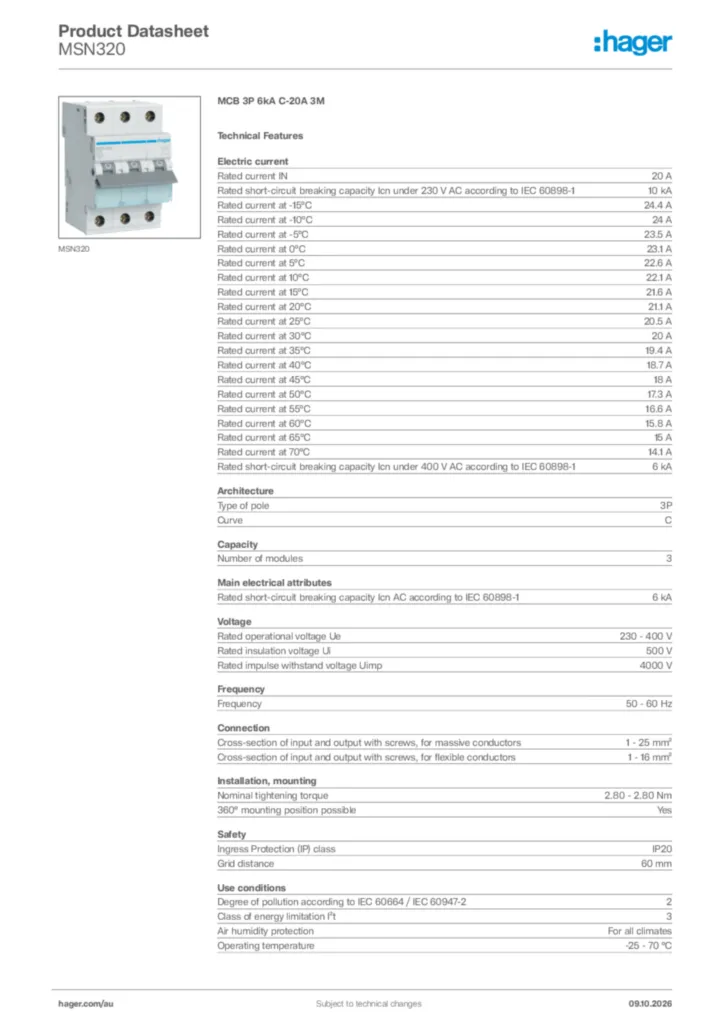

    • Product data sheet

      Image MSN1xx_MSN2xx_MSN3xx Product Data and Technical Specification | Hager Australia

      MSN1xx_MSN2xx_MSN3xx Product Data and Technical Specification

      Product data sheet en-GB 2020-06-19

      PDF
      109,94 kB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      PDF
      749,49 kB
      Image UKCA Declaration of Conformity | Hager Australia

      UKCA Declaration of Conformity

      PDF
      753,40 kB
    More documentation

    Discover more of this product range
