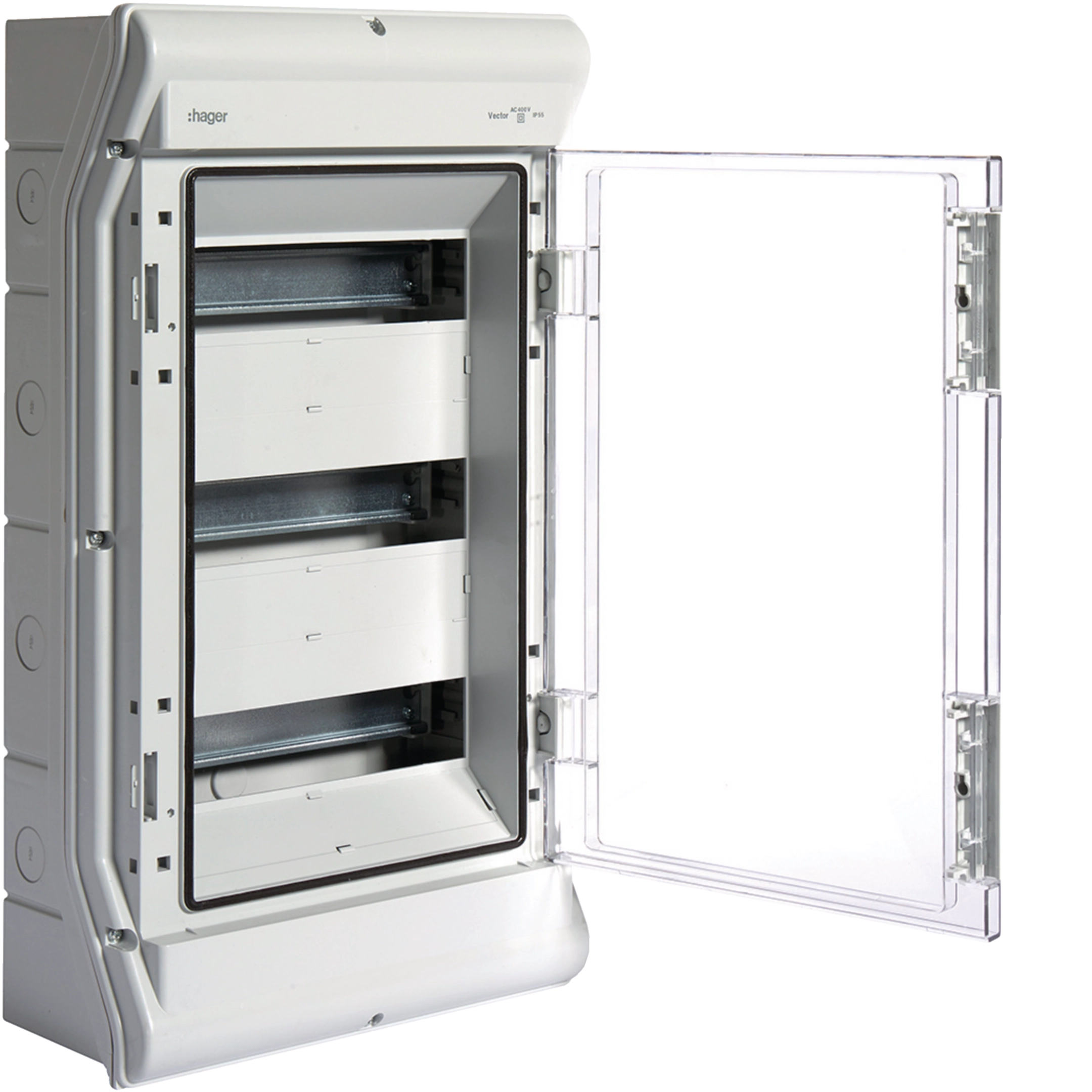

Enclosure, vector, JP 5x VE312U
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
-
Fixing modesurface-mounting
-
Depth of installed product151 mm
-
Height of installed product552 mm
-
Width of installed product310 mm
-
Type of door closingLatch
-
Door lockingwithout
-
InterlockableNo
-
Colourlight grey
-
Colourlight grey
-
RAL colourRAL 7035 - Light grey
-
Materialplastic
-
Type of surface treatmentuntreated
-
Number of rows3
-
Quantity of section in width1
-
Can be accessorizedYes
-
European directive WEEEconcerned
-
Protection index IPIP65
-
Protection classisol.class II
-
Operating temperature-25…40 °C
Downloads
-
Product image
-
Instruction manual
Instruction manuals for VE312U
PDF4 MB -
BIM Revit objects
BIM models for VE312U
Range : Vector. Switchboard IP65 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for VE312U
Range : Vector. Switchboard IP65 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
RFA1 MBBIM models for VE312U
Range Vector enclosures for UK (Lang. : en) IP55 with installation System no hosted-V2021
RFA1 MBBIM models for VE312U
Range Vector enclosures for UK (Lang. : en) IP55 with installation System hosted-V2021
RFA1 MB -

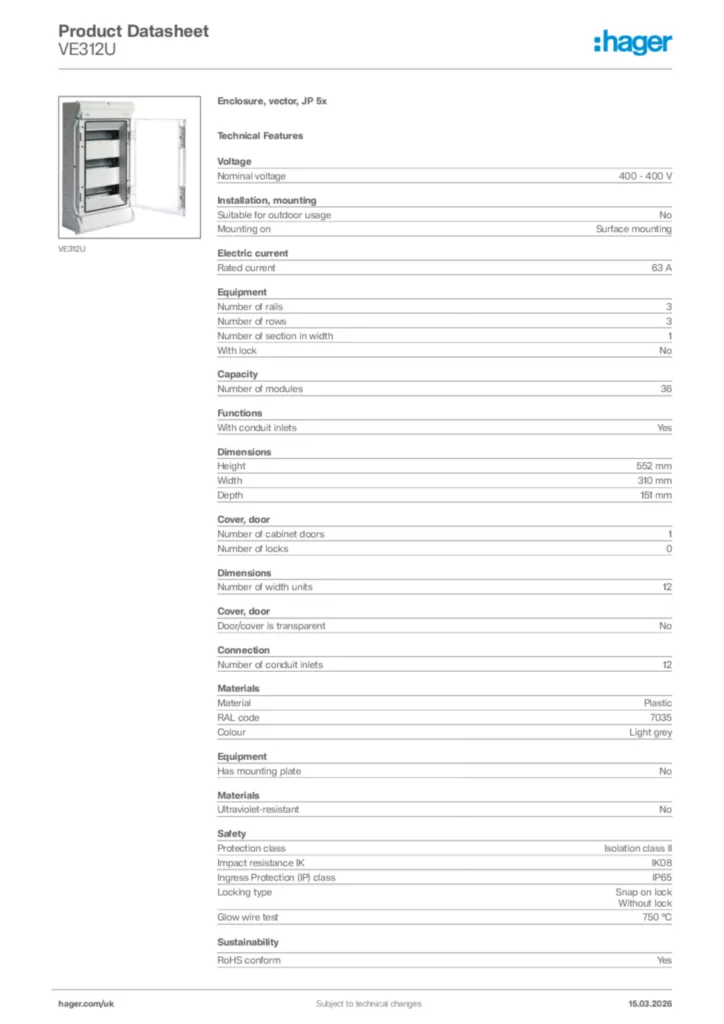

Product data sheet
Product data sheets for VE312U
UK_ENC_TDS_MinigammaandVectordimensions.pdf
PDF94 KB -
Declaration of conformity
EU Declaration of conformity for VE312U
Declaration
PDF814 KBEU Declaration of conformity for VE312U
Declaration
PDF836 KBEU Declaration of conformity for VE312U
Declaration
PDF258 KBEU Declaration of conformity for VE312U
Declaration
PDF257 KB -
PEP document
Product environmental profile for VE312U
PDF423 KBProduct environmental profile for VE312U
PDF343 KB -
RoHS report
Pollutant guidelines for VE312U
REACH-declaration 2023-10-20 (english)
PDF33 KBPollutant guidelines for VE312U
RoHS-declaration 2023-10-20 (english)
PDF32 KB
