Enclosure,vector,surface mounting,IP65,6Modules,with patch cord VE106D

EAN-Nr.
3250616452046
Packaging
1 piece
Price
£56.03
/ piece *
£56.03
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure,vector,surface mounting,IP65,6Modules,with patch cord

VE106D

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Accessor­ies/s­pare parts for terminals 1 products available
  • Lock system 1 products available
  • Cross-­con­nector for terminal block 1 products available
  • Push-in terminal 9 products available

Complete your system

  • Accessor­ies/s­pare parts for terminals
  • Lock system
  • Cross-­con­nector for terminal block
  • Push-in terminal
  • VZ744

    Adapter, vector, for control terminal
    £11.55  / piece*
  • VZ311

    Key lock, vector, with 2 keys
    £26.95  / piece*
  • KN99N

    Terminal, QC, neutral, jumper, 1 Set=10piece
    £39.00  / piece*
  • KN99E

    Terminal, QC, earth, jumper, 1 Set=10piece
    £39.00  / piece*
  • KN22N

    Terminal, QuickConnect, neutral, 22 connections
    £14.69  / piece*
  • KN22E

    Terminal, QuickConnect, earth, 22 connections
    £14.55  / piece*
  • KN18N

    Terminal, QuickConnect, neutral, 18 connections
    £9.92  / piece*
  • KN18E

    Terminal, QuickConnect, earth, 18 connections
    £9.92  / piece*
  • KN14N

    Terminal, QuickConnect, neutral, 14 connections
    £8.40  / piece*
  • KN14E

    Terminal, QuickConnect, earth, 14 connections
    £8.48  / piece*
  • KN06N

    Terminal, QuickConnect, neutral, 6 connections
    £6.33  / piece*
  • KN06E

    Terminal, QC, earth, 6 connections
    £6.40  / piece*

Technical characteristics

Connec­tion
  • Number of conduit inlets
    3
Voltage
  • Nominal voltage
    400 - 400 V
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    63 A
Equip­ment
  • Number of rails
    1
  • Number of rows
    1
  • Number of section in width
    1
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    6
Func­tions
  • With conduit inlets
    Yes
Dimen­sions
  • Height
    190 mm
  • Width
    164 mm
  • Depth
    113 mm
  • Number of width units
    6
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    0
  • Door/­cover is trans­parent
    Yes
Mater­ials
  • Material
    Plastic
  • RAL code
    7035
  • Colour
    Light grey
  • Ultra­vi­olet-res­istant
    No
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP65
  • Locking type
    Snap on lock, Without lock
  • Glow wire test
    750 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
PDF
25,39 MB
Hager REACH declaration VE106D
PDF
Hager RoHS report VE106D
PDF

Downloads

  • Product image

    Image VE106D | Hager

    Product Image VE106D

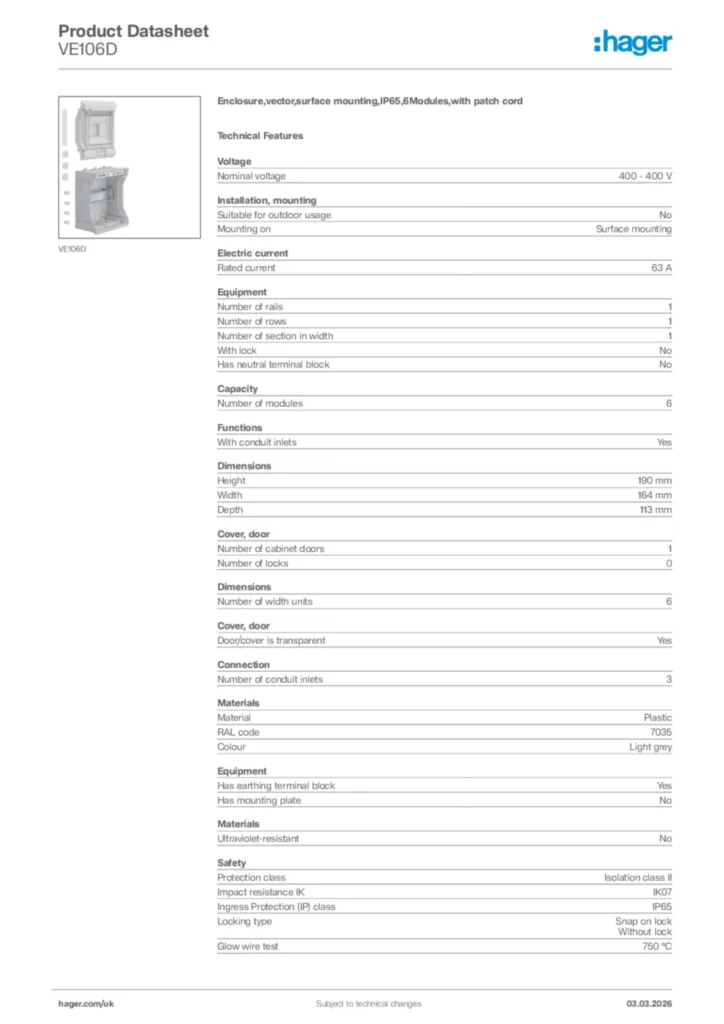

  • Product datasheet

    Image Hager Product data sheet VE106D | Hager

    Hager Product data sheet VE106D

    Enclosure,vector,surface mounting,IP65,6Modules,with patch cord

    PDF

  • Installation manual

    Image Installation manual International 2022-02-07 | Hager

    Installation manual International 2022-02-07

    PDF
    4,24 MB

  • BIM Revit objects

    Image Range : Vector. Switchboard IP65 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Vector. Switchboard IP65 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,31 MB
    Image Range : Vector. Switchboard IP65 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Vector. Switchboard IP65 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,30 MB
    Image Range Vector enclosures for UK (Lang. : en) IP55 with installation System hosted-V2021 | Hager

    Range Vector enclosures for UK (Lang. : en) IP55 with installation System hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,30 MB
    Image Range Vector enclosures for UK (Lang. : en) IP55 with installation System no hosted-V2021 | Hager

    Range Vector enclosures for UK (Lang. : en) IP55 with installation System no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,30 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-11-14

    PDF
    257,02 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-05-09

    PDF
    836,07 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-12-19

    PDF
    258,36 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-02-18

    PDF
    814,05 kB
