    • SRD15005
    EAN-Nr.
    4049857063888
    Packaging
    1 piece
    • Current trans­formers for busbar systems and accessories

    Bar/Cable-through Current Transformer BG 613 1500/5A 5VA Class 1 SRD15005

    Price
    £142.32
    / piece *
    £142.32
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Bar/Cable-through Current Transformer BG 613 1500/5A 5VA Class 1

    SRD15005

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      Plug-in current trans­former
    Func­tions
    • Accuracy class
      1
    Power
    • Power
      5 VA
    • Total power loss under IN
      13.50 W
    Dimen­sions
    • Diameter of opening
      45 mm
    • Height
      108 mm
    • Width
      85 mm
    • Depth
      30 mm
    • Height of opening
      45 mm
    • Width of opening
      65 mm
    Connectivity
    • Type of connec­tion
      Screw terminal
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated insu­la­tion voltage Ui
      3,000 V
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 40 °C
    • Stor­age/trans­port temper­ature
      -40 - 40 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1.5 - 6 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 6 mm²
    Safety
    • Ingress Protec­tion (IP) class
      IP10
    Elec­tric current
    • Max. intensity of primary
      1,500 A
    • Max. intensity of secondary
      5 A
    Install­a­tion, mounting
    • Mounting on
      DIN rail, Mounting plate

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration SRD15005
    PDF
    Hager RoHS report SRD15005
    PDF

    Downloads

    • Product image

      Image SRD15005 | Hager

      Product Image SRD15005

    • Product datasheet

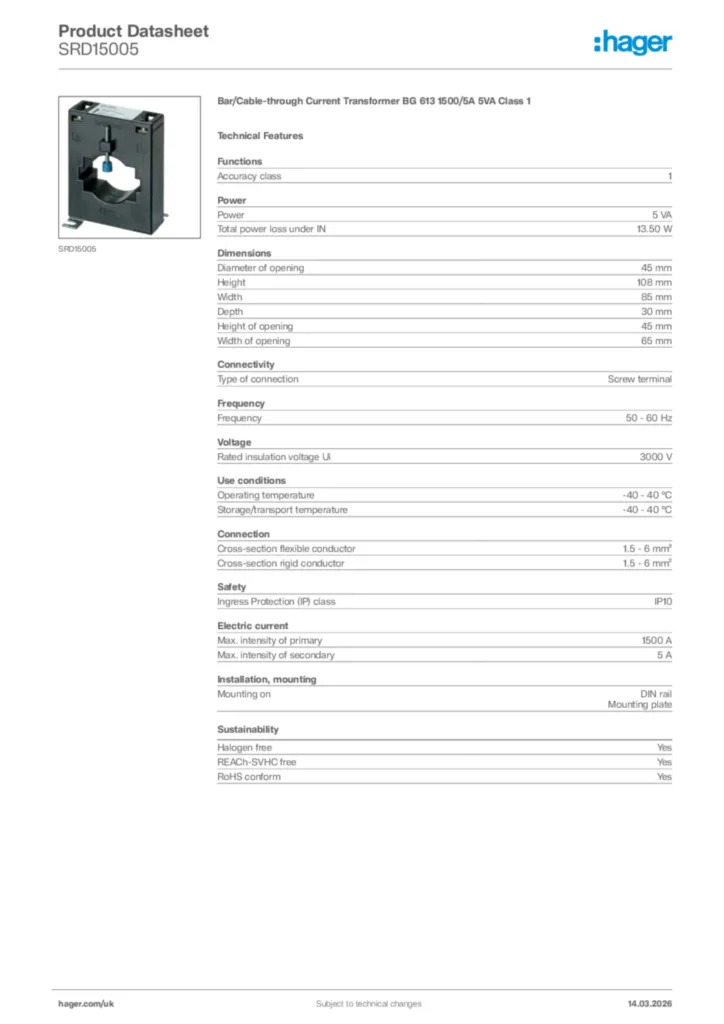

      Image Hager Product data sheet SRD15005 | Hager

      Hager Product data sheet SRD15005

      Bar/Cable-through Current Transformer BG 613 1500/5A 5VA Class 1

      PDF

    • Product data sheet

      Image UK_MD_TDS_CurrentTransformers | Hager

      UK_MD_TDS_CurrentTransformers

      Product data sheet en-GB 2024-03-22

      PDF
      238,09 kB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB, de-DE 2023-12-11

      PDF
      581,43 kB
