Bar/Cable-through Current Transformer BG 113 100/5A 2,5VA Class 1 SRA01005
EAN-Nr.
4049857139316
Packaging
1 piece
Price
£55.21
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Main electrical features
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage3 kV
Dimensions
-
Depth of installed product30 mm
-
Height of installed product70 mm
-
Width of installed product49.5 mm
-
Height of opening20 mm
Power
-
Total power loss under IN0.7 W
Connection
-
Connection cross-sect. flexible conductor1,5 / 6mm²
-
Connection cross-sect. rigid cable1,5 / 6mm²
-
Type of connectionscrew
Use conditions
-
Operating temperature-40…40 °C
Downloads
-
Product image
-

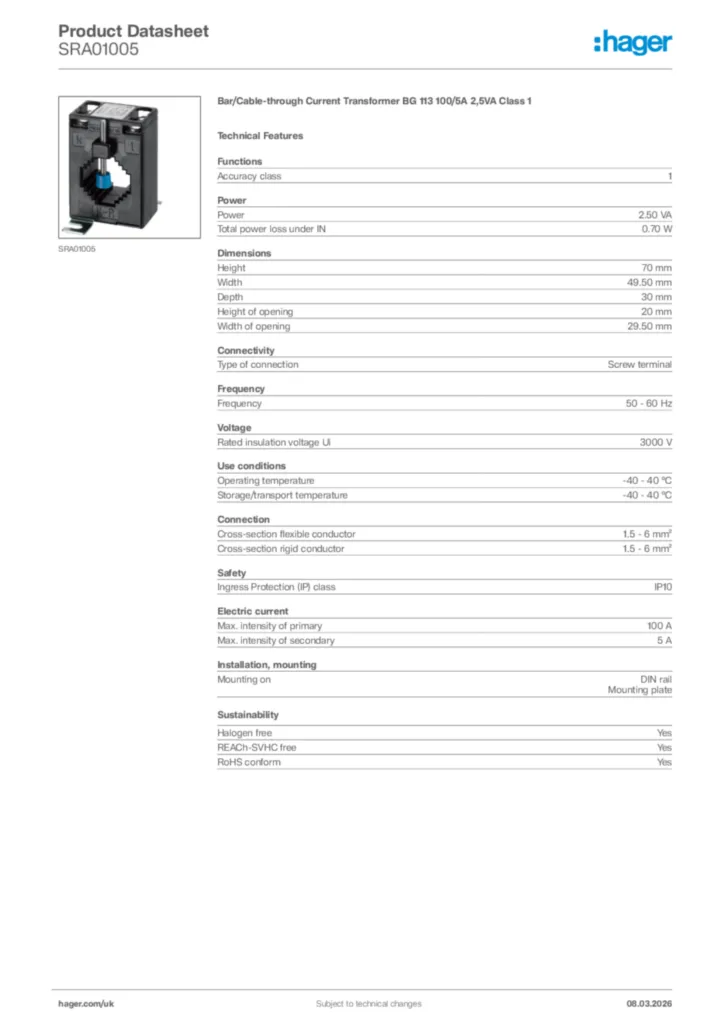

Product data sheet
Product data sheets for SRA01005
UK_MD_TDS_CurrentTransformers
PDF238 KB -
Declaration of conformity
EU Declaration of conformity for SRA01005
EU Declaration of Conformity
PDF581 KB -
RoHS report
Pollutant guidelines for SRA01005
RoHS-declaration 2023-10-20 (english)
PDF32 KB
Pollutant guidelines for SRA01005
REACH-declaration 2023-10-20 (english)
PDF33 KB
