Bar/Cable-through Current Transformer BG 213 50/5A 1,5VA Class 1 SRA00505
EAN-Nr.
4049857063857
Packaging
1 piece
Price
£51.56
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Specific identificaton attributes for Protection
-
Filter Type productPlug-in current transformer
Functions
-
Accuracy class1
Power
-
Power1.50 VA
-
Total power loss under IN0.50 W
Dimensions
-
Diameter of opening20 mm
-
Height78 mm
-
Width60 mm
-
Depth30 mm
-
Height of opening20 mm
-
Width of opening20 mm
Connectivity
-
Type of connectionScrew terminal
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated insulation voltage Ui3,000 V
Use conditions
-
Operating temperature-40 - 40 °C
-
Storage/transport temperature-40 - 40 °C
Connection
-
Cross-section flexible conductor1.5 - 6 mm²
-
Cross-section rigid conductor1.5 - 6 mm²
Safety
-
Ingress Protection (IP) classIP10
Electric current
-
Max. intensity of primary50 A
-
Max. intensity of secondary5 A
Installation, mounting
-
Mounting onDIN rail, Mounting plate
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

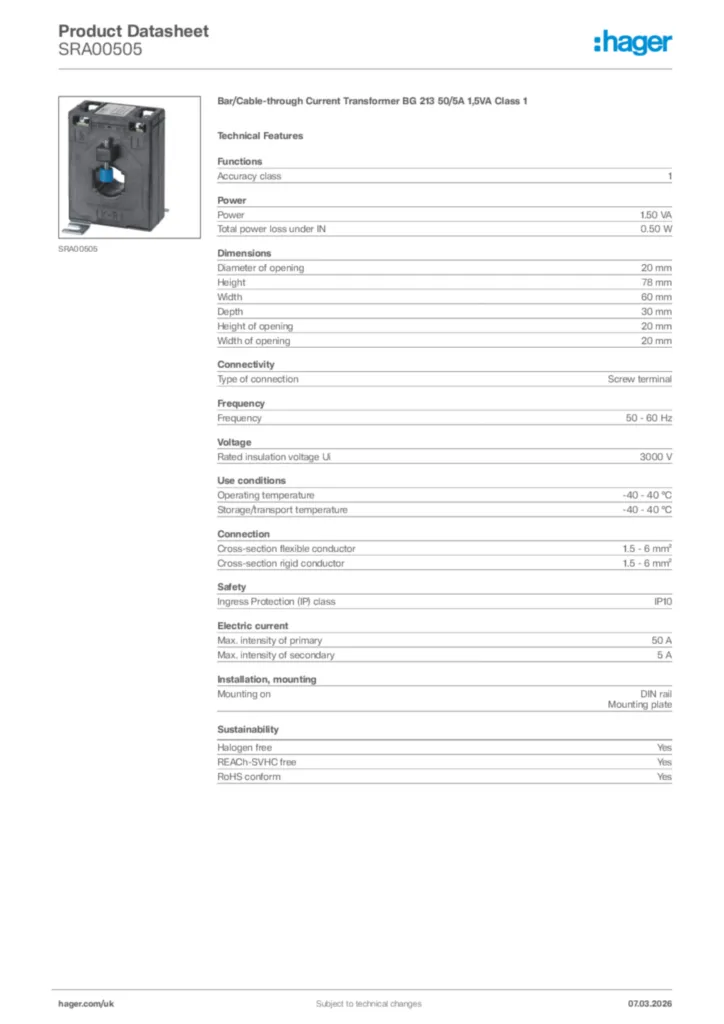

Product datasheet
Hager Product data sheet SRA00505
Bar/Cable-through Current Transformer BG 213 50/5A 1,5VA Class 1
PDF -
Product data sheet
UK_MD_TDS_CurrentTransformers
Product data sheet en-GB 2024-03-22
PDF238,09 kB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB, de-DE 2023-12-11
PDF581,43 kB
