    • SPB440D
    EAN-Nr.
    3250615515582
    Packaging
    1 piece

    Surge Protection Device 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA SPB440D

    Price
    £425.10
    / piece *
    £425.10
    / piece *
    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Surge Protection Device 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA

    SPB440D

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    Download the sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems 2 products available

    Complete your system

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems
    • SPB040D

      Cartridge L-N Uc 275V In 20kA Imax 40kA Up 1, 35kV
      £86.48  / piece*
    • SPB040N

      Cartridge N-PE Uc 260V In 20kA Imax 40kA Up 1.5kV
      £72.06  / piece*

    Technical characteristics

    Capa­city
    • Number of modules
      4
    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 415 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      275 V
    • Voltage protec­tion level Up according to IEC 61643-1
      1.35 kV
    • Voltage protec­tion level Up L-PE/N-PE according to IEC 61643-11
      1.6 kV
    • Voltage protec­tion level Up N-PE IEC 61643-11
      1,500 V
    • Voltage level Up L-N/PEN IEC 61643-11
      1,350 V
    • Over­voltage category according to IEC 60947-1
      3
    Elec­tric current
    • Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643
      20 kA
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      125 A
    • Max. over­cur­rent protec­tion device, series connec­tion (fuse)
      80 A
    • Max. discharge current (Imax)
      40 kA
    • Max. discharge (Imax) L-N(PEN)/ N-PE
      40 kA
    • Follow current inter­rupting rating
      0.1 kA
    Dimen­sions
    • Height
      89.80 mm
    • Width
      71 mm
    • Depth
      65.7 mm
    • Strip­ping length
      16 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Poly­amide (PA), Poly­ester
    Network config­ur­a­tion
    • Network type
      TN-S, TT
    • Network TN
      No
    • Network TN-C
      No
    • Network DC
      No
    • Network IT
      No
    • Network TT
      Yes
    • Network TN-C-S
      No
    • Network TN-S
      Yes
    Equip­ment
    • With remote signalling contact
      No
    • Nominal load current IL
      80 A
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1.5 - 25.0 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1.5 - 35.0 mm²
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3 - 4.5 Nm
    • Suit­able for indoor usage
      Yes
    Archi­tec­ture
    • Type of pole
      3P+N
    • Neutral posi­tion
      Left
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      No
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Controls and indic­ators
    • With indic­ator lamp
      Yes
    Func­tions
    • Suit­able for addi­tional system config­ur­a­tion
      No
    Fuse
    • Fuse char­ac­ter­istics
      gG
    Internal use only
    • Number of half modules of 17,5 mm
      8
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration SPB440D
    PDF
    Hager RoHS report SPB440D
    PDF

    Downloads

    • Product image

      Image SPB440D | Hager

      Product Image SPB440D

    • Product datasheet

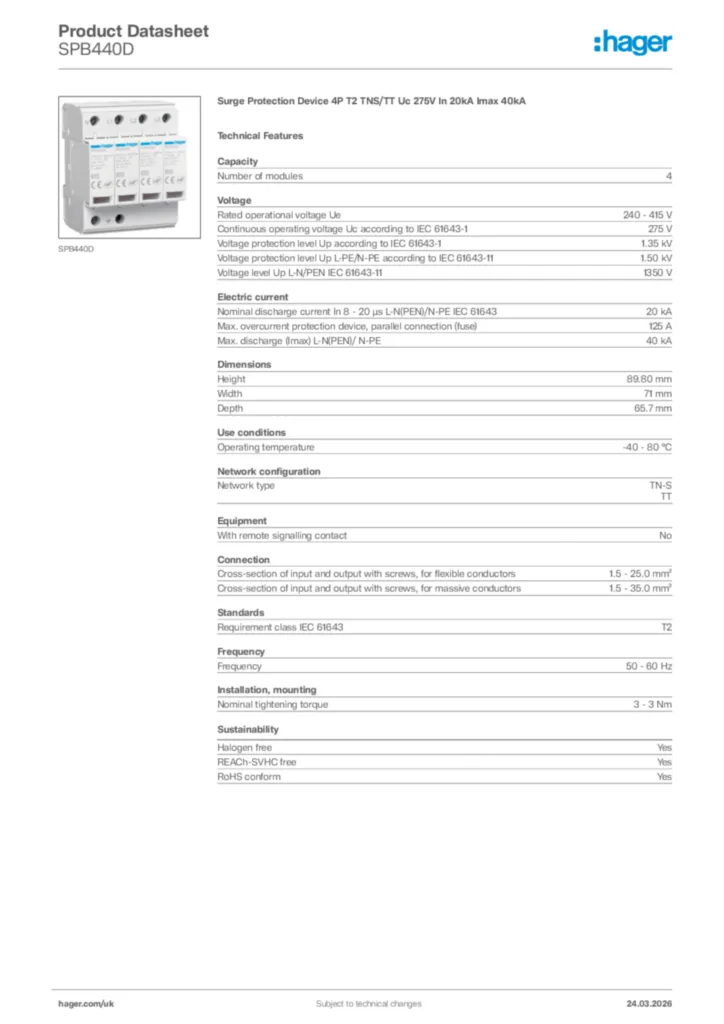

      Image Hager Product data sheet SPB440D | Hager

      Hager Product data sheet SPB440D

      Surge Protection Device 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA

      PDF

    • Installation manual

      Image Installation manual International 2022-06-14 | Hager

      Installation manual International 2022-06-14

      PDF
      910,77 kB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-15 | Hager

      Declaration of conformity en-US 2026-07-15

      PDF
      269,03 kB
