SBN363

3-pole, 63A Modular Switch
EAN
3250615510228
Quantity
1
Trade price*
£58.47 /prt.*
  • Architecture
    • Number of poles
      • 3 P
  • Main electrical features
    • Rated operational voltage Ue
      • 400 V
    • Rated current
      • 63 A
  • Voltage
    • Rated insulation voltage
      • 440 V
    • Rated impulse withstand voltage
      • 6000 V
  • Dimensions
    • Depth of installed product
      • 68 mm
    • Height of installed product
      • 83 mm
    • Width of installed product
      • 52.5 mm
  • Power
    • Total power loss under IN
      • 6.9 W
  • Endurance
    • Electrical durability at nominal load in AC22 in operating cycles
      • 5000
    • Number of mechanical operations
      • 60000
  • Capacity
    • Number of modules
      • 3
  • Use conditions
    • Operating temperature
      • -20…50 °C
Documentations

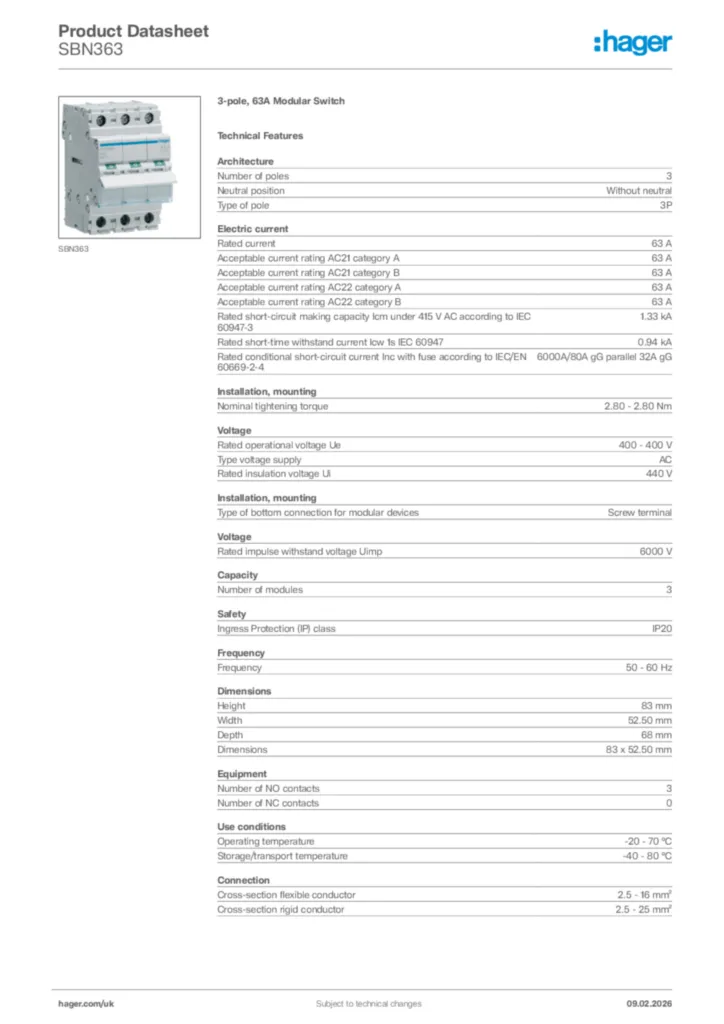

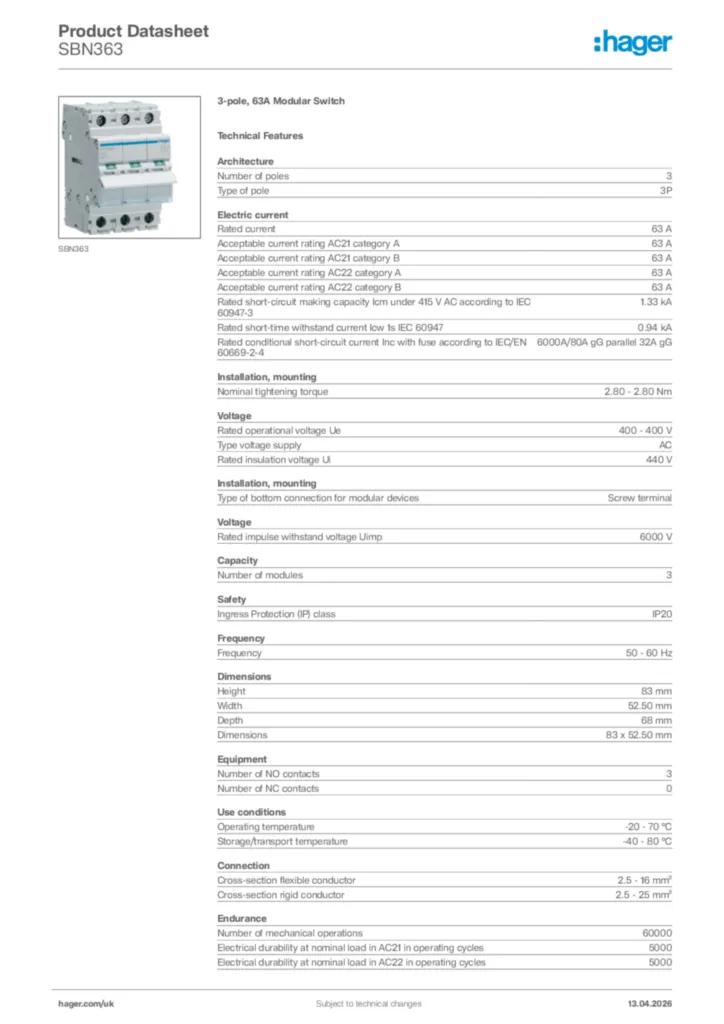

Product data sheets for SBN363 58 KBPDFDownload
Product environmental profile for SBN363 440 KBPDFDownload
More documentation
