SBN290

2-pole, 100A Modular Switch
EAN
3250615510297
Quantity
1
Trade price*
£43.06 /prt.*
More Information
Closing ability with 400V in AC23A1692 A
Rated short-time withstand current 1s1.2 kA
Rated current100 A
Short-circuit current with gI-gG fuses1200 A
Protection index IPIP20
Cage clamp positionin line
Thermal rated current outside of housings100 A
European directive WEEEconcerned
Height of installed product83 mm
Altitude2000 m
Rated operational current in AC21 category A100 A
Rated operational current in AC21category B100 A
Acceptable current rating with AC22 category A100 A
Acceptable current rating with AC22 category B100 A
Frequency50;60 Hz
Tightening torque3,6Nm
Degree of pollution according to IEC 60664 / IEC 60947-22
Electrical durability at nominal load in AC21in operating cycles2500
Electrical durability at nominal load in AC22 in operating cycles2500
Frequency (range for ETIM)50/60 Hz
Device familySBN
Width of installed product35 mm
Number of mechanical operations40000
Operating temperature-20/50 °C
Rated impulse withstand voltage6000 V
With signal lampNo
Rated operational voltage Ue400 V
Storage temperature-40/80 °C
Number of poles2 P
Standard textIEC 60947-3
Connection cross-sect. flexible conductor6 ; 35mm²
Connection cross-sect. rigid cable6 ; 50mm²
Type of voltage input 1AC
Quantity of NO contacts2
Type of pole2 P
Quantity of NC contacts0
Quantity of INV contacts0
Total power loss under IN11 W
Power loss per pole at In5.5 W
Depth of installed product68 mm
Neutral positionwithout neutral
Type of order Break switch
Type of connectionwith screw
Number of modules2
Quantity of half modules of 17,7mm4
Rated insulation voltage440 V
UnitPCE
EAN3250615510297
Sales status3C
See more features
Documentations
Product environmental profile for SBN290 440 kbpdfDownload

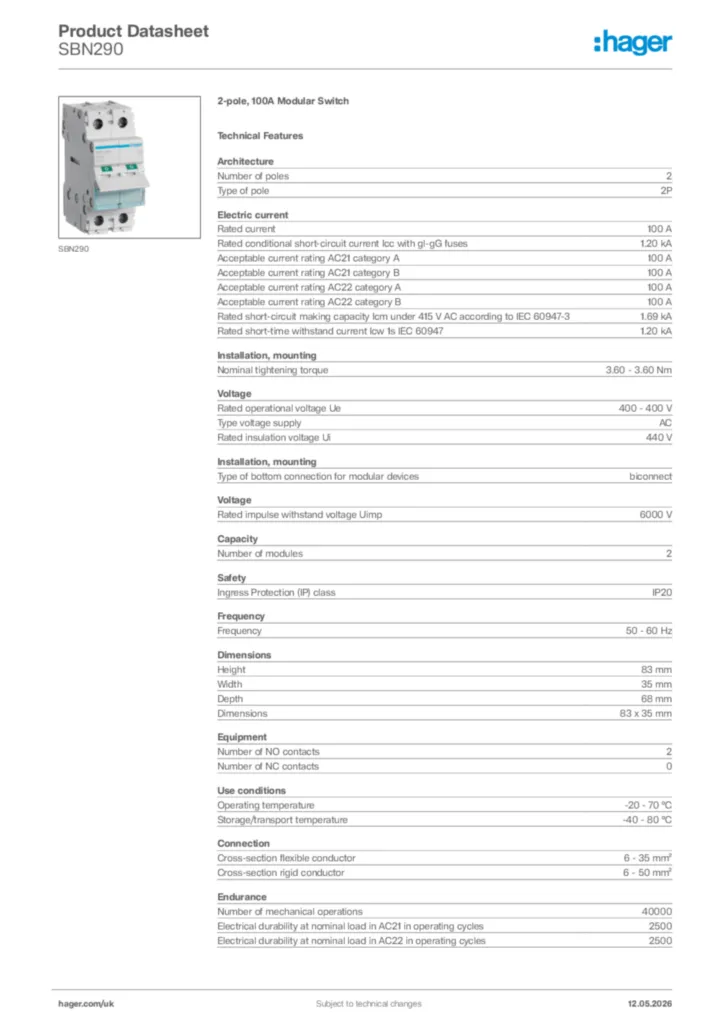

Product data sheets for SBN290 58 kbpdfDownload
