1-pole, 63A Modular Switch SBN163
EAN-Nr.
3250615510204
Packaging
1 piece
Price
£34.24
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionwithout neutral
-
Number of poles1 P
-
Type of pole1 P
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage440 V
-
Rated impulse withstand voltage6000 V
Dimensions
-
Depth of installed product68 mm
-
Height of installed product83 mm
-
Width of installed product17.5 mm
Power
-
Total power loss under IN2.3 W
Endurance
-
Electrical durability at nominal load in AC22 in operating cycles5000
-
Number of mechanical operations60000
Installation, mounting
-
Tightening torque2,8Nm
Connection
-
Connection cross-sect. flexible conductor2,5 / 16mm²
-
Connection cross-sect. rigid cable2,5 / 25mm²
-
Type of connectionwith screw
Standards
-
Standard textIEC 60947-3 ; IEC/EN 60669-2 ; IEC/EN 60669-4
Use conditions
-
Operating temperature-20…50 °C
Downloads
-
Product image
-

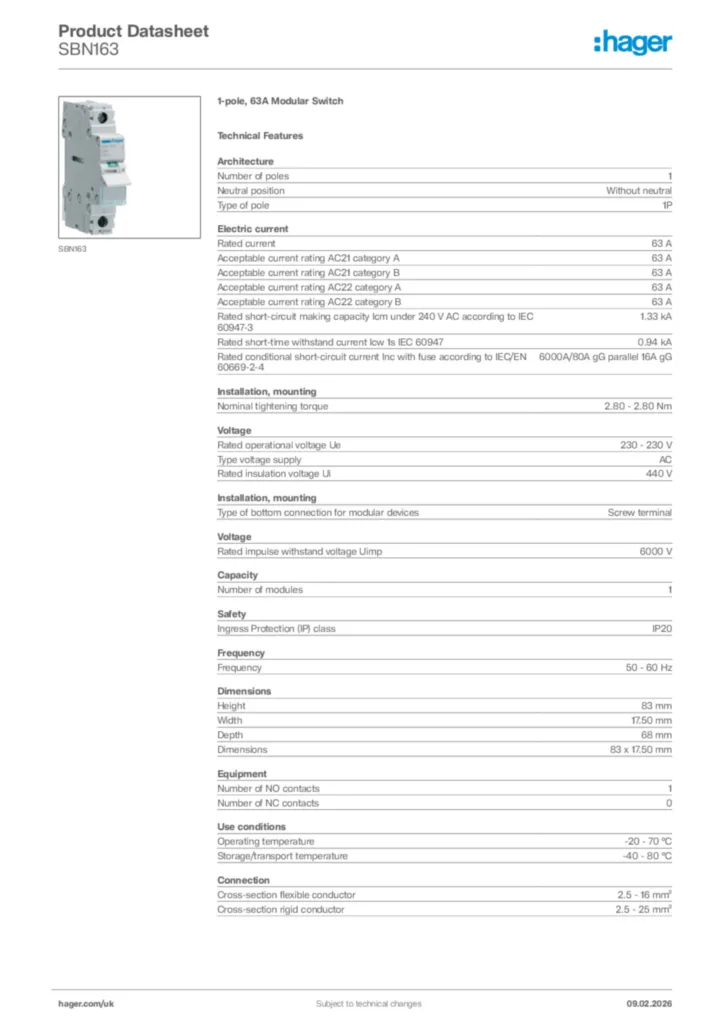

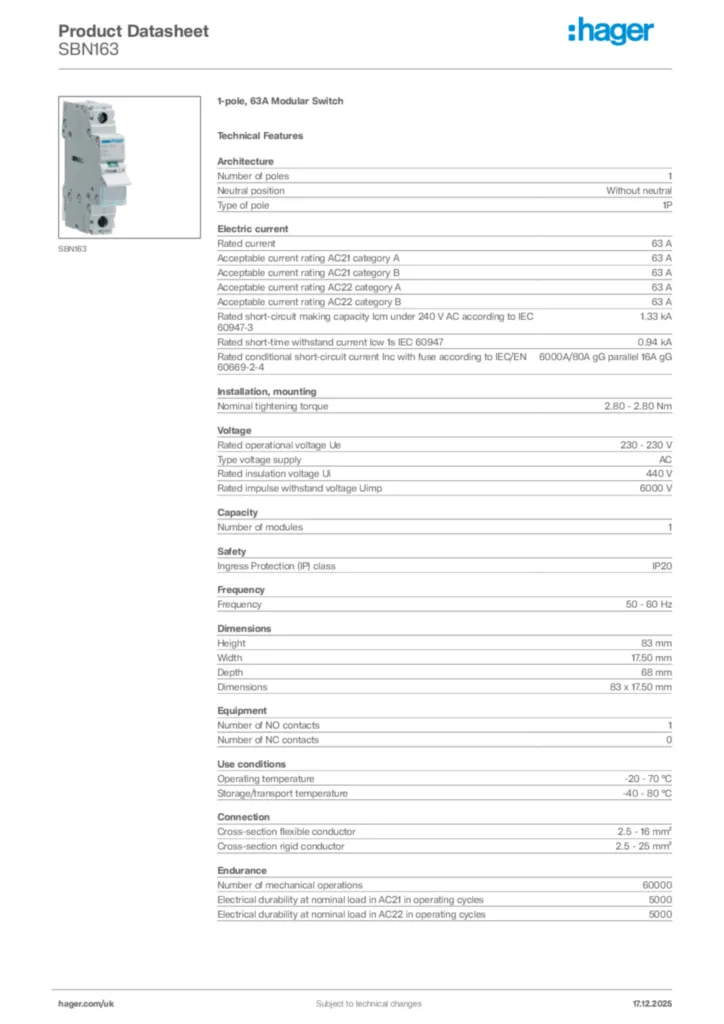

Product data sheet
