2-pole, 125A Modular Switch SBN299

Name: SBN299
Brand: Hager
SKU: SBN29911
Price: 67.07 GBP

EAN-Nr.

3250615510334

Packaging

1 piece

Price

£67.07

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

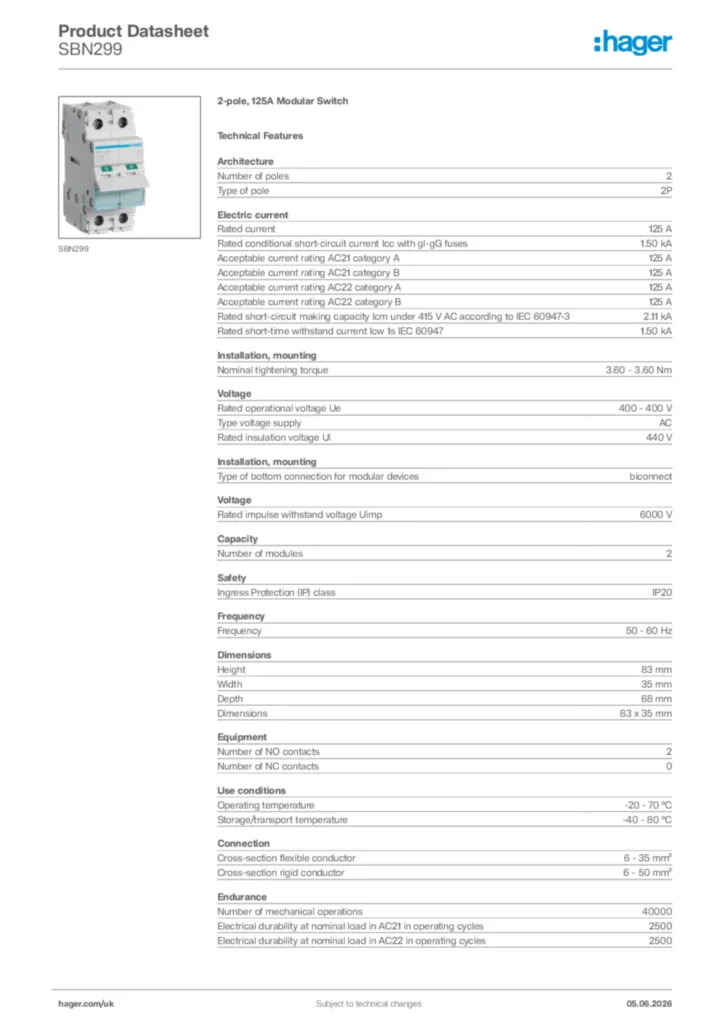

Download the sheet

Complete your system

Optional accessories

Phase separation functions 1 products available
Locking interlocking functions 1 products available

Technical characteristics

Number of poles

2
Neutral position

Without neutral
Type of pole

2P

Rated current

125 A
Breaking capacity 400 V AC23A

2,115 A
Rated conditional short-circuit current Icc with gl-gG fuses

1.50 kA
Acceptable current rating AC21 category A

125 A
Acceptable current rating AC21 category B

125 A
Acceptable current rating AC22 category A

125 A
Acceptable current rating AC22 category B

125 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

2.11 kA
Rated short-time withstand current Icw 1s IEC 60947

1.50 kA

Nominal tightening torque

3.60 - 3.60 Nm
Type of bottom connection for modular devices

Screw terminal

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

6,000 V

Number of modules

2

Ingress Protection (IP) class

IP20

Frequency

50 - 60 Hz

Height

83 mm
Width

35 mm
Depth

68 mm

Number of NO contacts

2
Number of NC contacts

0

Operating temperature

-20 - 70 °C
Storage/transport temperature

-40 - 80 °C

Cross-section flexible conductor

6 - 35 mm²
Cross-section rigid conductor

6 - 50 mm²

Number of mechanical operations

40,000
Electrical durability at nominal load in AC21 in operating cycles

2,500
Electrical durability at nominal load in AC22 in operating cycles

2,500

Total power loss under IN

16 W
Power loss per pole at In

8 W

Down connection alignment for modular devices

Aligned terminal
Top connection alignment for modular devices

Aligned terminal

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

REACH conform Yes
