SBN140

1-pole, 40A Modular Switch
EAN
3250615510167
Quantity
1
Trade price*
£17.78 /prt.*
More Information
Closing ability with 400V in AC23A846 A
Rated short-time withstand current 1s0.6 kA
Rated short-circuit making capacity Icm under 240V AC according IEC 60947-3846 A
Rated current40 A
Short-circuit current with gI-gG fuses600 A
Protection index IPIP20
Cage clamp positionin line
Thermal rated current outside of housings40 A
European directive WEEEconcerned
Height of installed product83 mm
Altitude2000 m
Rated operational current in AC21 category A40 A
Rated operational current in AC21category B40 A
Acceptable current rating with AC22 category A40 A
Acceptable current rating with AC22 category B40 A
Frequency50;60 Hz
Tightening torque2,8Nm
Degree of pollution according to IEC 60664 / IEC 60947-22
Electrical durability at nominal load in AC21in operating cycles5000
Electrical durability at nominal load in AC22 in operating cycles5000
Frequency (range for ETIM)50/60 Hz
Device familySBN
Width of installed product17.5 mm
Number of mechanical operations60000
Operating temperature-20/50 °C
Rated impulse withstand voltage6000 V
With signal lampNo
Rated operational voltage Ue230 V
Storage temperature-40/80 °C
Number of poles1 P
Standard textIEC 60947-3 ; IEC ; EN 60669-2 ; IEC ; EN 60669-4
Connection cross-sect. flexible conductor2,5 ; 16mm²
Connection cross-sect. rigid cable2,5 ; 25mm²
Type of voltage input 1AC
Quantity of NO contacts1
Type of pole1 P
Quantity of NC contacts0
Quantity of INV contacts0
Total power loss under IN1.1 W
Power loss per pole at In1.1 W
Depth of installed product68 mm
Neutral positionwithout neutral
Type of order Break switch
Type of connectionwith screw
Number of modules1
Quantity of half modules of 17,7mm2
Rated insulation voltage440 V
UnitPCE
EAN3250615510167
Sales status3C
See more features
Documentations

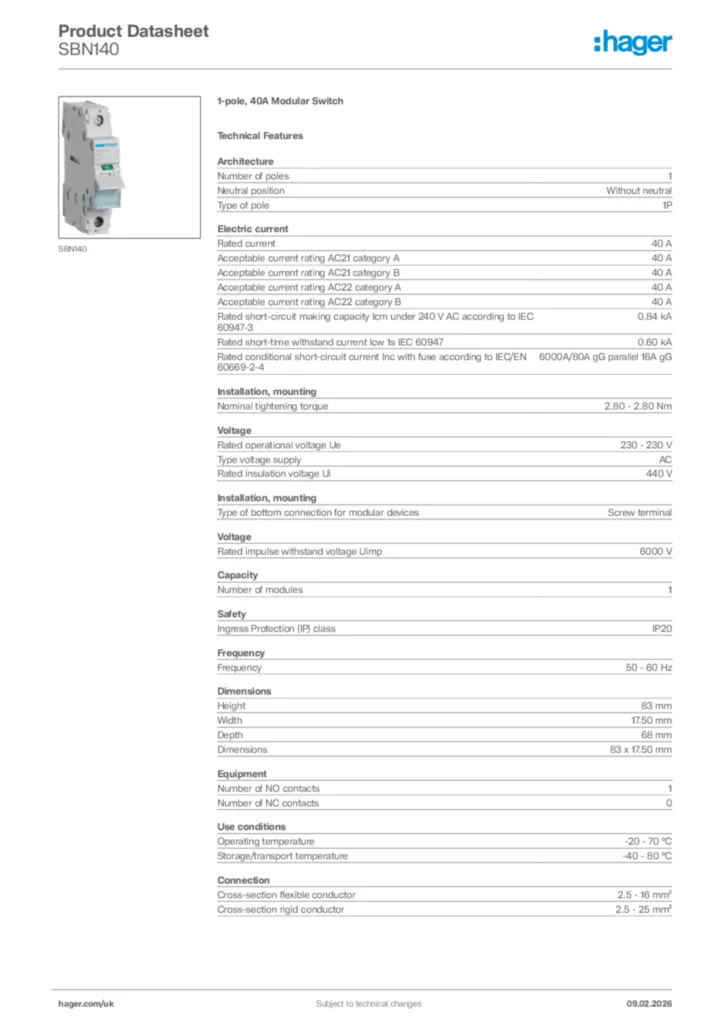

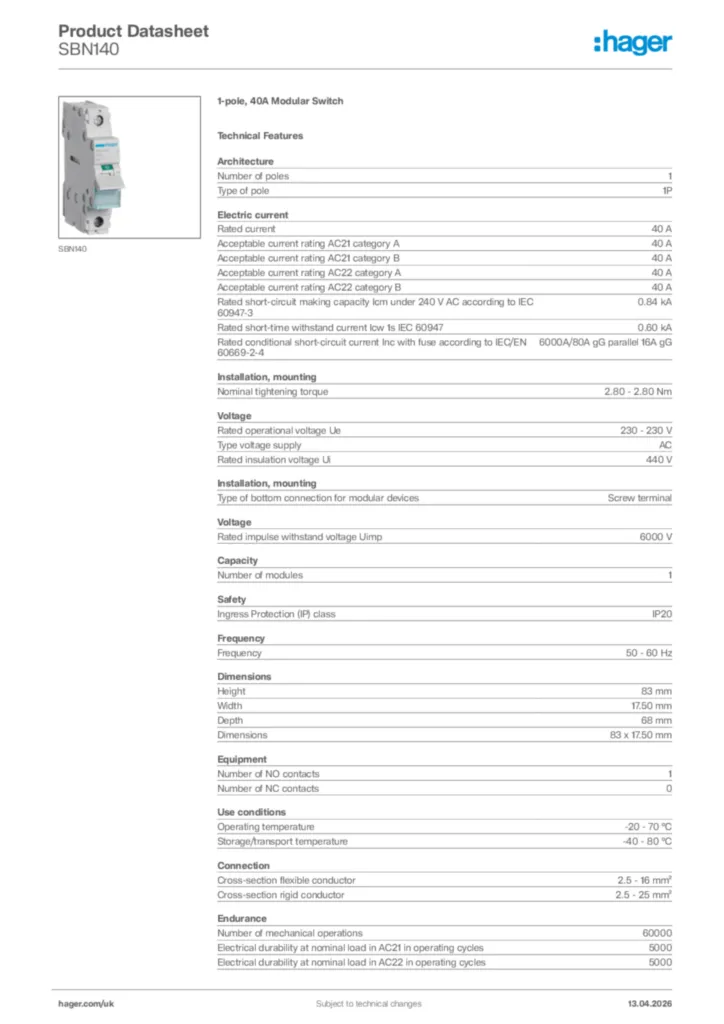

Product data sheets for SBN140 58 kbpdfDownload
Product environmental profile for SBN140 440 kbpdfDownload
