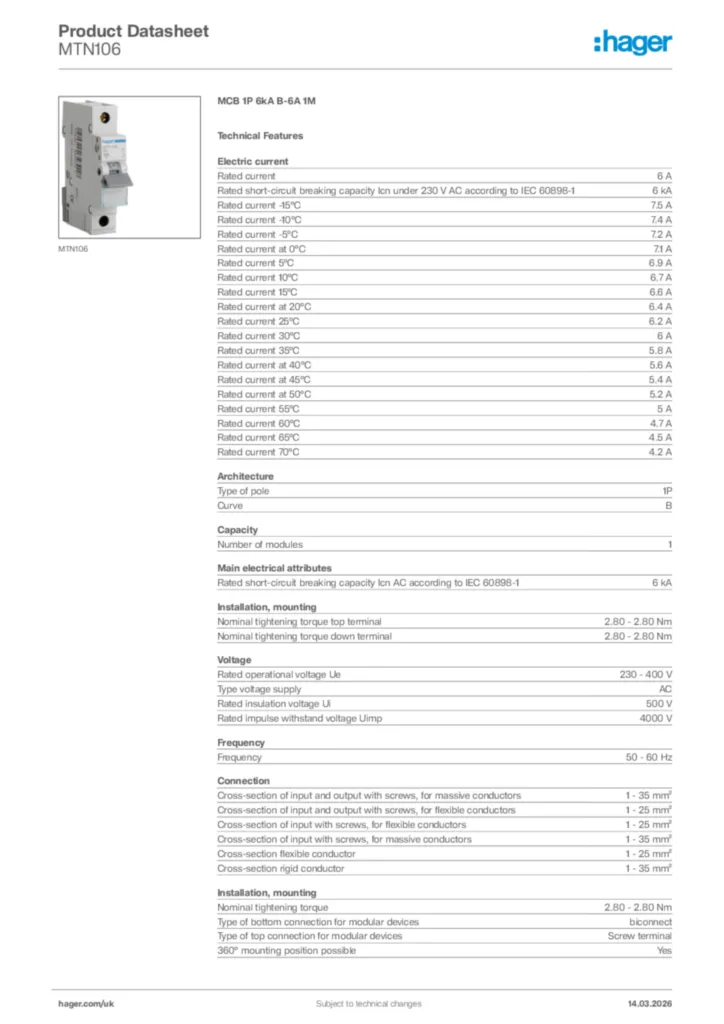

MTN106

MCB 1P 6kA B-6A 1M
EAN
3250614343018
Quantity
1
Trade price*
£13.61 /prt.*
More Information
Concurrently switching N-neutralNo
Rated impulse withstand voltage4000 V
Rated insulation voltage500 V
Rated operational voltage Ue230 / 400 V
Type of supply voltageAC
Type of pole1 P
Correction factor of rating current for 6 devices placed side-by-side0.85
Altitude2000 m
Bottom removability for modular devicesNo
Class of energy limitation I²t3
Correction factor of magnetic tripping with 100 Hz1.1
Correction factor of magnetic tripping with 200 Hz1.2
Correction factor of magnetic tripping with 400 Hz1.5
Correction factor of magnetic tripping with 60 Hz1
Correction factor of rating current for 2 devices placed side-by-side1
Correction factor of rating current for 3 devices placed side-by-side0.95
Correction factor of rating current for 4 and 5 devices placed side-by-side0.9
Tightening torque2,8Nm
CurveB
Degree of pollution according to IEC 60664 / IEC 60947-22
Frequency (range for ETIM)50/60 Hz
Frequency50;60 Hz
Height of installed product83 mm
Breaking capacity on 1 pole with 400 V NF 60947-23 kA
Rated short circuit breaking capacity Icn AC according IEC60898-16 kA
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-16 kA
Top connection alignement for modular devicesAligned terminal
Type of connectionwith screw
Operating temperature-25/70 °C
Rating current 25°C6.2 A
Rating current -10°C7.4 A
Rating current 10°C6.7 A
Rating current -15°C7.5 A
Rating current 15°C6.6 A
Rating current -20°C7.7 A
Rating current 20°C6.4 A
Rating current -25°C7.8 A
Rating current 30°C6 A
Rated current6 A
Rating current 35°C5.8 A
Rating current 40°C5.6 A
Type of top connection for modular deviceswith screw
Rating current -5°C7.2 A
Rating current 50°C5.2 A
Rating current 5°C6.9 A
Rating current 55°C5 A
Rating current 0°C7.1 A
Protection index IPIP20
Rated service breaking capacity Ics AC according IEC 60898-16 kA
Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-210 kA
Rated ultimate short-circuit breaking capacity Icu under 240V AC IEC 60947-210 kA
Rating current 60°C4.7 A
Rating current 45°C5.4 A
Magnetic regulating currrent at 40° C3 / 5 In
Air humidity protectionfor all climates
Depth of installed product70 mm
Power loss per pole at In1.3 W
Total power loss under IN1.3 W
Connection cross-section of input and output with screws, for massive conductors1 / 35 mm²
Storage temperature-25/80 °C
European directive WEEEconcerned
Standard textEN 60898-1
Top removability for modular devicesNo
Type of Bottom Connection for modular devicesBIconnect
Bottom connection alignement for modular devicesAligned terminal
360° product mounting positionYes
Connection cross section of access and exit with screws, for flexible conductor1 / 25 mm²
Width of installed product17.5 mm
Number of poles1 P
CE marking on labelAI2_B5_CE_01.JPG
min/maxi threshold value of the DC magnetic operation4 / 7 In
Quantity of half modules of 17,7mm2
min/maxi threshold value of the AC thermal operation1.13 / 1.45 In
Number of modules1
Electric endurance in number of cycles4000
Number of mechanical operations20000
min/maxi threshold value of the DC thermal operation1.13 / 1.45 In
Rating current 65°C4.5 A
Rating current 70°C4.2 A
Operating temperature-25/70 °C
Connection cross-sect. rigid cable1 ; 35mm²
Connection cross-sect. flexible conductor1 ; 25mm²
Storage/transport temperature-25/80 °C
UnitPCE
EAN3250614343018
Sales status3C
