Insulated busbar 3P 63A fork 10mm² 57M KDN363B
EAN-Nr.
3250613740962
Packaging
20 Pieces
Price
£87.33
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 35 products available
Referenced by
-
NDN310AMCB 3P 10kA/15kA D-10A 3M
£103.01 / piece* -
NCN350AMCB 3P 10kA/15kA C-50A 3M
£104.31 / piece* -
NDN320AMCB 3P 10kA/15kA D-20A 3M
£103.01 / piece* -
NDN340AMCB 3P 10kA/15kA D-40A 3M
£106.02 / piece* -
NDN363AMCB 3P 10kA/15kA D-63A 3M
£120.03 / piece* -
NBN325AMCB 3P 10kA/15kA B-25A 3M
£95.92 / piece* -
NBN310AMCB 3P 10kA/15kA B-10A 3M
£95.92 / piece* -
NBN320AMCB 3P 10kA/15kA B-20A 3M
£95.92 / piece* -
NBN363AMCB 3P 10kA/15kA B-63A 3M
£111.76 / piece* -
NBN306AMCB 3P 10kA/15kA B-6A 3M
£98.71 / piece* -
NDN332AMCB 3P 10kA/15kA D-32A 3M
£103.01 / piece* -
NBN350AMCB 3P 10kA/15kA B-50A 3M
£104.31 / piece* -
NDN350AMCB 3P 10kA/15kA D-50A 3M
£112.02 / piece* -
NCN300AMCB 3P 10kA/15kA C-0.5A 3M
£102.45 / piece* -
NCN301AMCB 3P 10kA/15kA C-1A 3M
£102.45 / piece* -
NCN304AMCB 3P 10kA/15kA C-4A 3M
£102.45 / piece* -
NDN302AMCB 3P 10kA/15kA D-2A 3M
£110.02 / piece* -
NDN304AMCB 3P 10kA/15kA D-4A 3M
£111.05 / piece* -
NCN316AMCB 3P 10kA/15kA C-16A 3M
£95.92 / piece* -
NCN320AMCB 3P 10kA/15kA C-20A 3M
£95.92 / piece*
Technical characteristics
Electric current
-
Rated current63 A
Architecture
-
Number of poles3
Dimensions
-
Length1,000 mm
Voltage
-
Rated impulse withstand voltage Uimp4,500 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules57
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

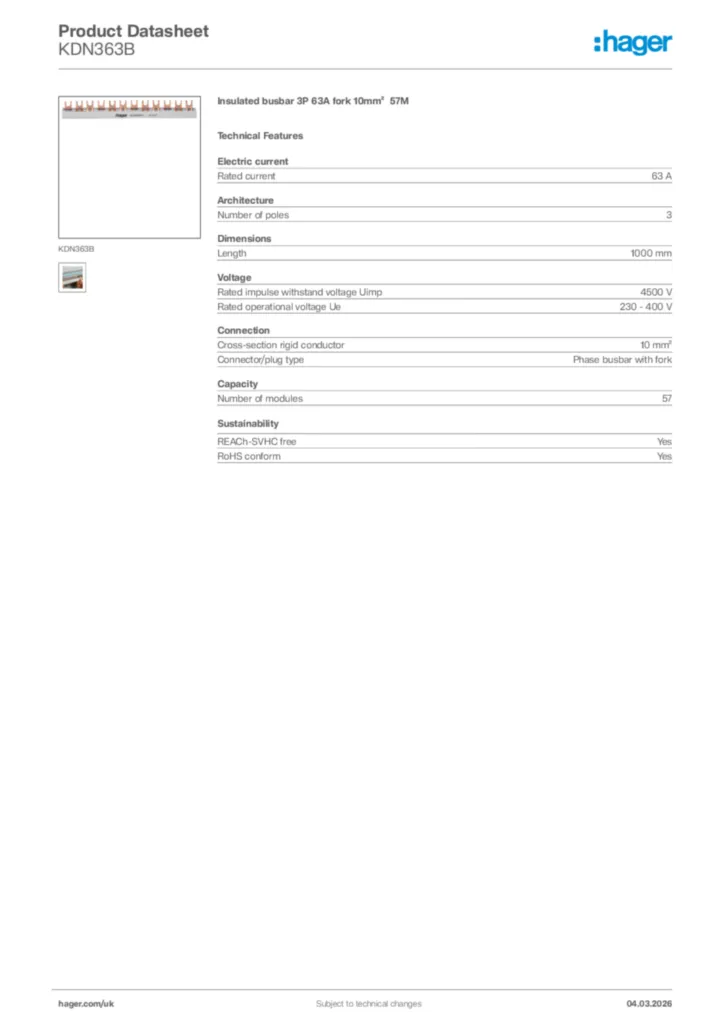

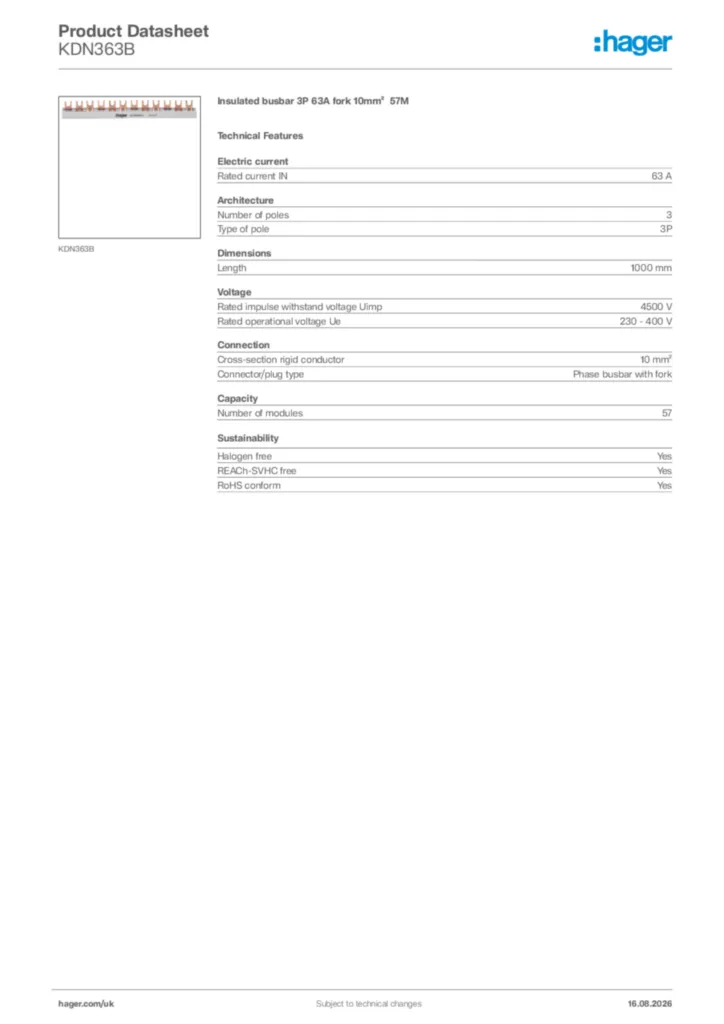

Hager Product data sheet KDN363B
Insulated busbar 3P 63A fork 10mm² 57M
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-09-20
PDF342,73 kB
