Insulated busbar 3P+N 63A prong 10mm² 12M KB463A
Price
£83.35
/ piece
*
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles4
Dimensions
-
Length210 mm
Voltage
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated operational voltage Ue230 - 400 V
Connection
-
Cross-section rigid conductor10 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules12
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
Product image
-
GeneratedProductDatasheet

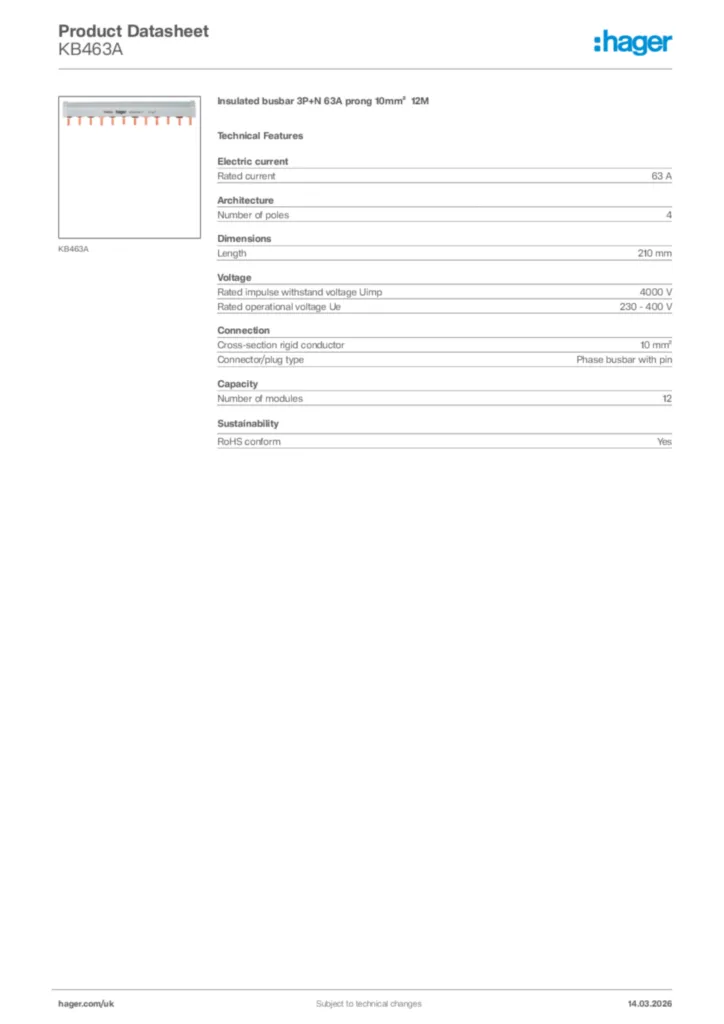

Hager Product data sheet KB463A
Insulated busbar 3P+N 63A prong 10mm² 12M
PDF -
ProductECDeclaration
Declaration of conformity en-GB 2026-01-12
PDF386,96 kB
Declaration of conformity en-GB 2026-01-12
PDF364,15 kB
