    The Hager 2-pole 100A modular switch provides safe isolation and switching for residential and commercial distribution boards. Rated 100A AC21/AC22 at 400 V AC, with 6 kV impulse withstand, 1.69 kA making and 1.2 kA short-time withstand. Compact 2-module (35 mm) design with IP20 protection, screw terminals for 6-50 mm² conductors, and high endurance (40,000 mech., 2,500 electrical cycles).
    EAN-Nr.
    5015652603511
    Packaging
    1 piece
    • Energy meters

    Modular Switch 2P 100A AC22A 400V IEC 60947-3 2 Modules JK240MID

    Price
    £1,005.01
    / piece *
    £1,005.01
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Modular Switch 2P 100A AC22A 400V IEC 60947-3 2 Modules

    JK240MID

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Archi­tec­ture
    • Type of pole
      3P+N
    Elec­tric current
    • Rated current
      250 A
    • Maximum meas­uring circuit current
      6,000 A
    Capa­city
    • Number of modules
      4
    Dimen­sions
    • Height
      118.50 mm
    • Width
      70 mm
    • Depth
      66 mm
    Install­a­tion, mounting
    • Mounting on
      DIN rail, Mounting plate
    Meas­ure­ment
    • Meas­uring system
      Meas­ure­ment trans­former
    • Type of meas­uring instru­ment
      Digital
    • Current meas­ure­ment range
      5 - 6,000 A
    • Frequency meas­uring range
      50 - 50 Hz
    Power supply
    • Number of phases for power supply
      3
    Func­tions
    • Accuracy class
      1
    • Tariff type
      Multi-tariff
    • Is calib­rated
      Yes
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 55 °C
    • Stor­age/trans­port temper­ature
      -20 - 75 °C
    Frequency
    • Frequency
      50 - 50 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration JK240MID
    PDF
    RoHS report JK240MID
    PDF

    Downloads

    • Product image

      Image JK240MID | Hager

      Product Image JK240MID

    • Product datasheet

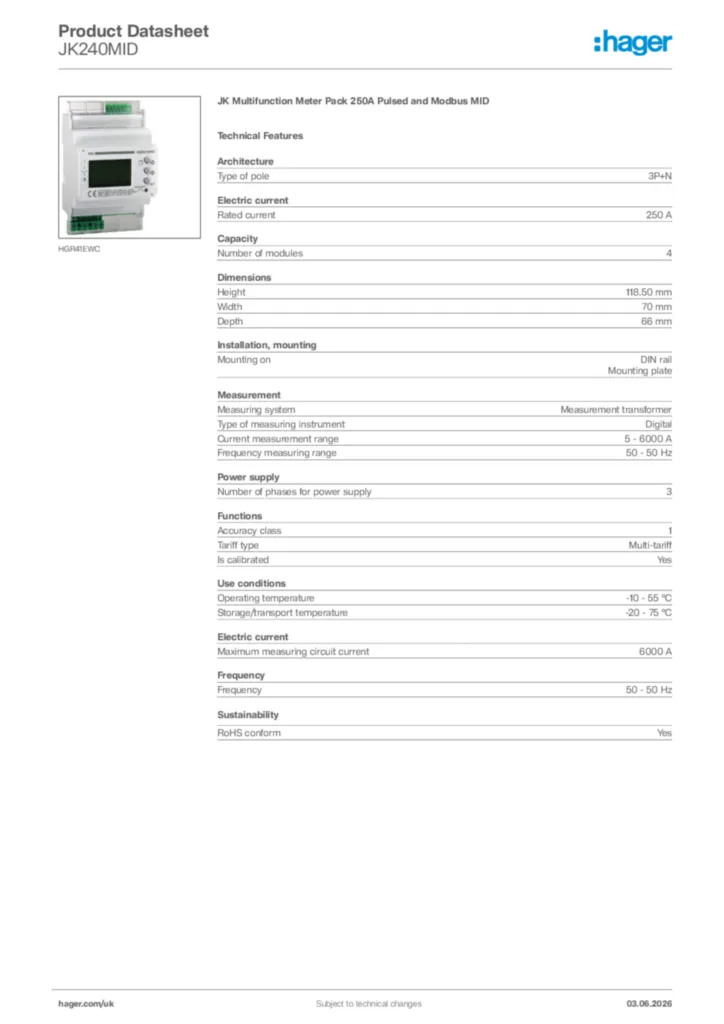

      Image Hager Product data sheet JK240MID | Hager

      Hager Product data sheet JK240MID

      JK Multifunction Meter Pack 250A Pulsed and Modbus MID
