250A 32 Module DIN Rail Box Plain Amendment 3 JK232EA3

EAN-Nr.
3250613412838
Packaging
1 piece
Price
£293.77
/ piece *
£293.77
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

250A 32 Module DIN Rail Box Plain Amendment 3

JK232EA3

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Compatible products

  • Referenced by 5 products available

Referenced by

  • JK208BA3

    250A 8 Way TPN Board Plain Door Amendment 3
    £411.36  / piece*
  • JK212BA3

    250A 12 Way TPN Board Plain Door Amendment 3
    £475.84  / piece*
  • JK216BA3

    250A 16 Way TPN Board Plain Door Amendment 3
    £657.75  / piece*
  • JK218BA3

    250A 18 Way TPN Board Plain Door Amendment 3
    £756.63  / piece*
  • JK224BA3

    250A 24 Way TPN Board Plain Door Amendment 3
    £1,047.17  / piece*

Technical characteristics

Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    250 A
Equip­ment
  • Number of rails
    2
  • Number of rows
    2
  • Number of section in width
    1
  • With lock
    Yes
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Capa­city
  • Number of modules
    32
Dimen­sions
  • Height
    450 mm
  • Width
    465 mm
  • Depth
    165.50 mm
  • Number of width units
    32
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class III
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP3X
  • Locking type
    Key lock, Quarter turn lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration JK232EA3
PDF
Hager RoHS report JK232EA3
PDF

Downloads

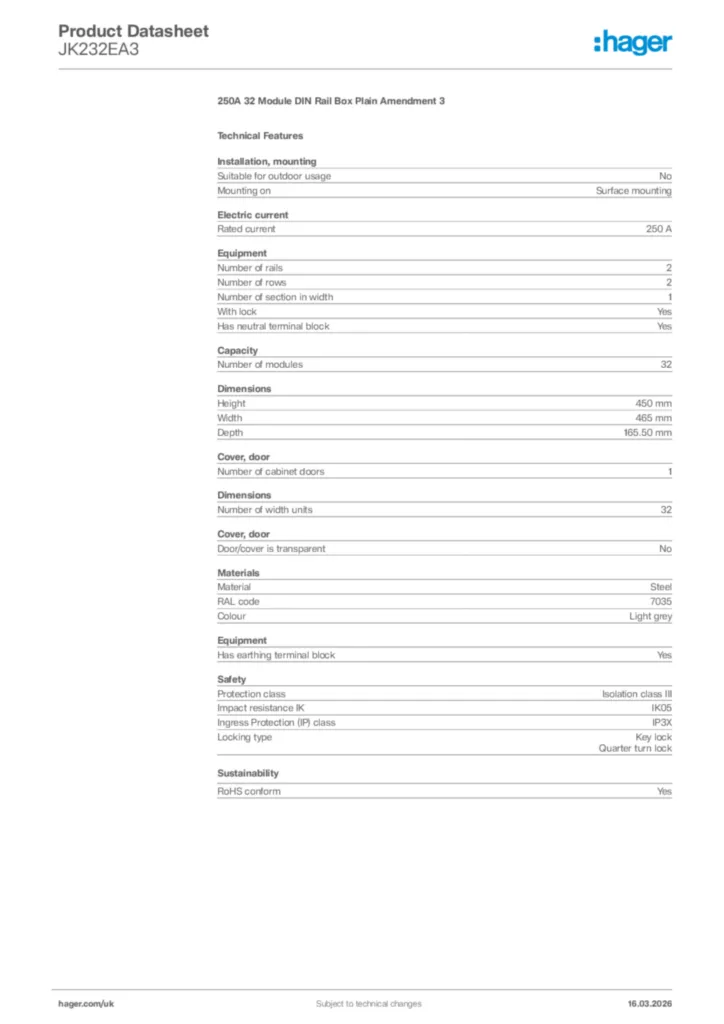

  • Product datasheet

    Image Hager Product data sheet JK232EA3 | Hager

    Hager Product data sheet JK232EA3

    250A 32 Module DIN Rail Box Plain Amendment 3

    PDF

  • BIM Revit objects

    Image Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Type B TP&N Distribution Boards. Switchboard with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22
