JK Multifunction Meter Pack 125A Pulsed and Modbus MID JK140MID
Price
£975.74
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Type of pole3P+N
Electric current
-
Rated current125 A
-
Maximum measuring circuit current6,000 A
Capacity
-
Number of modules4
Dimensions
-
Height118.50 mm
-
Width70 mm
-
Depth66 mm
Installation, mounting
-
Mounting onDIN rail, Mounting plate
Measurement
-
Measuring systemMeasurement transformer
-
Type of measuring instrumentDigital
-
Current measurement range5 - 6,000 A
-
Frequency measuring range50 - 50 Hz
Power supply
-
Number of phases for power supply3
Functions
-
Accuracy class1
-
Tariff typeMulti-tariff
-
Is calibratedYes
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-20 - 75 °C
Frequency
-
Frequency50 - 50 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

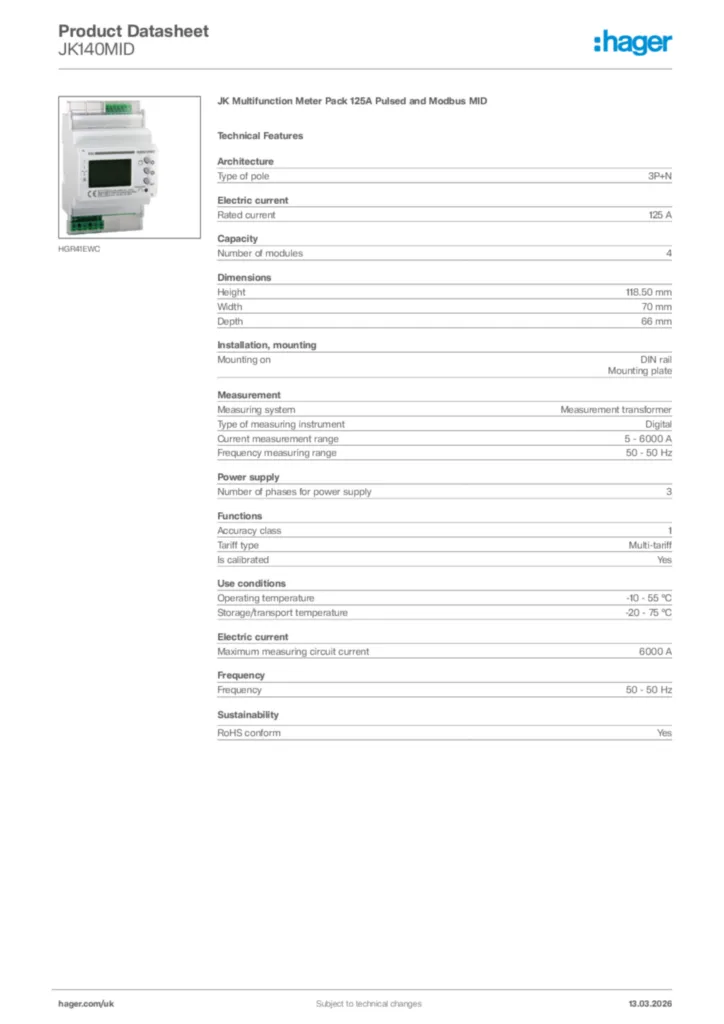

Hager Product data sheet JK140MID
