48 Module Side DIN Rail Box Amendment 3 JK108BDFA3

EAN-Nr.
5015652601418
Packaging
1 piece
Price
£349.69
/ piece *
£349.69
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

48 Module Side DIN Rail Box Amendment 3

JK108BDFA3

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Trans­ition cover section for install­a­tion duct 2 products available

Complete your system

  • Trans­ition cover section for install­a­tion duct
  • JK06TK

    Trunking Kit for TPN 6"
    £158.72  / piece*
  • JK04TK

    Trunking Kit for TPN 4"
    £111.70  / piece*

Technical characteristics

Install­a­tion, mounting
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    125 A
Equip­ment
  • Number of rows
    3
  • With lock
    No
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
Dimen­sions
  • Height
    625 mm
  • Width
    465 mm
  • Depth
    132.50 mm
  • Number of width units
    48
Cover, door
  • Door/­cover is trans­parent
    Yes
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class I
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Quarter turn lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

JK1 32 Module DIN Rail Box Glazed
PDF
5,81 MB
Hager REACH declaration JK108BDFA3
PDF
Hager RoHS report JK108BDFA3
PDF

Downloads

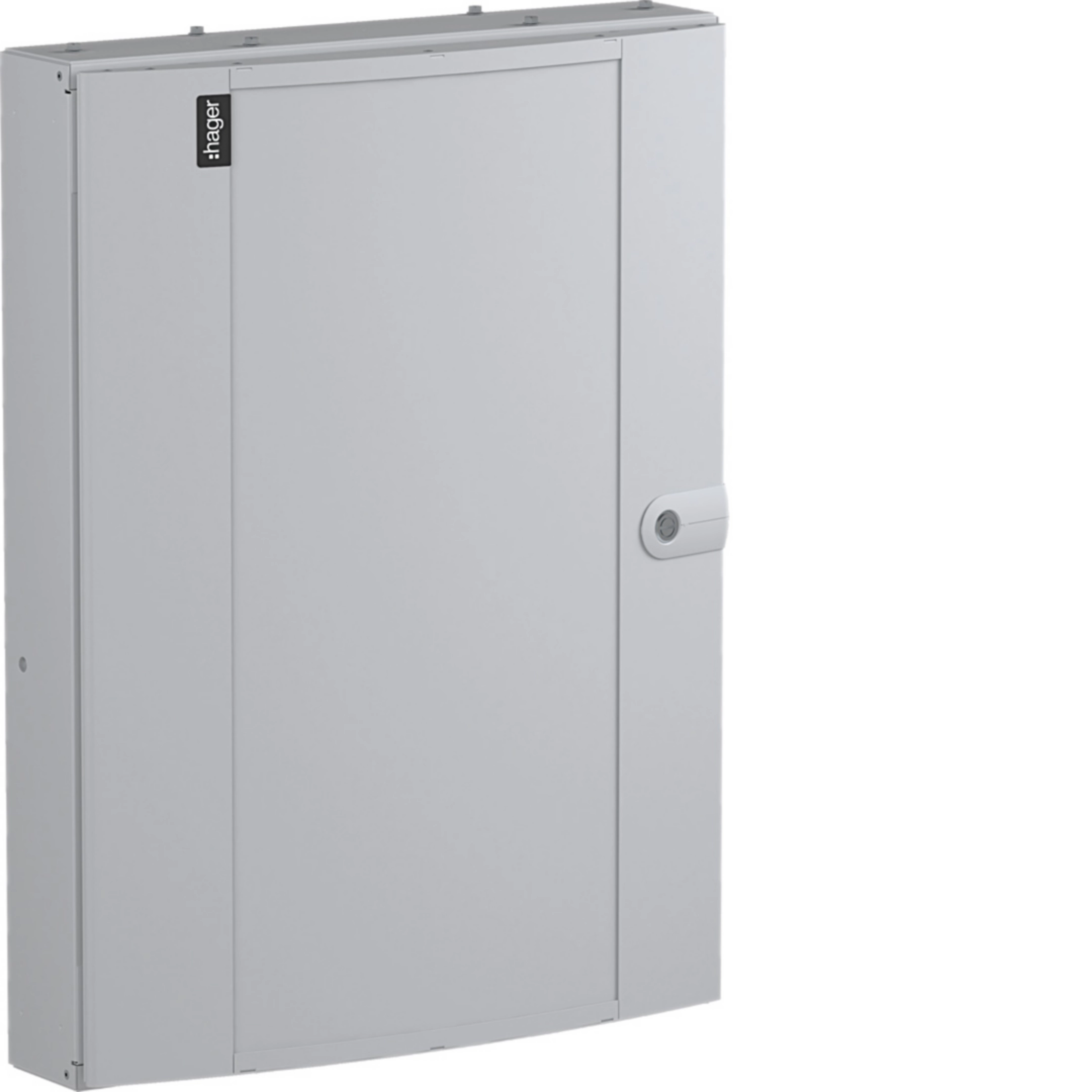

  • Product image

    Image JK108BDFA3 | Hager

    Product Image JK108BDFA3

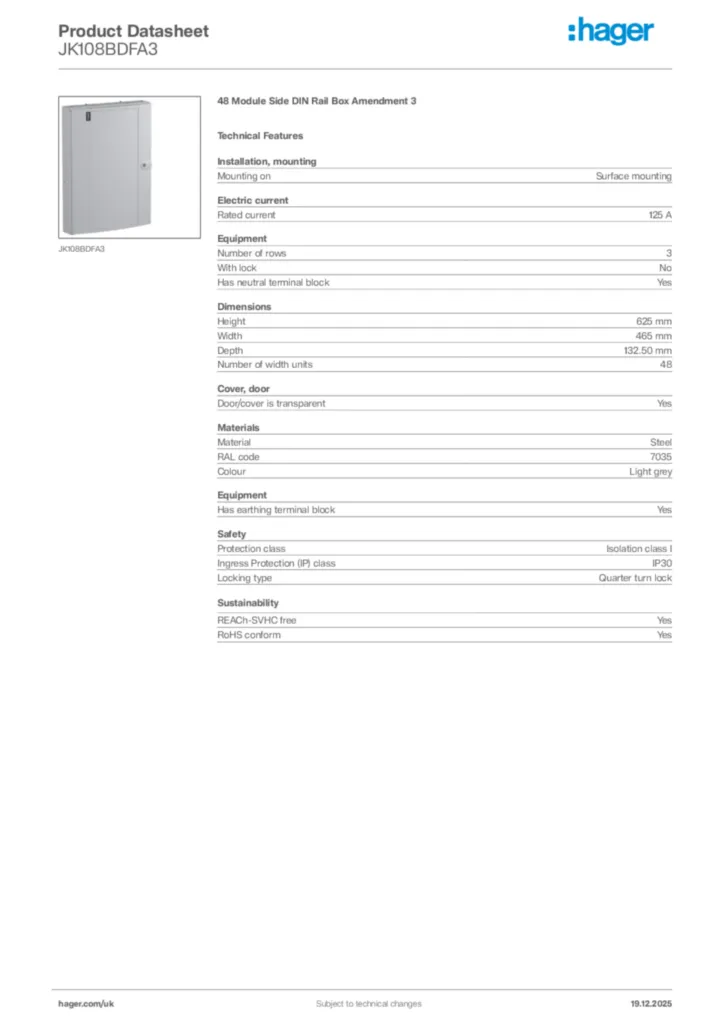

  • Product datasheet

    Image Hager Product data sheet JK108BDFA3 | Hager

    Hager Product data sheet JK108BDFA3

    48 Module Side DIN Rail Box Amendment 3

    PDF

  • BIM Revit objects

    Image Range : Type B TP&N Distribution Boards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Type B TP&N Distribution Boards. Switchboard IP3X with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,28 MB
    Image Range : Type B TP&N Distribution Boards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

    Range : Type B TP&N Distribution Boards. Switchboard IP3X with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022

    BIM Revit objects en-GB 2024-03-22

    RFA
    1,26 MB
    Image Range Typ.B TP&N 125A Side DIN Enclosures -Revit Family 2020 hosted-V2021 | Hager

    Range Typ.B TP&N 125A Side DIN Enclosures -Revit Family 2020 hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,27 MB
    Image Range Typ.B TP&N 125A Side DIN Enclosures -Revit Family 2020 no hosted-V2021 | Hager

    Range Typ.B TP&N 125A Side DIN Enclosures -Revit Family 2020 no hosted-V2021

    BIM Revit objects en-GB 2020-01-01

    RFA
    1,26 MB

  • Declaration of conformity

    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    302,50 kB
    Image Declaration of conformity International 2023-12-20 | Hager

    Declaration of conformity International 2023-12-20

    PDF
    296,11 kB
