800A 18 Way Panelboard 125A Plain Door JHF818B

EAN-Nr.
5015654754877
Packaging
1 piece
Price
£5,831.62
/ piece *
£5,831.62
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

800A 18 Way Panelboard 125A Plain Door

JHF818B

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • See more (11)
    • Distrib­utor assembly with main switch 2 products available
    • Blanking plate for enclosure 1 products available
    • Insert for lock system 1 products available
    • Switch discon­nector AC 1 products available
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available
    • Gland plate for enclosure 1 products available

    Complete your system

    • Distrib­utor assembly with main switch
    • Blanking plate for enclosure
    • Insert for lock system
    • Switch discon­nector AC
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Gland plate for enclosure
    • Small equipped distri­bu­tion board
    • JHF883BM

      800A 3 Pole MCCB Incomer Kit
      £2,997.12  / piece*
    • JHF884BM

      800A 4 Pole MCCB Incomer Kit
      £3,496.60  / piece*
    • JF003BP

      3 Pole Blanking Plate 250A Frame
      £23.31  / piece*
    • JK222PK

      JK1/JK2 Door Lock Kit
      £24.66  / piece*
    • JAB410B

      Enclosed Switch Disconnector TPSN 100A
      £666.72  / piece*
    • JN001BP

      Single Pole Blank 125A Frame
      £12.83  / piece*
    • JFPLATE

      Spare Endplate for JF boards
      £67.62  / piece*
    • JAB402B

      Enclosed Switch Disconnector TPSN 20A
      £233.29  / piece*
    • JAB403B

      Enclosed Switch Disconnector TPSN 32A
      £280.80  / piece*
    • JAB406B

      £0.00  / *
    • JAC412B

      Enclosed Switch Disconnector TPSN 125A
      £766.46  / piece*

    Technical characteristics

    Connec­tion
    • Number of access­ible phases
      3
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      800 A
    Equip­ment
    • With lock
      Yes
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    Capa­city
    • Number of modules
      18
    Dimen­sions
    • Height
      2,200 mm
    • Width
      900 mm
    • Depth
      220 mm
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Ingress Protec­tion (IP) class
      IP2XC
    • Locking type
      Quarter turn lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration JHF818B
    PDF
    Hager RoHS report JHF818B
    PDF

    Downloads

    • Product image

      Image JHF818B | Hager

      Product Image JHF818B

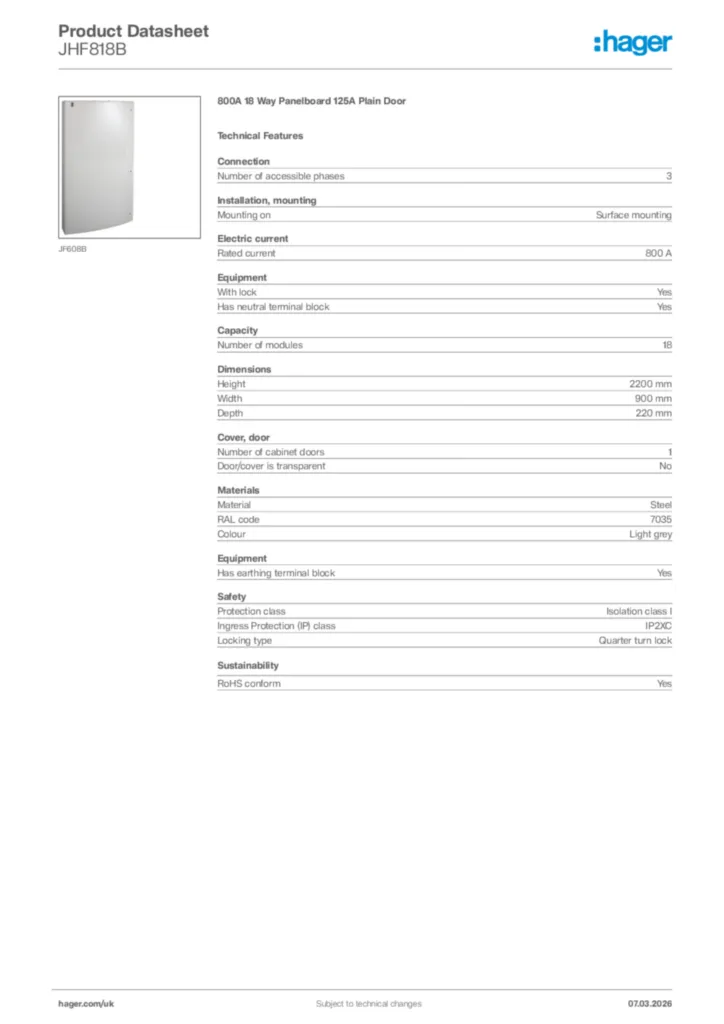

    • Product datasheet

      Image Hager Product data sheet JHF818B | Hager

      Hager Product data sheet JHF818B

      800A 18 Way Panelboard 125A Plain Door

      PDF

    • Installation manual

      Image UK_HAGER_INS_ZD0744.pdf | Hager

      UK_HAGER_INS_ZD0744.pdf

      Installation manual en-GB 2024-03-22

      PDF
      1,51 MB

    • BIM Revit objects

      Image Panelboard Invicta 3 (800A Inc125A Out) -Revit Family 2020 hosted-V2021 | Hager

      Panelboard Invicta 3 (800A Inc125A Out) -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,07 MB
      Image Panelboard Invicta 3 (800A Inc125A Out) -Revit Family 2020 no hosted-V2021 | Hager

      Panelboard Invicta 3 (800A Inc125A Out) -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,37 MB
      Image Range : Panelboards. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,07 MB
      Image Range : Panelboards. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,38 MB

    • Product data sheet

      Image UK_CD_TDS_Invicta3Panelboards | Hager

      UK_CD_TDS_Invicta3Panelboards

      Technical data sheet including characteristics for Invicta 3 Panelboards 250A - 800A

      PDF
      45,13 kB
      Image UK_CD_TDS_Invicta3800Adimensions | Hager

      UK_CD_TDS_Invicta3800Adimensions

      Technical data sheet including dimensions for 800A rated Invicta 3 Panelboards.

      PDF
      78,34 kB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      167,62 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      167,21 kB
