800A 18 Way Panelboard 4*250A + 14*125A Plain Door JHF80414B
EAN-Nr.
5015654754976
Packaging
1 piece
Price
£5,348.02
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Small equipped distribution board 4 products available -
Distributor assembly with main switch 2 products available -
Gland plate for enclosure 1 products available -
Switch disconnector 1 products available
-
Blanking plate for enclosure 1 products available -
See more 2 other products available
Complete your system
-
JAB402B
Enclosed Switch Disconnector TPSN 20A
£233.29 / piece* -
JAB403B
Enclosed Switch Disconnector TPSN 32A
£280.80 / piece* -
JAB406B
Enclosed Switch Disconnector TPSN 63A
£435.82 / piece* -
JAC412B
Enclosed Switch Disconnector TPSN 125A
£766.46 / piece*
-
JHF883BM
800A 3 Pole MCCB Incomer Kit
£2,997.12 / piece* -
JHF884BM
800A 4 Pole MCCB Incomer Kit
£3,496.60 / piece*
-
JFPLATE
Spare Endplate for JF boards
£67.62 / piece*
-
JF003BP
3 Pole Blanking Plate 250A Frame
£23.31 / piece*
-
JN001BPSingle Pole Blank 125A Frame
£12.83 / piece*
-
JK222PKJK1/JK2 Door Lock Kit
£24.66 / piece*
Technical characteristics
Connection
-
Number of accessible phases3
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current800 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Capacity
-
Number of modules18
Dimensions
-
Height2,200 mm
-
Width900 mm
-
Depth220 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Ingress Protection (IP) classIP2XC
-
Locking typeQuarter turn lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
UK_HAGER_INS_ZD0744.pdf
Installation manual en-GB 2024-03-22
PDF1,51 MB -
BIM Revit objects
Panelboard Invicta 3 (800A Inc 125A - 250 Out) -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,11 MB
Panelboard Invicta 3 (800A Inc 125A - 250 Out) -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,10 MB
Range : Panelboards. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,12 MB
Range : Panelboards. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,11 MB -

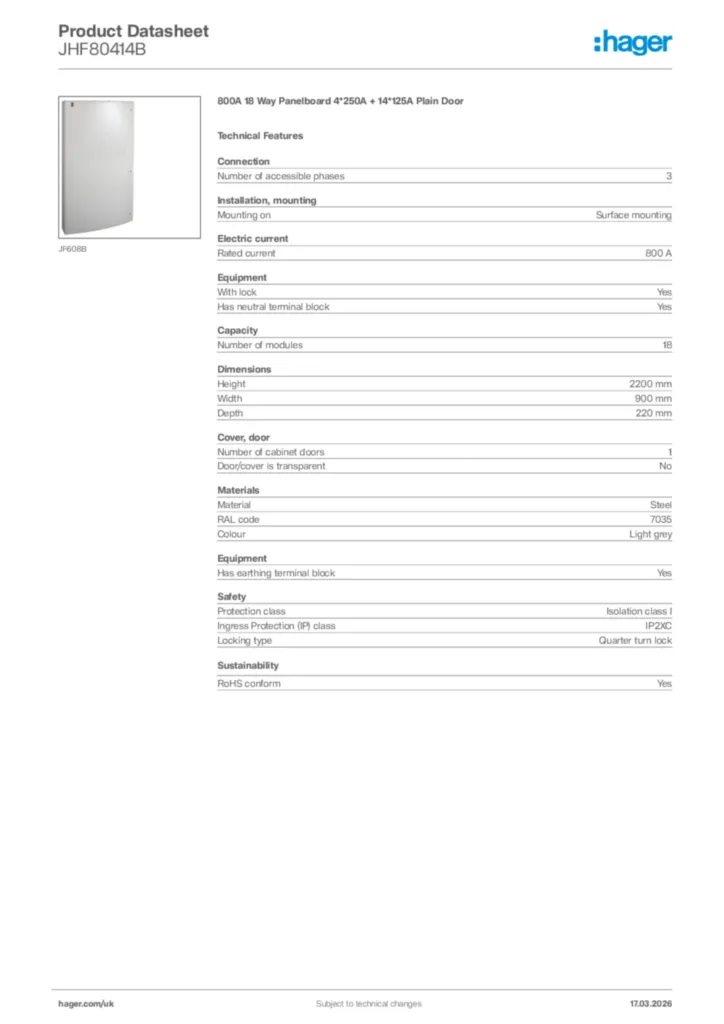

Product data sheet
UK_CD_TDS_Invicta3Panelboards
Technical data sheet including characteristics for Invicta 3 Panelboards 250A - 800A
PDF45,13 kB
UK_CD_TDS_Invicta3800Adimensions
Technical data sheet including dimensions for 800A rated Invicta 3 Panelboards.
PDF78,34 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF128,33 kB
