JF Multifunction Meter Pack 800A Modbus MID JF803MID

EAN-Nr.
5015652603481
Packaging
1 piece
Price
£1,039.64
/ piece *
£1,039.64
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

JF Multifunction Meter Pack 800A Modbus MID

JF803MID

  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Technical characteristics

Archi­tec­ture
  • Type of pole
    3P+N
Elec­tric current
  • Rated current
    800 A
  • Maximum meas­uring circuit current
    6,000 A
Capa­city
  • Number of modules
    4
Dimen­sions
  • Height
    118.50 mm
  • Width
    70 mm
  • Depth
    66 mm
Install­a­tion, mounting
  • Mounting on
    DIN rail, Mounting plate
Meas­ure­ment
  • Meas­uring system
    Meas­ure­ment trans­former
  • Type of meas­uring instru­ment
    Digital
  • Current meas­ure­ment range
    5 - 6,000 A
  • Frequency meas­uring range
    50 - 50 Hz
Power supply
  • Number of phases for power supply
    3
Func­tions
  • Accuracy class
    1
  • Tariff type
    Multi-tariff
  • Is calib­rated
    Yes
Use condi­tions
  • Oper­ating temper­ature
    -10 - 55 °C
  • Stor­age/trans­port temper­ature
    -20 - 75 °C
Frequency
  • Frequency
    50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration JF803MID
PDF
Hager RoHS report JF803MID
PDF

Downloads

  • Product image

    Image JF803MID | Hager

    Product Image JF803MID

  • Product datasheet

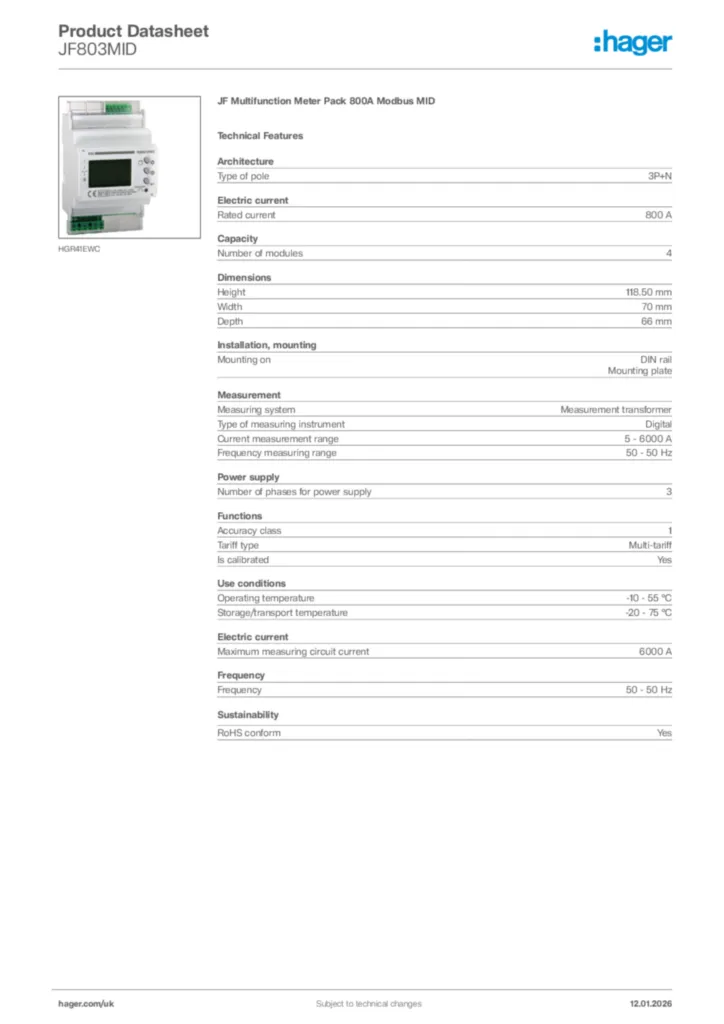

    Image Hager Product data sheet JF803MID | Hager

    Hager Product data sheet JF803MID

    JF Multifunction Meter Pack 800A Modbus MID

    PDF

  • Instruction manual

    Image Instruction manual en-GB 2015-09-21 | Hager

    Instruction manual en-GB 2015-09-21

    Instruction manual en-GB 2023-03-16

    PDF
    1,11 MB

  • Installation manual

    Image Installation manual en-GB 2016-03-07 | Hager

    Installation manual en-GB 2016-03-07

    PDF
    621,53 kB

  • Declaration of conformity

    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    246,50 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    244,86 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    167,62 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    167,21 kB
