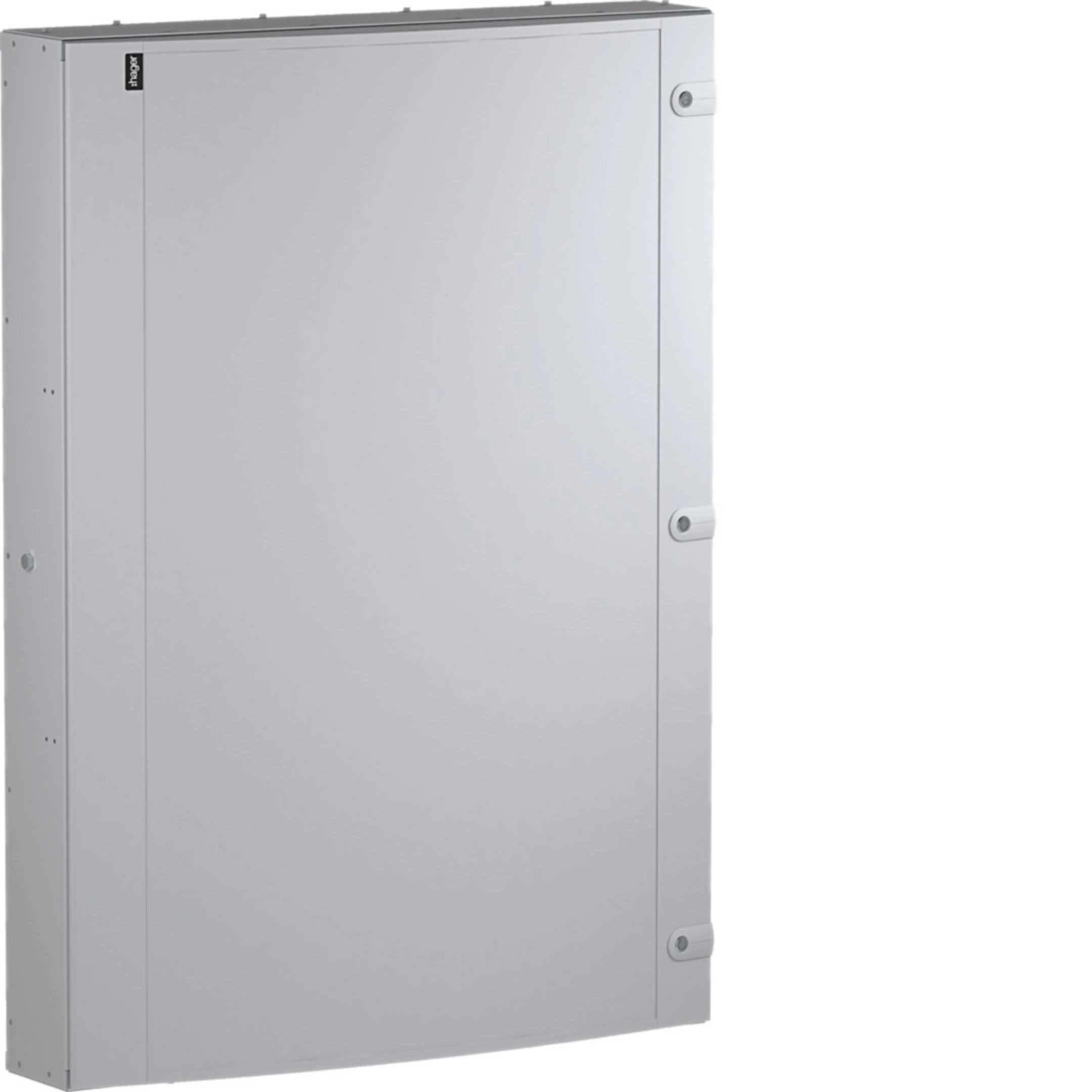

800A 6 Way 2*250A + 4*125A Plain JF80204B

EAN-Nr.
5015652263951
Packaging
1 piece
Price
£1,707.05
/ piece *
£1,707.05
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

800A 6 Way 2*250A + 4*125A Plain

JF80204B

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Blanking plate for enclosure 1 products available
  • Gland plate for enclosure 1 products available

Complete your system

  • Blanking plate for enclosure
  • Gland plate for enclosure
  • JF003BP

    3 Pole Blanking Plate 250A Frame
    £23.31  / piece*
  • JFPLATE

    Spare Endplate for JF boards
    £67.62  / piece*

Technical characteristics

Install­a­tion, mounting
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    800 A
Equip­ment
  • With lock
    No
  • Has mounting plate
    No
Capa­city
  • Number of modules
    18
Dimen­sions
  • Height
    1,250 mm
  • Width
    900 mm
  • Depth
    220 mm
Cover, door
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    7035
  • Colour
    Light grey
Safety
  • Protec­tion class
    Isol­a­tion class I
  • Ingress Protec­tion (IP) class
    IP3X
  • Locking type
    Barrel lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration JF80204B
PDF
Hager RoHS report JF80204B
PDF

Downloads

  • Product image

    Image JF80204B | Hager

    Product Image JF80204B

  • Product datasheet

    Image Hager Product data sheet JF80204B | Hager

    Hager Product data sheet JF80204B

    800A 6 Way 2*250A + 4*125A Plain

    PDF

  • Installation manual

    Image UK_HAGER_INS_ZD0741 | Hager

    UK_HAGER_INS_ZD0741

    Installation manual en-GB 2023-01-25

    PDF
    3,15 MB

  • Product data sheet

    Image UK_CD_TDS_Invicta3Panelboards | Hager

    UK_CD_TDS_Invicta3Panelboards

    Technical data sheet including characteristics for Invicta 3 Panelboards 250A - 800A

    PDF
    45,13 kB
    Image UK_CD_TDS_Invicta3400-800Adimensions | Hager

    UK_CD_TDS_Invicta3400-800Adimensions

    Technical data sheet including dimension for 400A-800A rated Invicta 3 Panelboards.

    PDF
    90,67 kB
    Image UK_INVICTA_630A_800A_Panelboard.pdf | Hager

    UK_INVICTA_630A_800A_Panelboard.pdf

    Product data sheet en-GB 2018-08-20

    PDF
    183,92 kB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-07-14

    PDF
    141,22 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-11-10

    PDF
    174,21 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-07-06

    PDF
    145,02 kB
