ON Delay time relay 24-240V AC/DC EZD100
Price
£117.77
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor0.5 - 2.5 mm²
-
Cross-section rigid conductor0.5 - 2.5 mm²
-
Number of contacts1
-
Type of contacts1x changeover
Capacity
-
Number of modules1
Dimensions
-
Height87 mm
-
Width17.50 mm
-
Depth65 mm
Electric current
-
Acceptable current rating AC18 A
Equipment
-
Number of NC contacts0
-
Number of NO contacts1
-
Switch off delayNo
-
Switch on delayYes
Settings
-
Time delay50 ms - 100 h
Voltage
-
Command voltage for 50 Hz24 - 240 V
-
Command voltage for 60 Hz24 - 240 V
-
Command voltage Us for DC24 - 240 V
-
Type voltage supplyAC/DC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

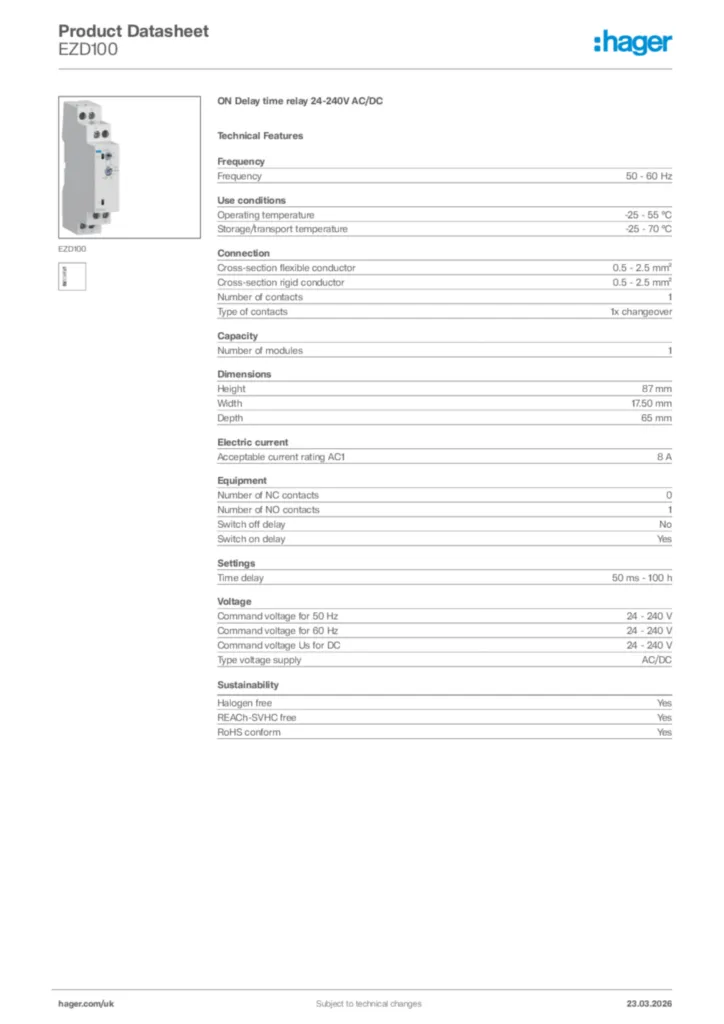

Hager Product data sheet EZD100
ON Delay time relay 24-240V AC/DC
PDF -
Installation manual
Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-12-06
PDF662,41 kB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB, fr-FR 2024-01-04
PDF315,09 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2024-01-04
PDF269,56 kB
More documentation
