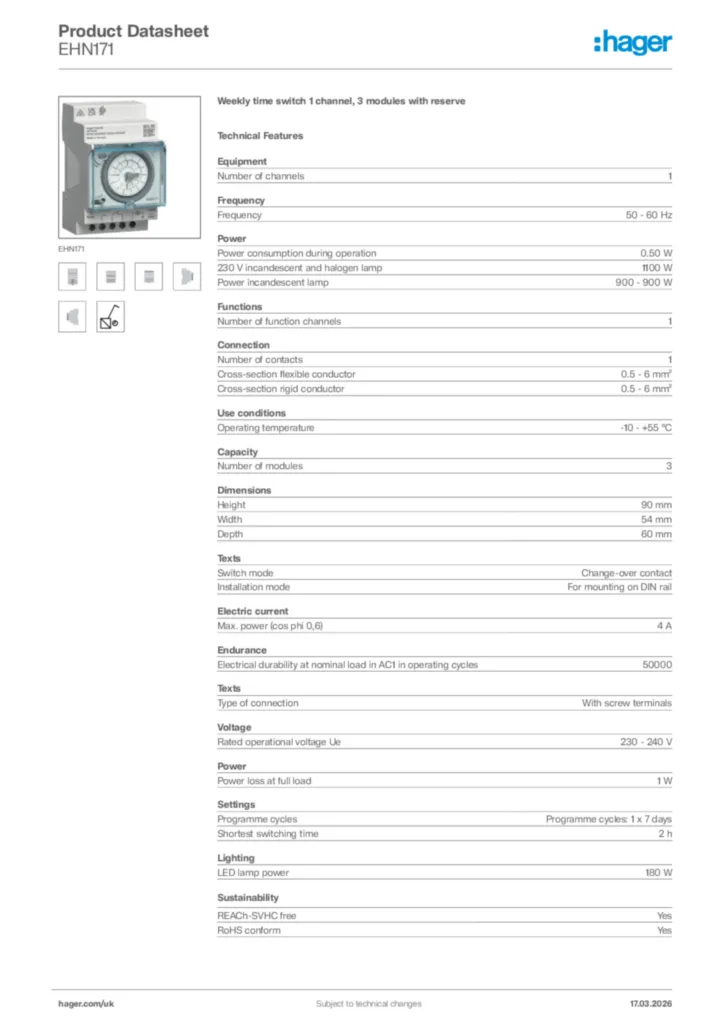

Weekly time switch 1 channel, 3 modules with reserve EHN171
EAN-Nr.
3250617201094
Packaging
1 piece
Price
£266.25
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Functions
-
Power reserve≈ 200 h
Configuration
-
Switch modechange-over contact, usable as NC or NO
Main electrical features
-
Rated operational voltage Ue230 / 240 V
-
Frequency50-60 Hz
Dimensions
-
Depth of installed product60 mm
-
Height of installed product90 mm
-
Width of installed product54 mm
Power
-
Power consumed0.5 VA
-
Power consumption (operation)0.5 VA
-
Total power loss under IN1 W
-
Power dissipation per coil0.5 W
Battery
-
Charging time of the power reserve in hours120
Incandescent bulbs control
-
Max. power with incandescent lamps900 W
Installation, mounting
-
Mounting typedin-Rail
Connection
-
Connection cross-sect. flexible conductor1 / 4mm²
-
Connection cross-sect. rigid cable1 / 4mm²
-
Type of connectionwith screw
-
Number of contacts1
-
Type of contacts1 changeover
-
Type of connectionwith screw terminals
Settings
-
Summer / Winter time changemanual
-
Shortest switching time120 mn
-
Type of programminganalog
-
Programming cycle1X7D.
-
SettingFine setting of time via rotating hand
Equipment
-
Number of channels1
-
Supply failure reserve120 h
Use
-
Cycleweekly
Use conditions
-
Operating temperature-10…55 °C
-
Working accuracy1
