Motion detector Infrared 140°, IP55, wall mounted, white EE820
EAN-Nr.
3250612258208
Packaging
1 piece
Price
£69.99
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Bus systemWithout
Functions
-
Functioncan only be used as individual unit
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50/60 Hz
Dimensions
-
Height of installed product2.5 m
Power supply
-
Supply voltage230 V +10% / -15%
Detection
-
Detection angle140 °
Materials
-
Colourwhite
-
RAL colourRAL 9010 - Pure white
-
Materialplastic
Lighting control
-
Brightness measurement range5 / 1000 Lux
Installation, mounting
-
Maximum Mounting Height4 m
Connection
-
Type of connectionwith plug-in terminals
Settings
-
Settingwith potentiometers for setting the response brightness and delay time without dismantling
Scope of delivery
-
Componentwith fitting material
Equipment
-
Angle of horizontal detection140 °
Use conditions
-
Operating temperature-20…55 °C
Downloads
-
Product image
-
Instruction manual
Instruction manuals for EE820
Annexe pour detecteurs de mouvement confort 140, 200° EE820, EE830
PDF557 KB -
Product attachment
Product Attachment for EE820
Setting instruction for EE82xx-EE83xx - Motion detector (FR-DE-EN-NL-ES-PT-SV-NO, 2016-09)
PDF1 MB -
Catalogue
Lighting & Controls
Lighting & Controls Brochure
PDF3 MB -
Product data sheet
Product data sheets for EE820

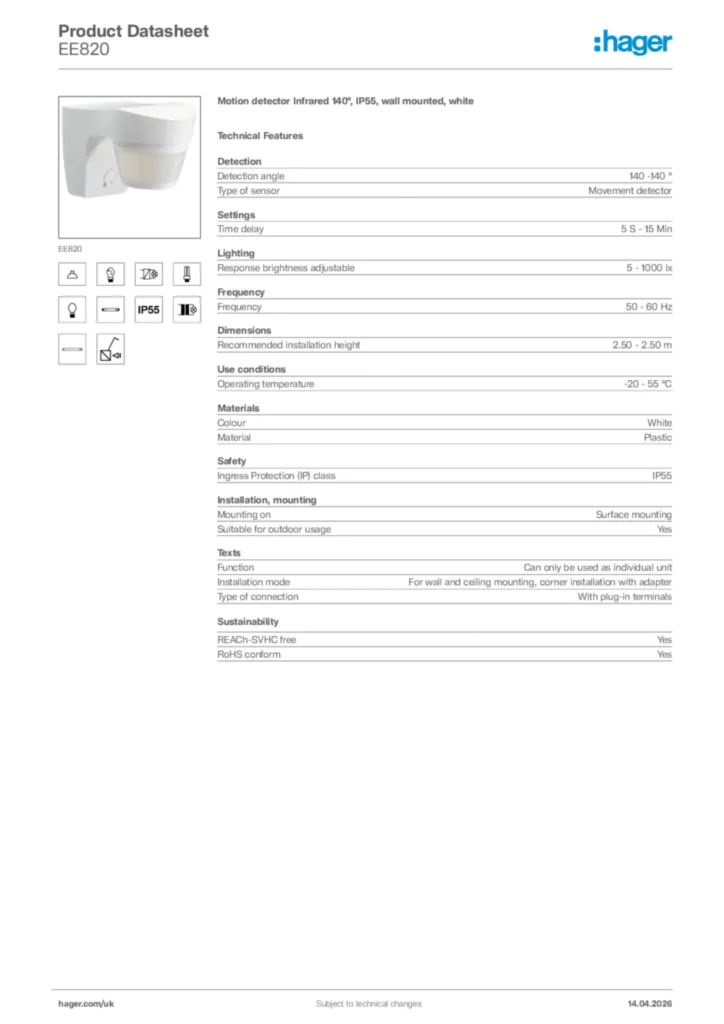

Technical data sheet for EE820 IP55 motion detector
PDF1 MB -
Declaration of conformity
EU Declaration of conformity for EE820
*
PDF105 KB -
RoHS report
Pollutant guidelines for EE820
REACH-declaration 2023-10-20 (english)
PDF32 KB
Pollutant guidelines for EE820
RoHS-declaration 2023-10-20 (english)
PDF33 KB
