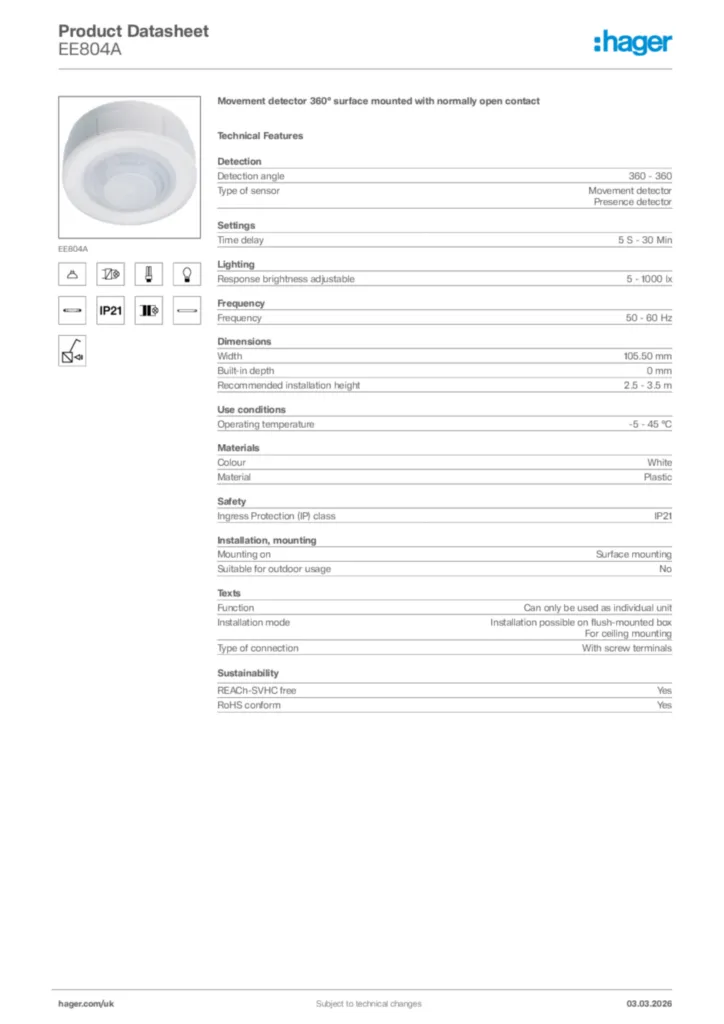

Movement detector 360° surface mounted with normally open contact EE804A
EAN-Nr.
3250612258765
Packaging
1 piece
Price
£114.26
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Bus systemWithout
Functions
-
Functioncan only be used as individual unit
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50/60 Hz
Dimensions
-
Height of installed product50 mm
-
Width of installed product105.5 mm
Power supply
-
Supply voltage230 V +10% / -15%
Detection
-
Detection angle360 °
Materials
-
Colourwhite
-
Materialplastic
Lighting control
-
Brightness measurement range5 / 1000 Lux
Installation, mounting
-
Mounting typesurface-mounted
-
Maximum Mounting Height4 m
Connection
-
Number of contacts1
-
Type of connectionwith screw terminals
Settings
-
Settingwith potentiometers for setting the response brightness and delay time without dismantling
Scope of delivery
-
Componentwith fitting material
Equipment
-
Angle of horizontal detection360 °
Safety
-
Protection classisol.class II
Use conditions
-
Operating temperature-5…45 °C
